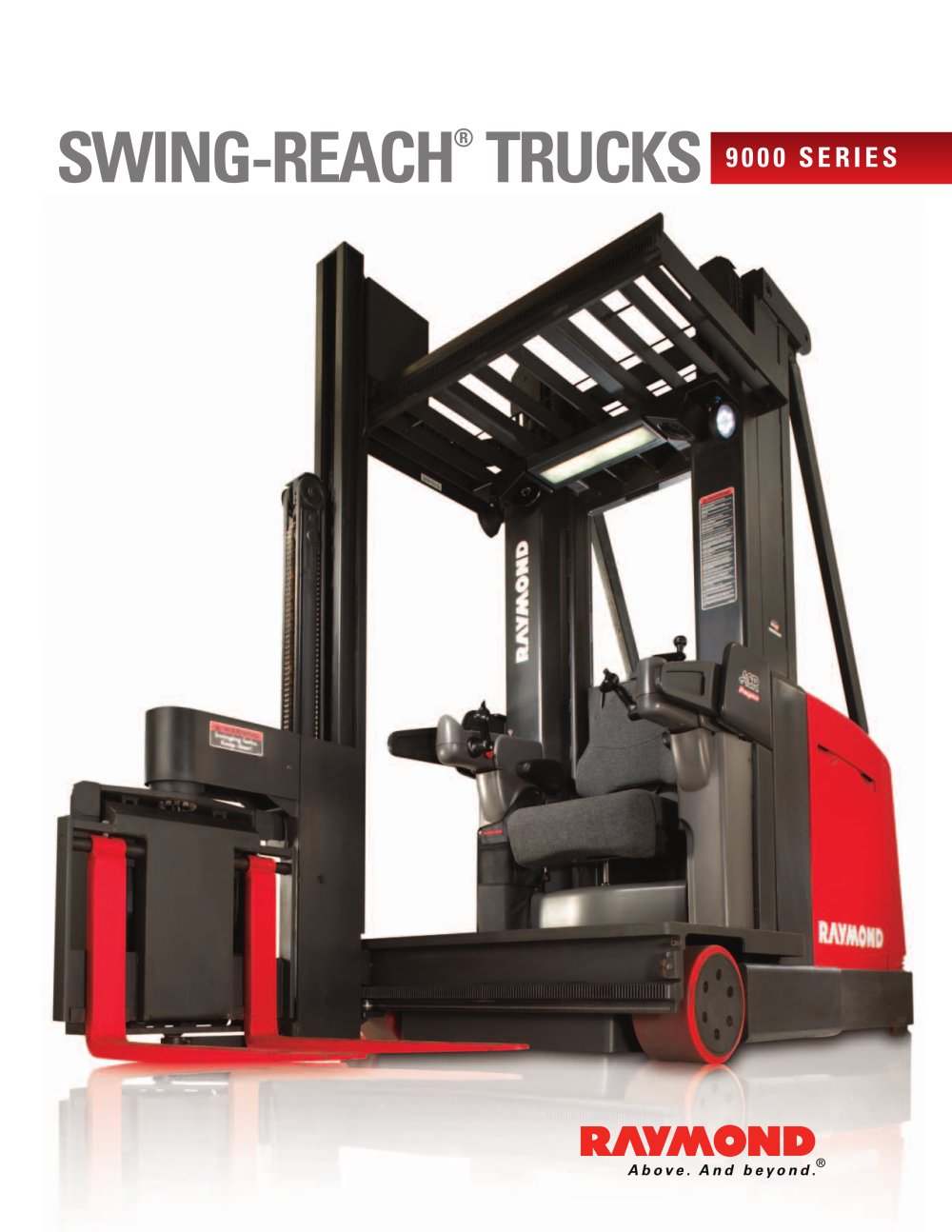

SWING-REACH TRUCKS

The Industry’s 1 Swing-Reach Truck More Raymond Swing-Reach trucks have been sold — and are still in operation in North America — than all other manufacturers combined. That’s an impressive feat, and there’s more than one good reason why. Ever since we introduced the Swing-Reach truck in 1974, we have designed it with a single priority in mind: provide our customers with the greatest possible return on their investment. Which is why our Very Narrow Aisle (VNA) truck is engineered to maximize usable warehouse space, provide efcient movement, increase maneuverability and deliver an improved ergonomic...

High Performance DNA Increases usable warehouse space up to 300% Pallet handling and case picking versatility Clear view mast design for unmatched visibility, with lift heights up to 45' Ergonomics that match operator’s natural motions Smooth hydraulics for high-precision load control Exclusive ACR System™ Regenerative lowering system returns 11% of energy directly back to the battery Patented no-tune wire-guided steering system Programmable performance The most advanced way to maximize storage capacity.

Expand Warehouse Capacity Up To 300% That’s right. 300%, with the highly versatile Raymond Swing-Reach lift truck. In today’s world, with usable warehouse space at a premium, the only way to maximize your storage capacity and your prots is to go higher and narrower. Which is exactly why we engineer all of our Swing-Reach trucks to reach up to a full 45' high, maneuver through aisles only 66" narrow, and move loads up to 3000 lbs. The result for you is immediate: increase pallet capacity up to 3-times — all within the same warehouse footprint. Storage Per 10,000 Square Feet Of Warehouse Space...

Pallet Handling And Case Picking Capability In One Truck A variety of driving positions encourages movement within the operator’s compartment. Whether you are storing pallet loads, picking cases or transporting loads, you can choose the best position for the task to enhance productivity and comfort. To improve case picking functionality, Raymond enables you to raise the sidegates and control arms to create a generous case-picking window for even greater versatility.

Intelligent Design For Increased Protability When it comes to VNA innovation, Raymond’s unmatched mast visibility and a proven track record of reducing energy consumption are second to none. Since Raymond introduced the Swing-Reach truck and VNA concept in 1974, we have continued to engineer trucks that lead the industry in productivity, durability, ergonomics and lowest total cost of ownership. Guided by the unyielding materials handling principle of doing everything better, smarter and faster, we are uniquely committed to our customers’ success, and prove it every day with the dynamic strides...

Increased Efciencies And Maneuverability The Raymond Swing-Reach truck provides smooth hydraulics controls that enable precise load handling for less product damage and increased productivity in very narrow aisles. Fine positioning and control of the lift travel and load handling also provides better control of the load making the operator more efcient. To accommodate operator skill levels and other variables, the Swing-Reach is fully programmable so you can custom-congure travel speeds and acceleration / deceleration rates for the travel, lift, lower and load handler. And when it comes to acceleration...

Customized Solutions Engineered To Improve Productivity No matter what warehouse or distribution center application you use your Raymond Swing-Reach truck for, the end result will be the same: an immediate increase in productivity. That is because every single aspect is engineered to enhance your ability to move more loads better, faster and smarter. Its overall ergonomics and clear view mast provides unmatched visibility for your operators. The Raymond Swing-Reach has all of your needs covered, including greater acceleration speeds, wire guidance availability and built-in versatility for case...

Intuitive Operator Interface And Control Handle Engineered to provide the control and information your operators need to excel. View speed, load height, load weight, fork position, wire guidance status, tire direction, battery state, and other important operational data. Exclusive Clear View Mast Design For Unobstructed Visibility No longer will your operators have to crane their necks and bodies to see all around the aisles and up the racks. Raymond’s clear view mast design provides the only unobstructed mast visibility in the industry, and ensures a superior and more productive driving experience...

The Most Advanced Way To Optimize Fleet Management: iWarehouse ™ Reach new levels of performance and efciency with the revolutionary Raymond iWarehouse eet optimization system, a suite of electronic diagnostic tools that puts critical, real-time information about each and every truck you own, right on your computer desktop. Designed with an intuitive interface and information display, iWarehouse enables you to take 360-degree control of truck and operator efciencies, including the ability to: Increase operator productivity Reduce eet size Decrease operating costs Analyze truck utilization and...

Anytime, Anywhere Management Conrm Daily Service Inspections iVerify™ helps ensure that operators complete daily maintenance reviews before starting a shift — and lets you “lock out” trucks with critical issues. Immediately Identify An Impact iImpact™ noties you automatically if a truck strikes a wall, a rack or another vehicle. iTrack™ lets you manage your entire eet or just one truck, through a personalized Web portal, linked directly to the Raymond databank. You can enter service orders in seconds, schedule maintenance by facility or by truck, track parts and labor by truck serial number,...

Elevating Service And Support To A Science Companies in every major industry segment have partnered with Raymond because we create the precision solutions necessary to support their lift truck, productivity and nancial goals. With over 6,000 employees, including some 4,500 at sales and service centers serving you with consistent effort, enthusiasm and high quality. And with over 200,000 trucks in operation, 100,000+ on service contracts maintained by more than 2,200 factory-certied technicians, and over 12,000 rental and demo trucks available at any time, you know Raymond has all of your needs...
