TR35

Product catalog summary

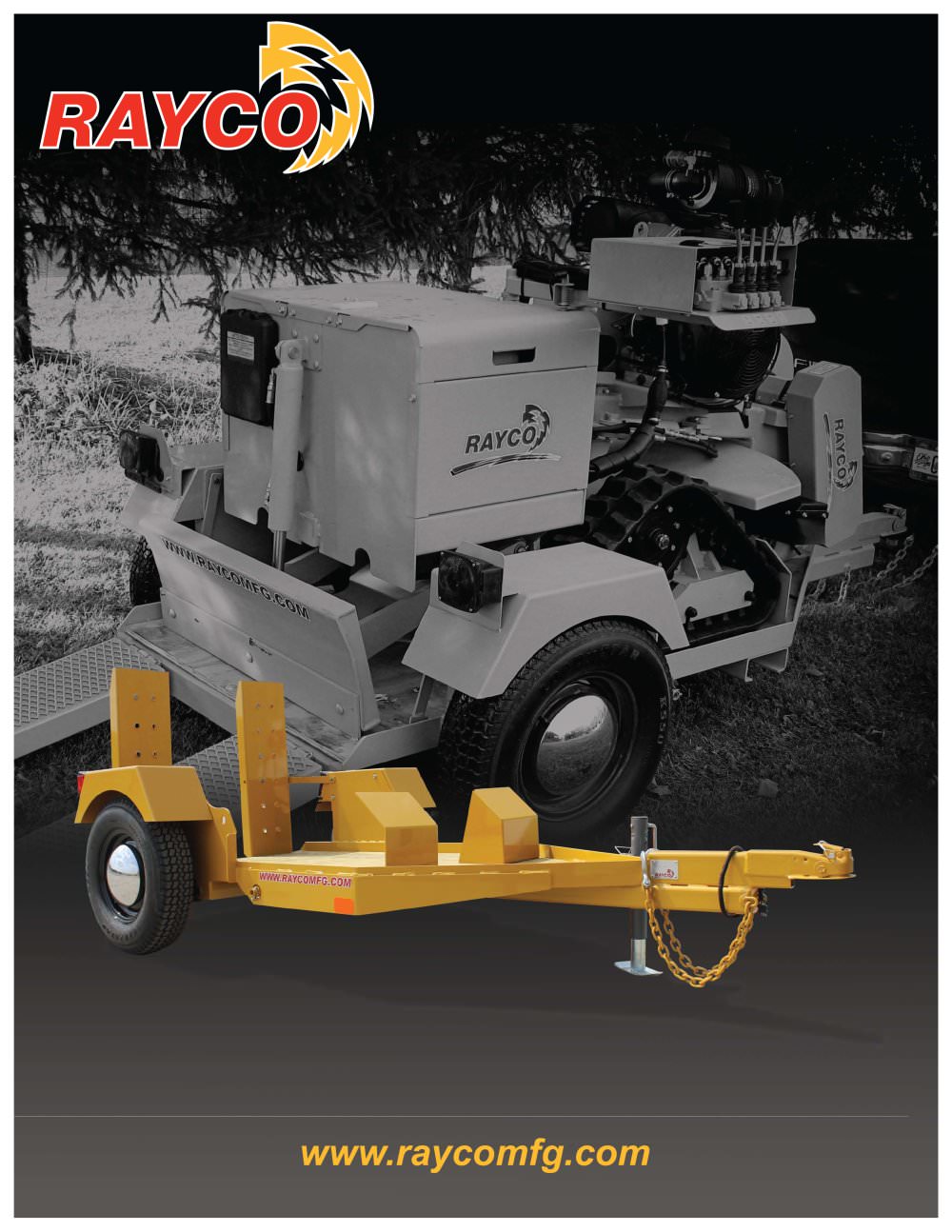

Overview: The document provides specifications and features of the TR35 trailer, designed by RAYCO Manufacturing Inc. to carry the RG1635 Trac Jr stump cutter. It highlights the trailer's design, safety features, and technical specifications.

Specifications:

Weight and Dimensions: The trailer weighs 660 lb (299.4 kg) with a length of 98” (248.9 cm) with ramps up, width of 62” (157.5 cm) outside fenders, and height of 28.5” (72.4 cm) to the top of the fender and 49.5” (125.7 cm) to the top of the ramp.
Capacity: The Gross Vehicle Weight Rating (GVWR) is 2,960 lb (1342.6 kg), including the trailer weight and RG 1635TJR. Each tire has a maximum capacity of 1480 lb (671 kg) at 50 psi.
Axle and Wheels: Equipped with a 3,500 lbs Torflex® axle and 13” wheels with 5 1/2” lug bolts on a 4.5” bolt circle.
Lighting: Includes right and left tail lights and license plate lighting, all DOT approved.
Hitch and Jack: Features a 2” ball coupler with safety chains and hooks, and a 2,000 lb hand crank jack with an optional wheel.

Features:

Design: The trailer is designed for easy loading and securing of the stump cutter using a single rod assembly, eliminating the need for chains and binders.
Construction: It features electrostatic powder coating, a treated wooden deck, Torflex® suspension axle, and skid-resistant ramps.
Professional Appearance: The matched machine and trailer combination provides a professional appearance for the company.

Additional Information: RAYCO Manufacturing Inc. reserves the right to make changes to the design and specifications without notice. The document also includes contact information for RAYCO Manufacturing Inc.

Catalog excerpts

CALL TOLL FREE 800.392.2686 (USA or Canada Only) OR VISIT www.raycomfg.com TR35 Trailer Weight Length Width Height GVWR Wheels Axle Lighting Hitch Jack Stand 660 Ib (299.4 kg) 98" (248.9 cm) with ramps up 62" (157.5 cm) outside fenders 28.5" (72.4 cm) to top of fender 49.5" (125.7cm) to top of ramp 2,960 Ib (1342.6 kg) - Trailer weight plus RG 1635TJR 13" (5) 1/2" lug bolts on 4.5" B.C. Max capacity per tire 1480 lb (671 kg) at 50 psi Highway speed approved 3,500 lbs Torflex® Right and left tail lights License plate lighting DOT approved 2" ball coupler with safety chains and hooks 2,000 lb hand...
