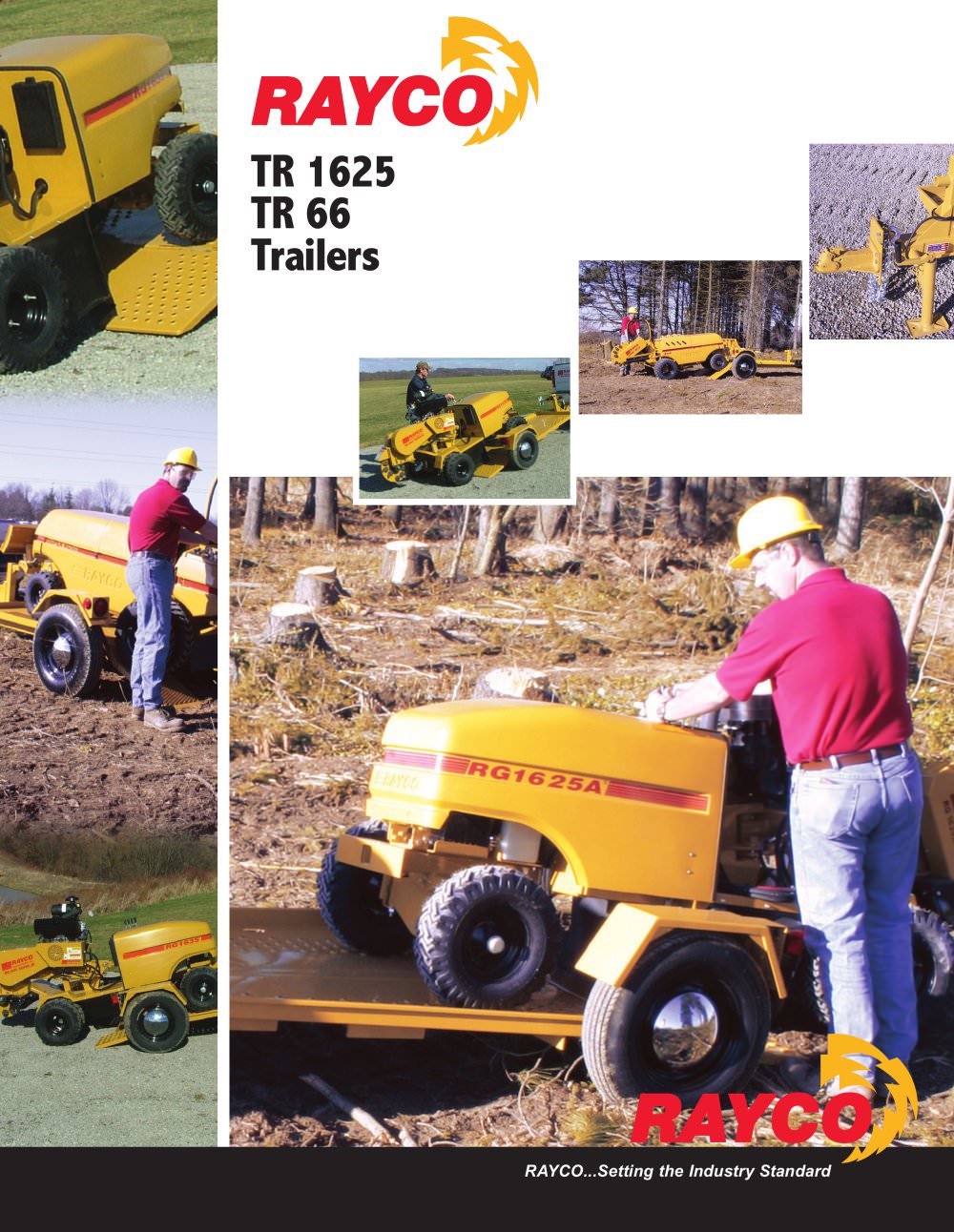

TR1625 & TR66
1 / 2 PagesView full catalog
TR1625 & TR66
Product catalog summary
Overview
The brochure provides detailed specifications for two RAYCO trailers, the TR 1625 and TR 66, designed for transporting various RAYCO stump cutters. Both trailers feature a single pin assembly for securing equipment, electrostatic powder coat paint, and skid-resistant decks and ramps.
The brochure provides detailed specifications for two RAYCO trailers, the TR 1625 and TR 66, designed for transporting various RAYCO stump cutters. Both trailers feature a single pin assembly for securing equipment, electrostatic powder coat paint, and skid-resistant decks and ramps.
TR 1625 Trailer Specifications
- Designed for RG 1625A Super JR, RG 1635 Super JR, and Mini Work-Force stump cutters.
- Weight: 490 lbs (222 kg)
- Dimensions: Length 127 inches, Width 74 inches, Height 25 inches
- GVWR: 1790 lbs
- Wheels: ST185/80-13 with a max capacity of 1480 lbs per tire
- Lighting: DOT approved tail and license plate lights
- Electrical: 12V with a 6-pin plug
- Hitch: 2” ball coupler with optional pintle hitch
- Optional tow package for Mini Work-Force units
TR 66 Trailer Specifications
- Designed for RG 50, Super RG 50, and RG 90 stump cutters.
- Weight: 947 lbs (430 kg)
- Dimensions: Length 144 inches, Width 79 inches, Height 35 inches
- GVWR: 4207 lbs
- Wheels: 700-15 with a max capacity of 2156 lbs per tire
- Axle: Single Dexter Torflex with a 3500 lb rating
- Lighting: DOT approved tail, license plate, and side marker lights
- Electrical: 12V with a 7 male blade connector
- Brake System: 10x2.25 electrical with breakaway safety switch
- Hitch: 2” ball coupler with optional pintle hitch
Additional Features
- Both trailers are highway speed approved.
- TR 66 includes a mounted toolbox and electric brakes.
- Both trailers are made in the USA.
See more
Catalog excerpts
TR 1625 Trailer The TR 1625 Trailer is designed to haul the RG 1625A Super JR, the RG 1635 Super JR and the Mini Work-Force line of Handle Bar Stump Cutters. The single pin assembly on the front of the trailer secures the Self-Propelled Stump machines in seconds. An optional tow package securely locks the Mini Work-Force units to the trailer. Standard features include electrostatic powder coat paint, and skid resistant deck and ramps. General Spcifications: Weight 490 lbs 222 kg Length 127 inches with ramps up 323 cm with ramps up Width 74 inches outside fenders 188 cm outside fenders Height...
