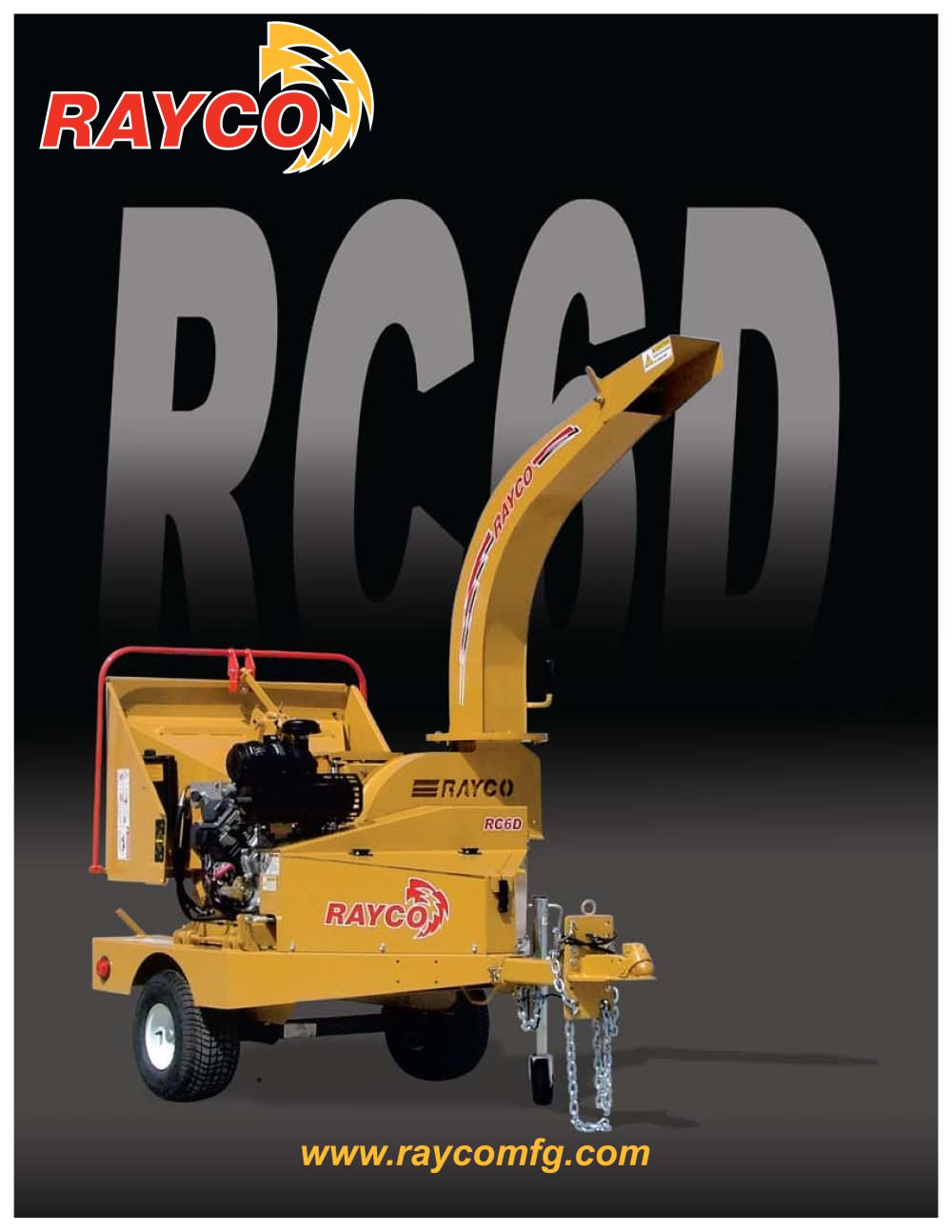

RC6D & RC6DV

1 / 2 PagesView full catalog

RC6D & RC6DV

Product catalog summary

Specifications:

Weight: RC6D: 1,960 lb (889 kg), RC6DV: 2,160 lb (980 kg)
Dimensions: Length: 102” (259 cm), Height: 94” (239 cm), Width: 52.5” (133 cm)
Engine: RC6D: Kohler 25 hp (18.6 kW), RC6DV: Briggs & Stratton Vanguard 35 hp (26 kW)
Fuel Tank Capacity: 7.6 gal (29 L)
Chipping Capacity: 6” diameter (15 cm)
In-Feed Opening: 6” x 6” (15 cm x 15 cm)
Intake Rate: 0 fpm to 180 fpm (55 m/min)
Discharge Height: 94” (239 cm)
Rotation: 360°
Feed Wheel Diameter: 8” (20 cm)

Company Information:

RAYCO Manufacturing, Inc., 4255 E Lincoln Way, Wooster, Ohio 44691-8601 USA
Phone: 330.264.8699, Fax: 330.264.3697
Website: www.raycomfg.com
Toll-Free: 800.392.2686 (USA or Canada Only)

Additional Notes:

RAYCO Manufacturing Inc. reserves the right to make changes in design and specifications without notice.
Document Reference: BC-201TS-03/10 (replaces BC-201TS-10/09)
Made and Printed in the USA
Copyright © 2009 RAYCO Manufacturing, Inc.

Catalog excerpts

CALL TOLL FREE 800.392.2686 (USA or Canada Only) OR VISIT www.raycomfg.com RC6D & RC6DV Brush Chipper Weight RC6D 1,960 Ib (889 kg) RC6DV 2,160 Ib (980 kg) Length 102" (259 cm) Height 94" (239 cm) Width 52.5" (133 cm) Engine RC6D Kohler 25 hp (18.6 kW) RC6DV Briggs & Stratton Vanguard 35 hp (26 kW) Fuel Tank 7.6 gal (29 L) Chipping Capacity 6" diameter (15 cm) In-Feed Opening 6" x 6" (15 cm x 15 cm) Intake Rate 0 fpm to 180 fpm (55 m/min) Discharge Height 94" (239 cm) Rotation 360° Feed Wheel Diameter 8" (20 cm) RAYCO Manufacturing, Inc. 4255 E Lincoln Way Wooster, Ohio 44691-8601 USA Phone:...
