RC1220

RC1220
1 / 2 PagesView full catalog

RC1220

Product catalog summary

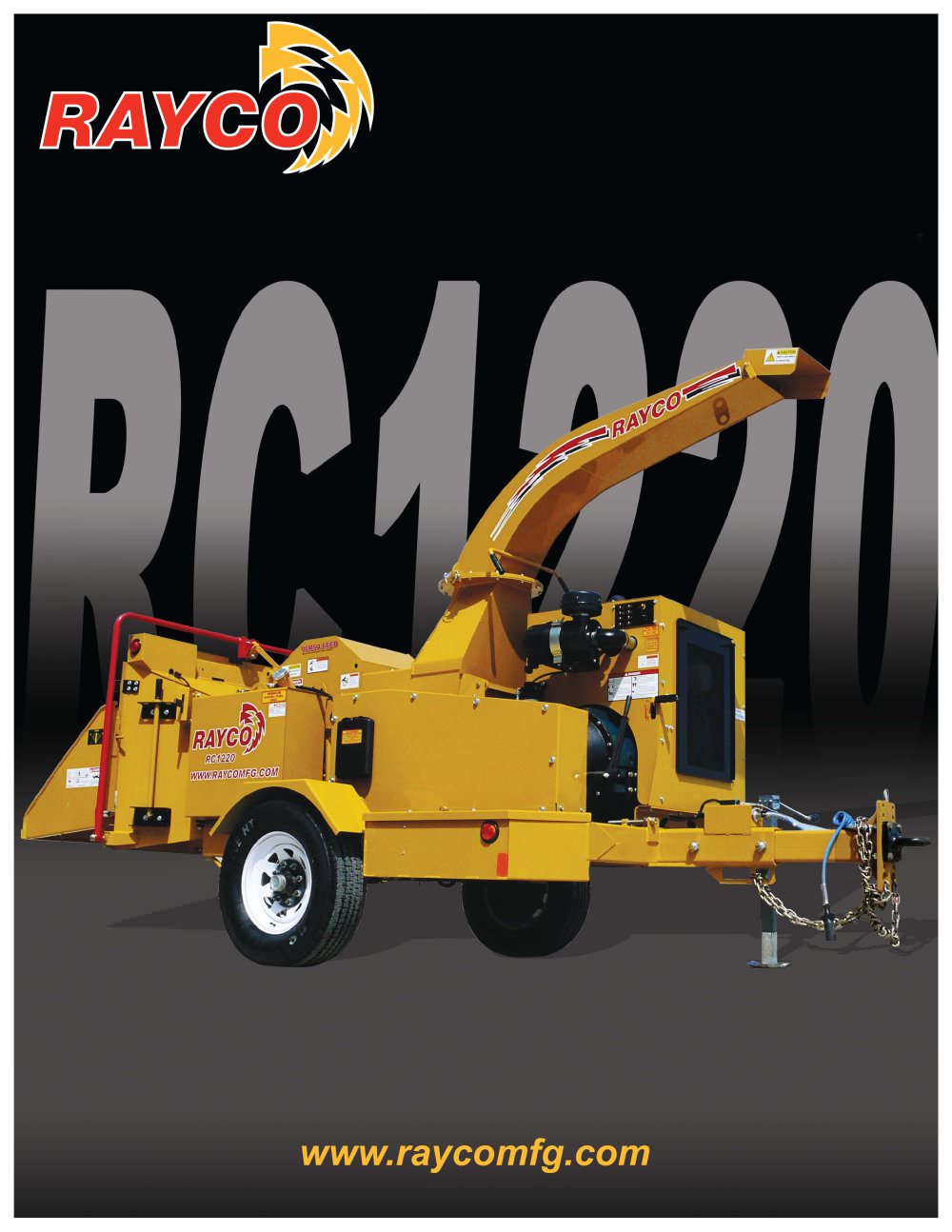

Product Overview: The RC1220 is a high-performance 12-inch capacity brush chipper designed for professional use. It features a Hi-velocity Discharge System and is powered by Kubota diesel engines, available in 66.8 hp or 99.2 hp options. The chipper includes RAYCO's Versa-Feed infeed control and a unique X-Charge discharge system to prevent plugging under demanding conditions.
Specifications:
  • Weight: 5,620 lb (2,549.2 kg)
  • Length: 160” / 188” (406.4 cm / 477.52 cm)
  • Height: 105” (619.8 cm)
  • Width: 78” (198 cm)
  • Engine Options:
    • RC1220-70: Kubota V3600, 66.8 hp (49.8 kW), Diesel
    • RC1220-100: Kubota V3800DI, 99.2 hp (74 kW), Turbo Diesel
  • Fuel Tank Capacity: 30 gal (113.56 L)
  • Chipping Capacity: 12” Diameter (30 cm)
  • In-feed Opening: 12” x 20” (30.48 cm x 50.8 cm)
  • Intake Rate: 100 fpm (30.48 m/min)
  • Discharge Height: 112” (284.5 cm)
  • Rotation: 360°
  • Feed Wheel Diameter: 20” (50.8 cm)
Design Features: The RC1220 is designed with a 20” diameter feed wheel and a 12” high x 20” wide infeed opening to handle stubborn materials easily. It includes a virtually maintenance-free planetary feed wheel drive motor, feed wheel lift and crush handles on both sides, a rugged frame built from 2”x6” box tubing, and a lockable engine enclosure.
Manufacturer Information: RAYCO Manufacturing, Inc. is located at 4255 E Lincoln Way, Wooster, Ohio 44691-8601 USA. For more information, visit their website at www.raycomfg.com or call toll-free at 800.392.2686 (USA or Canada only).
See more

Catalog excerpts

RC1220-2

CALL TOLL FREE 800.392.2686 (USA or Canada Only) OR VISIT www.raycomfg.com RC1220 12" Brush Chipper Weight Length Height Width Engine RC1220-70 RC1220-100 Fuel Tank Chipping Capacity In-feed opening Intake Rate Discharge Height Rotation Feed Wheel Diameter 5,620 Ib (2,549.2 kg) 160" / 188" (406.4 cm /477.52cm) 105" (619.8 cm) 78" (198 cm) Kubota V3600, 66.8 hp (49.8 kW), Diesel Kubota V3800DI, 99.2 hp (74 kW), Turbo Diesel 30 gal (113.56 L) 12" Diameter (30 cm) 12" x 20" (30.48 cm x 50.8 cm) 100 fpm (30.48 m/min) 112" (284.5 cm) 360° 20" (50.8 cm) Hi-velocity Discharge System The RC1220 delivers...
