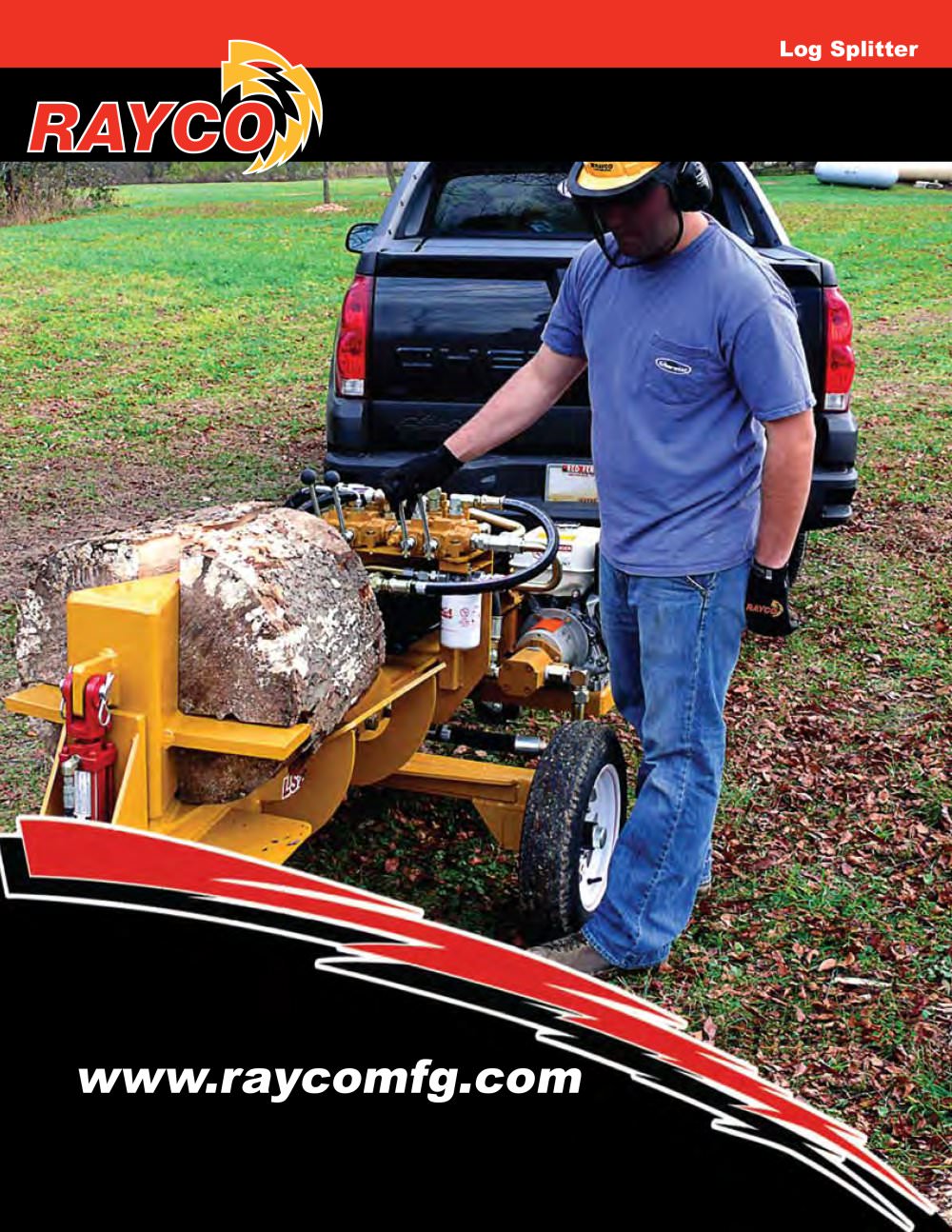

Log Splitter LS2526

Product catalog summary

Overview: The LS 2526 is a robust, commercial-grade log splitter designed for heavy-duty use. It is equipped with a 13 hp Honda engine and can exert a splitting force of 25 tons, making it capable of handling logs up to 26 inches in length.

Specifications:

Weight: 1,100 lb (499 kg)
Dimensions: Length 102” (259.1 cm), Height 44” (111.8 cm), Width 59” (149.9 cm)
Engine: Honda 13 hp (9.7 kW)
Fuel Capacity: 1.72 gal (6.5 L)
Cutting Options: 4-way for 24” logs, 1-way for 26” logs
Beam: 8” (20.3 cm)
Ram: 2” rod x 5” bore (5.1 cm x 12.7 cm)
Cycle Time: 10 seconds
Flow Rate: 22 gpm (83.3 L/min)
Pressure: 2,500 psi (17,237 kPa)
Tonnage: 25 tons (22,680 kg)
Hydraulic Capacity: 14 gal (53 L)
Towing Coupler: 2” (5.1 cm) ball

Additional Information: The LS 2526 features a 600 lb log lift to assist with large diameter wood. RAYCO Manufacturing Inc. reserves the right to modify specifications and design without prior notice. For more information, contact RAYCO Manufacturing Inc. at their toll-free number or visit their website.

Catalog excerpts

General Specifications:Weight 1,100 lb (499 kg) Length 102 (259.1 cm) Height 44Ԕ (111.8 cm) Width 59 (149.9 cm) Engine Honda 13 hp (9.7 kW) Fuel 1.72 gal (6.5 L) > Cutting 4-way, 1-way Log Length 24 4-way, 26Ԕ 1-way (61 cm, 66 cm) Beam 8 (20.3 cm) Ram 2Ԕ rod x 5 bore (5.1 cm x 12.7 cm) Cycle Time 10 seconds, total Flow 22 gpm (83.3 L/min) Pressure 2,500 psi (17,237 kPa) Tonnage 25 tons (22,680 kg) Hyd. Capacity 14 gal (53 L) Towing Coupler 2Ԕ (5.1 cm) ball > LS-101-02/08Made and Printed in the USA Copyright 2008 RAYCO Manufacturing, Inc., Wooster, OH 44691 RAYCO Manufacturing Inc. retains the...
