Horizontal Grinder RH1754

Product catalog summary

Introduction
The document provides technical specifications and features of the RAYCO RH1754 Horizontal Grinder, a compact and affordable machine designed for small contractors. It emphasizes safety and operational guidelines for users.

Specifications

Weight: 14,500 lb (6,577.09 kg)
Height: 115” (292.1 cm)
Length: 330” (838.2 cm)
Width: 90” (228.6 cm)
Engine: John Deere, 140 hp (104.4 kW)
Discharge Conveyor Height: 104” (264.2 cm)
Infeed Conveyor Length: 98” (248.9 cm)
Infeed Opening: 17” x 54” (43.2 x 137.2 cm)
Fuel Capacity: 80 gal (302.8 L)
Hydraulic Oil Capacity: 40 gal (151.4 L)
Axle: 2- 8,000 lbs (3628.7 kg) each, Torflex with Electric Brakes

Features

Compact design for easy transportation and operation on small job sites.
Capable of grinding various wood waste materials, including tree limbs, brush, sawmill waste, and pallets.
Equipped with a large radiator, removable debris screen, and reversing fan.
Emergency shutdown buttons on all corners for safety.
Torque limiter to minimize damage from high impacts.
Radio remote control and digital instrument display.
Quick screen changes with a swing-away fuel tank.
Long-life fixed-tooth hammermill.
Magnetic head pulley to separate nails and light metals.

Additional Information
The RH1754 can be towed by most 1-ton pick-ups and is highly productive across various applications. RAYCO Manufacturing reserves the right to make changes to the design and specifications without notice.

Contact Information
RAYCO Manufacturing, Inc.
4255 East Lincoln Way, Wooster, Ohio 44691-8601 USA
Phone: 330.264.8699
Fax: 330.264.3697
Website: raycomfg.com
Call Toll-Free: 800.392.2686 (USA or Canada Only)

Catalog excerpts

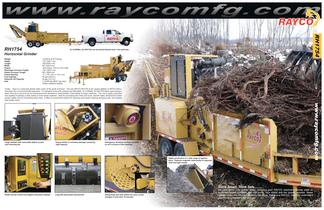

At 14,500lbs, the RH1754 can be towed behind most 1-ton pick-ups. > Weight 14,500 lb (6,577.09 kg) Height 115 (292.1 cm) Length 330Ԕ (838.2 cm) Width 90 (228.6 cm) Engine John Deere, 140 hp (104.4 kW) Discharge Conveyor Height 104Ԕ (264.2 cm) Infeed Conveyor Length 98 (248.9 cm) Infeed Opening 17Ԕ x 54 (43.2 x 137.2 cm) Fuel Capacity 80 gal (302.8 L) Hydraulic Oil Capacity 40 gal (151.4 L) Axle 2- 8,000 lbs (3628.7 kg) each, Torԯ̂ex w/Electric Brakes Finally there is a horizontal grinder within reach of the small contractor. The new RAYCO RH1754 is the newest addition to RAYCO Manu-facturingŒs...

Open the catalog to page 2

RH-401-02/09 (replaces RH-401-01/09)Made and Printed in the USA Copyright 2009 RAYCO Manufacturing, Inc., Wooster, OH 44691 > RAYCO Manufacturing Inc. retains the right to make changes in design and speciɯ́cations; engineering; add or remove features; add improvements; or discontinue manufacturing at any time without notice or obligation. size="-1">

Open the catalog to page 3
