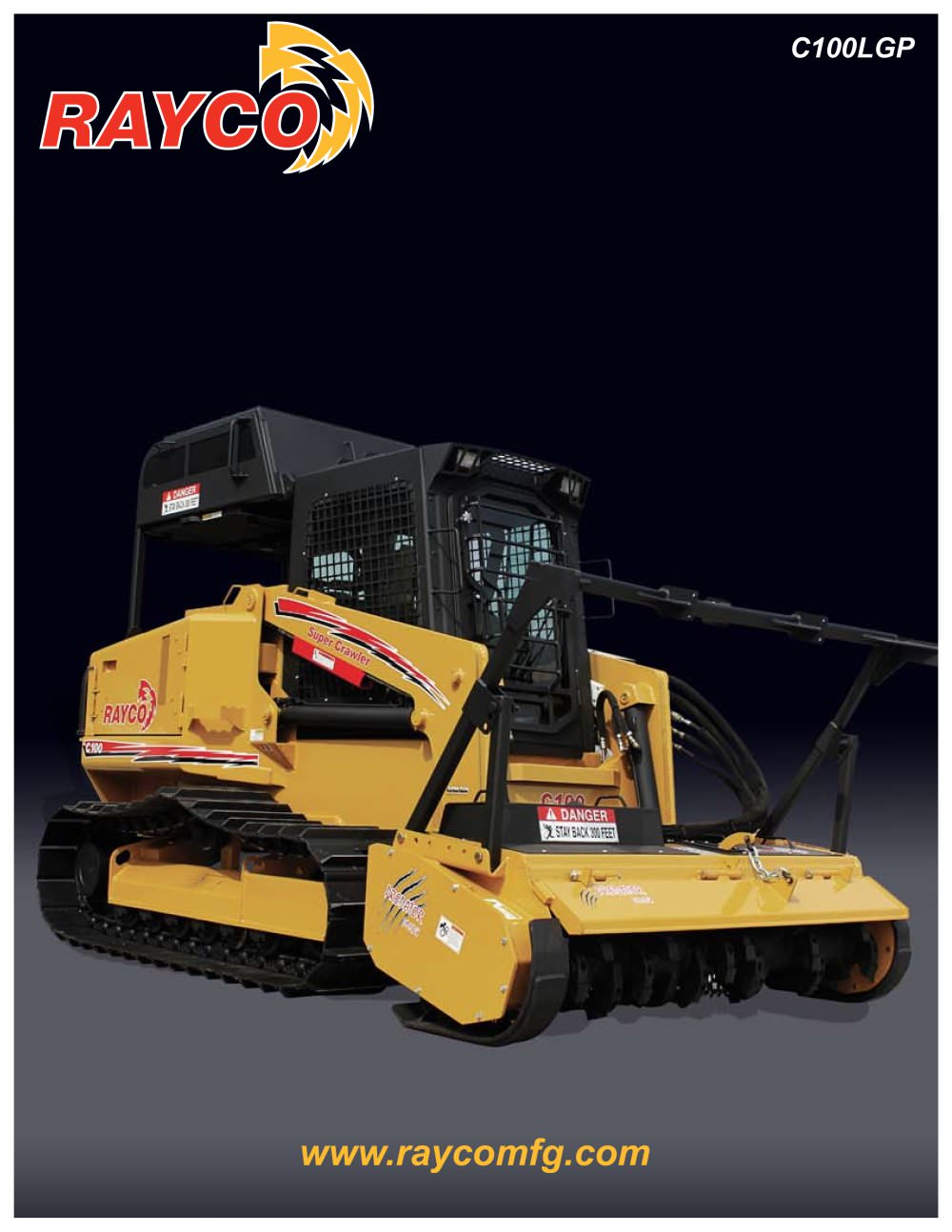

C100LGP

Product catalog summary

Overview: The document provides preliminary specifications for the Rayco C100-LGP Crawler/Forestry Mower, highlighting its design, features, and technical specifications. It emphasizes the machine's purpose-built nature for forestry work, offering enhanced performance and durability.

Specifications:

Weight and Dimensions: The machine weighs 14,950 lb (6,781 kg) with the mulcher. It measures 185” (469.9 cm) in length with the mulcher and 128” (325.12 cm) for the tractor only. The height is 104” (264.2 cm), and the width is 82” (208.2 cm) with the mulcher.
Engine and Fuel: Powered by a KUBOTA V3800, 4 Cylinder engine with 99.2 hp (73.97 kW), it uses diesel fuel with a capacity of 40 gal (151.4 L).
Hydraulic System: Features a high flow pump with 39 gpm @ 5,500 psi (147.6 L/min @ 37,921).
Travel Speed: Offers high/low travel speeds of 5.8 mph (9.3 km/h) and 3.3 mph (5.3 km/h) respectively.
Attachments: Compatible with PM638 Predator Mulching Head, Winch or Skidder Winch, and LG-1 Grapple Rake.
Cab Certification: Meets ROPS SAE J1040, FOPS SAE J231, OPS ISO 8084/WCB G603 standards.

Predator Mulcher:

Weight and Dimensions: Weighs 2,350 lb (1,066 kg) with a rotor diameter of 16.75” (42.55 cm) and a cutting width of 71.5” (182 cm).
Performance: Rotor speed is 2,200 rpm, driven by Gates® Polychain.

Features and Enhancements:

Heavy-duty undercarriage for low ground pressure and better traction.
Super Flow closed loop hydraulic system for maximized cutting power.
Heavy-duty forestry door and rooftop escape hatch for safety.
Additional features include 2-speed travel, elevated cooling system, hydraulic winch, hydrostatic cutter head drive, remote track tension system, and track tension monitor.

Conclusion: The Rayco C100LGP is designed for forestry professionals seeking a robust and efficient mulching solution. It offers superior performance compared to ordinary skid steer loaders, making it a valuable asset for forestry operations.

Catalog excerpts

CALL TOLL FREE 800.392.2686 (USA or Canada Only) OR VISIT www.raycomfg.com C1QQ-LGP Crawler / Forestry Mov/er Preliminary Spcifications Weight With Muletier LengthWithMulcher Length Tractor Only Height Width With MuJcher Wdtti Tractor Only Engine Fuel Hydraulic Tank Track Shoe Hydraulic System Ground Press W/Mulcher Travel Speed High / Low Ray co Attachments Cab Certification Meets Predator Mulcher Weight Rotor Diameter Rotor SpMd Drive Belt OveraH Wldth Cutting Width Teeth 14,950 Ib {6,781 kg) 185' (469 9 cm) 128* (325 12 cm) 104" (264 2 cm) BT (208 2 cm) 90* (203 2 cm) KUBOTAV3600,4 Cylinder,...
