Catalog excerpts

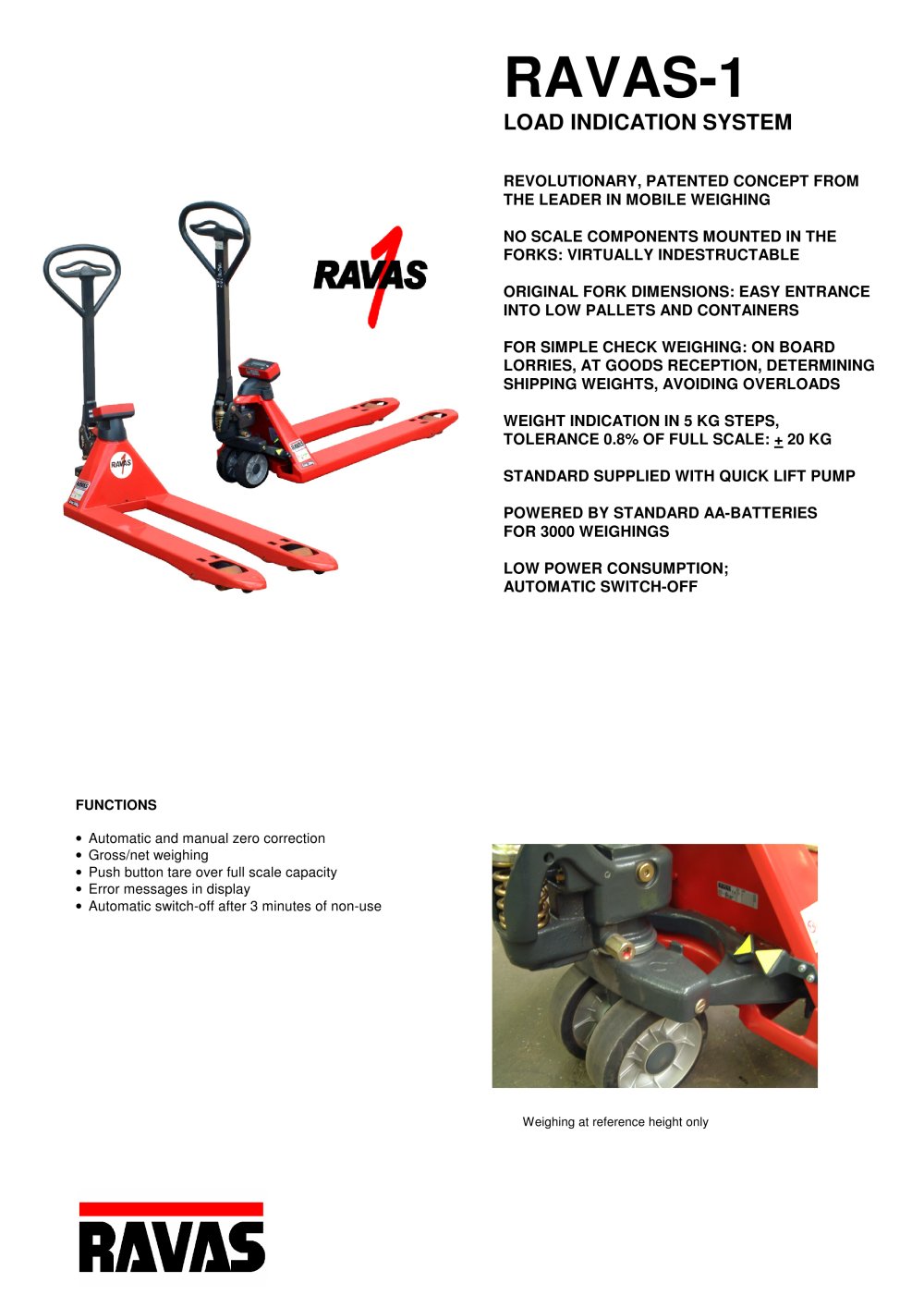

FUNCTIONS Automatic and manual zero correction Օ Gross/net weighing Push button tare over full scale capacity Օ Error messages in display Automatic switch-off after 3 minutes of non-use > Weighing at reference height only size="-1">
Open the catalog to page 1
Pump : quick lift STANDARD SPECIFICATIONS Weighing capacity : 2200 kg Tolerance : 0.8% of full scale Display : LCD, height 18 mm Keypad : tare key, on / off key Protection class : IP65 Steering wheels : rubber Loading wheels : polyurethane, single Colour : red (RAL 3000), epoxy painted Own weight : 58 kg Battery : 4 x 1.5V AA-batteries Battery life : 3000 on/off weighing cycles of three minutes: automatic switch-off after 3 minutes DIMENSIONS A Fork length : 1150 mm B Fork width : 150 mm C Minimum fork height : 83 mm Minimum space between floor and forks : 30 mm D Maximum fork height : 205...
