Forklift truck scales RCS

Forklift truck scales RCS
1Pages

Catalog excerpts

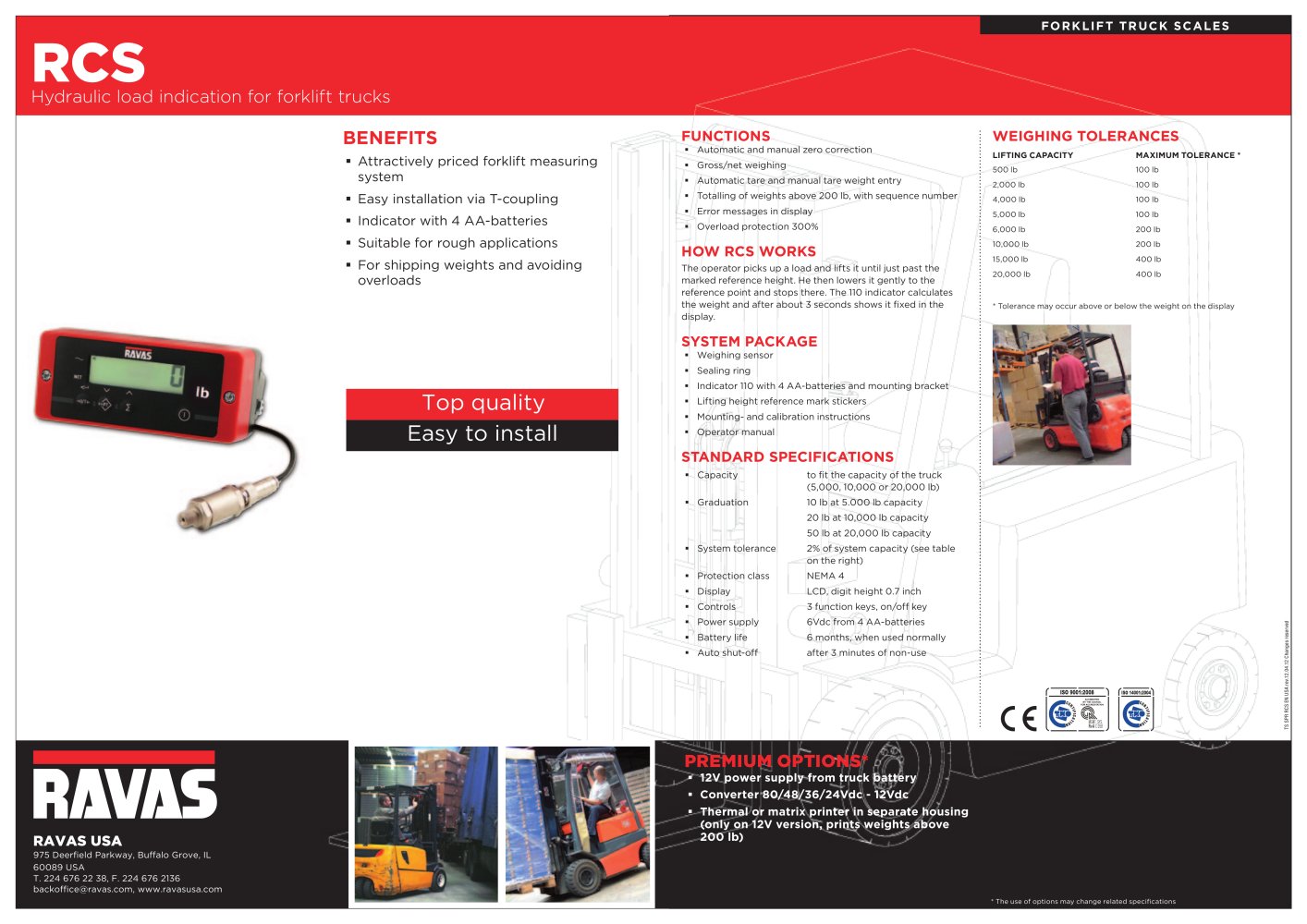

Hydraulic load indication for forklift trucks BENEFITS Attractively priced forklift measuring system Easy installation via T-coupling Indicator with 4 AA-batteries Suitable for rough applications For shipping weights and avoiding overloads WEIGHING TOLERANCES Automatic and manual zero correction LIFTING CAPACITY MAXIMUM TOLERANCE * Gross/net weighing Automatic tare and manual tare weight entry Totalling of weights above 200 lb, with sequence number Error messages in display HOW RCS WORKS The operator picks up a load and lifts it until just past the marked reference height. He then lowers it gently to the reference point and stops there. The 110 indicator calculates the weight and after about 3 seconds shows it xed in the display. * Tolerance may occur above or below the weight on the display SYSTEM PACKAGE Weighing sensor Sealing ring Top quality Easy to install Indicator 110 with 4 AA-batteries and mounting bracket Lifting height reference mark stickers Mounting- and calibration instructions Operator manual STANDARD SPECIFICATIONS Capacity 10 lb at 5.000 lb capacity 20 lb at 10,000 lb capacity 50 lb at 20,000 lb capacity 2% of system capacity (see table on the right) Protection class LCD, digit height 0.7 inch 3 function keys, on/off key Power supply Battery life 6 months, when used normally Auto shut-off after 3 minutes of non-use System tolerance PREMIUM OPTIONS* 12V power supply from truck battery Converter 80/48/36/24Vdc - 12Vdc Thermal or matrix printer in separate housing (only on 12V version, prints weights above 200 lb) 975 Deereld Parkway, Buffalo Grove, IL 60089 USA T. 224 676 22 38, F. 224 676 2136 backofce@ravas.com, www.ravasusa.com * The use of options may change related speci cations
