Overview

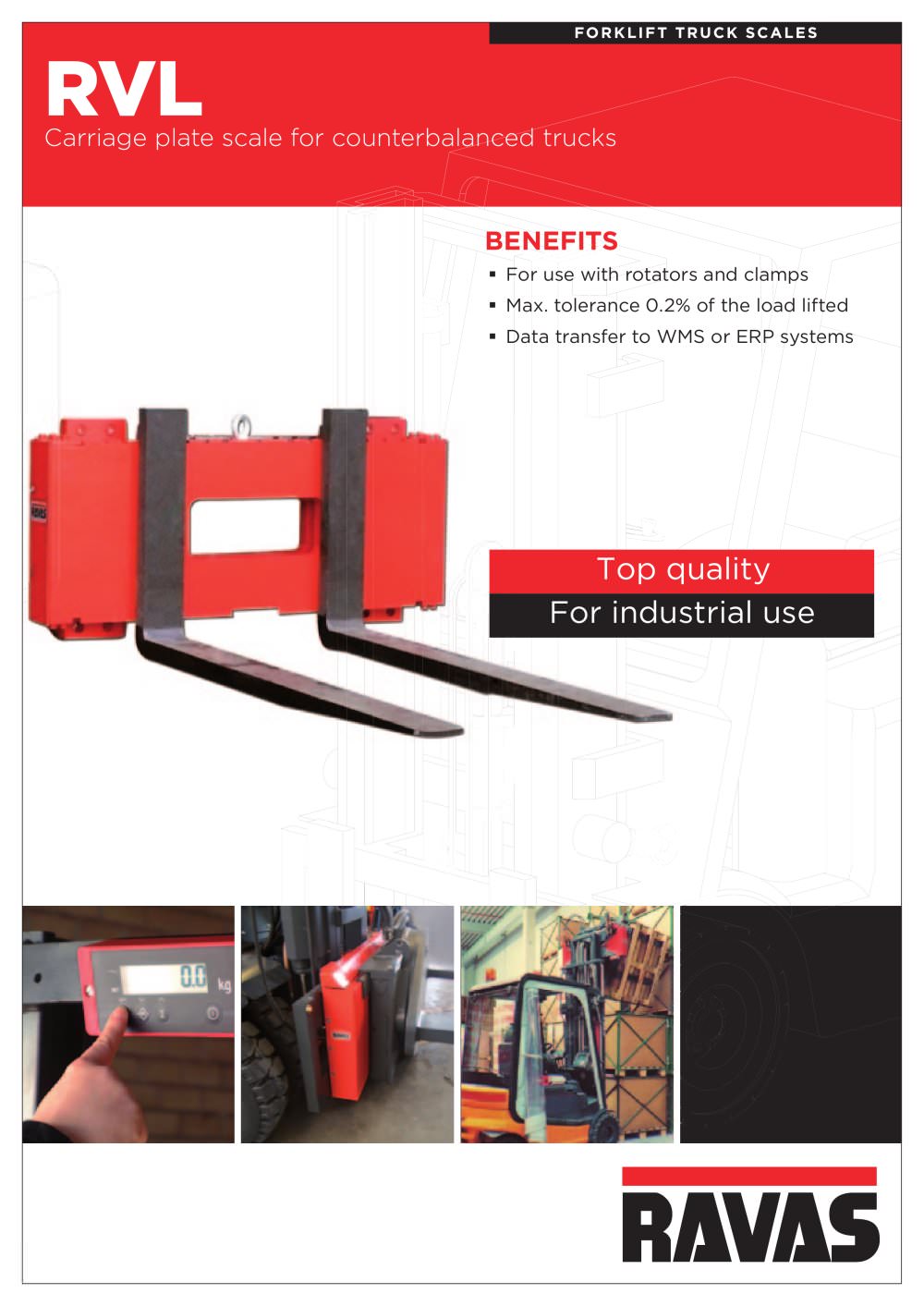

The document provides technical specifications and options for RVL forklift truck scales, designed for industrial use with counterbalanced trucks. These scales are suitable for data transfer to WMS or ERP systems and have a maximum tolerance of 0.2% of the load lifted. They are compatible with rotators and clamps.

Benefits
- High-quality construction for industrial applications.

Premium Options
- Explosion-proof version for hazardous areas (ATEX certified).
- Voltage converter options (80/48/36/24Vdc to 12Vdc).
- Customizable width.
- Legal for trade version (OIML III).
- Smaller display graduations.
- Wireless connection between RVL and cabin indicator.
- Integrated cabling over rolls in the mast.
- UniMobile/UniWin software for data capture and transfer.
- Thermal or matrix printer.

Functions
- Compatible with 2100, 4100, or 6100 weight indicators.
- Indicators are robust, shock-resistant, and suitable for mobile applications.
- Dust and waterproof (IP65 standard).
- Suitable for outdoor use.

Standard Specifications
- Powered by truck battery via regulator.
- Spiral cable cabling.
- Overload protection up to 200%.
- System tolerance of 0.2% of the load lifted.
- Capacity options: 2,500 kg, 5,000 kg, or 7,000 kg.
- Graduation: 2 kg at 2,500 kg capacity.
- Tolerances: +/- 2 mm.

Dimensions
- 2,500 kg: FEM2*
- 5,000 kg: FEM3*
- 7,000 kg: FEM4*
- Detailed dimensions provided for each capacity.

Contact Information
RAVAS UK Ltd, Maidenhead, Berkshire, United Kingdom.
Phone: +44 (0)1628 67 35 24
Email: [email protected]
Website: www.ravas.co.uk
