Overview

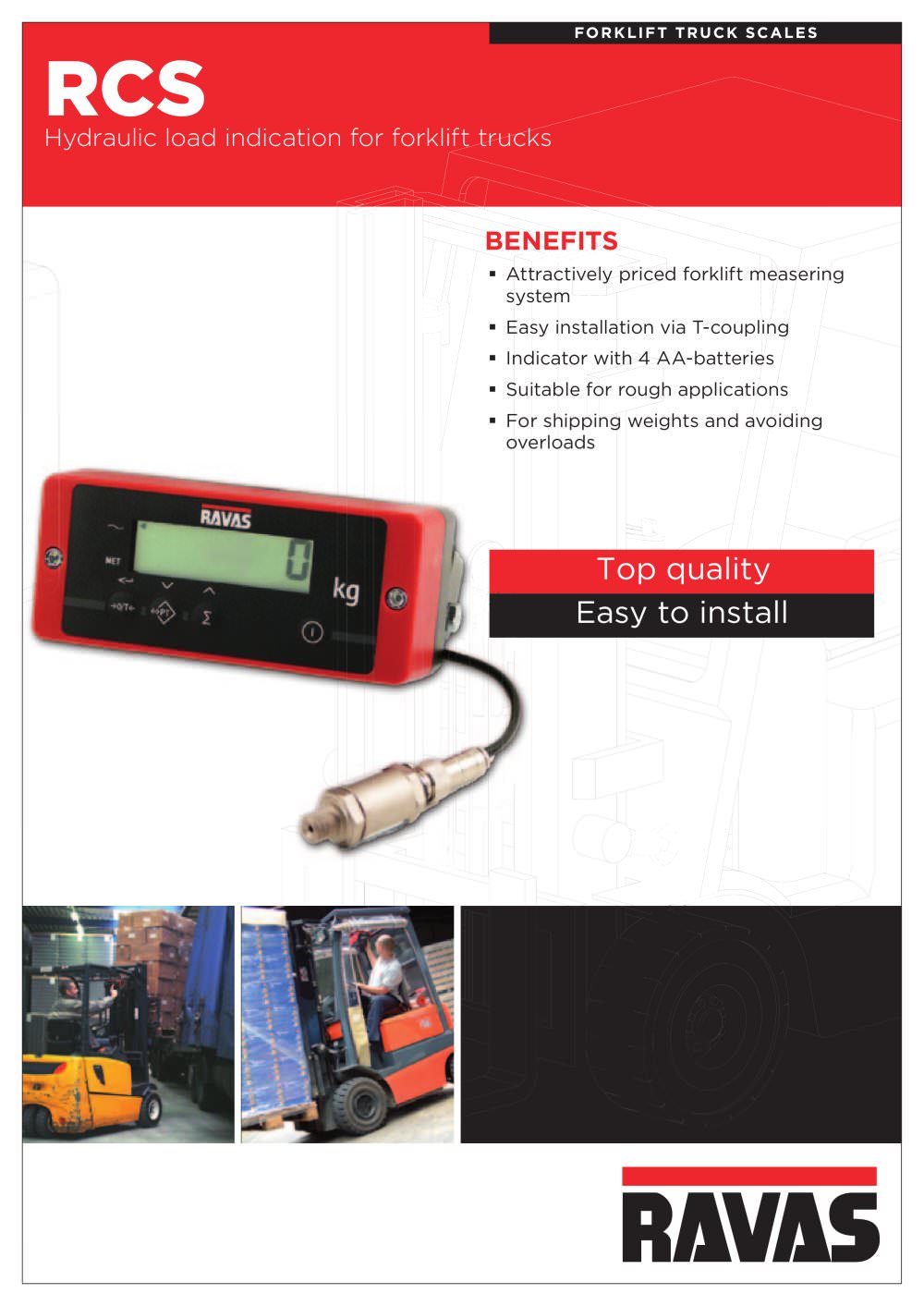

The document provides technical specifications and features of the RCS forklift truck scales, designed for hydraulic load indication. It highlights the benefits, functions, and options available for the system.

Specifications
- The system is powered by 4 AA-batteries, providing a 6Vdc power supply with a battery life of one year under normal use.
- It features an LCD display with an 18 mm digit height and a protection class of IP65.
- The system has a tolerance of 2% of its capacity, with specific tolerances outlined for different capacities.
- Auto shut-off occurs after 3 minutes of non-use.

Functions
- The system includes overload protection up to 300%, error messages, and totalling of weights above 200 kg.
- It supports automatic and manual tare weight entry, gross/net weighing, and zero correction.

Installation and Operation
- Easy installation is facilitated via a T-coupling, and the system includes an operator manual, mounting and calibration instructions, and necessary accessories.
- The operator lifts the load past a reference height, lowers it to a marked point, and the weight is calculated and displayed after 3 seconds.

Premium Options
- Options include a thermal or matrix printer for weights above 200 kg and a converter for different voltage inputs.

Benefits
- The system is noted for its top quality, ease of installation, and suitability for rough applications.

Contact Information
- RAVAS UK Ltd, Maidenhead, Berkshire, United Kingdom. Contact via phone or email for further information.
