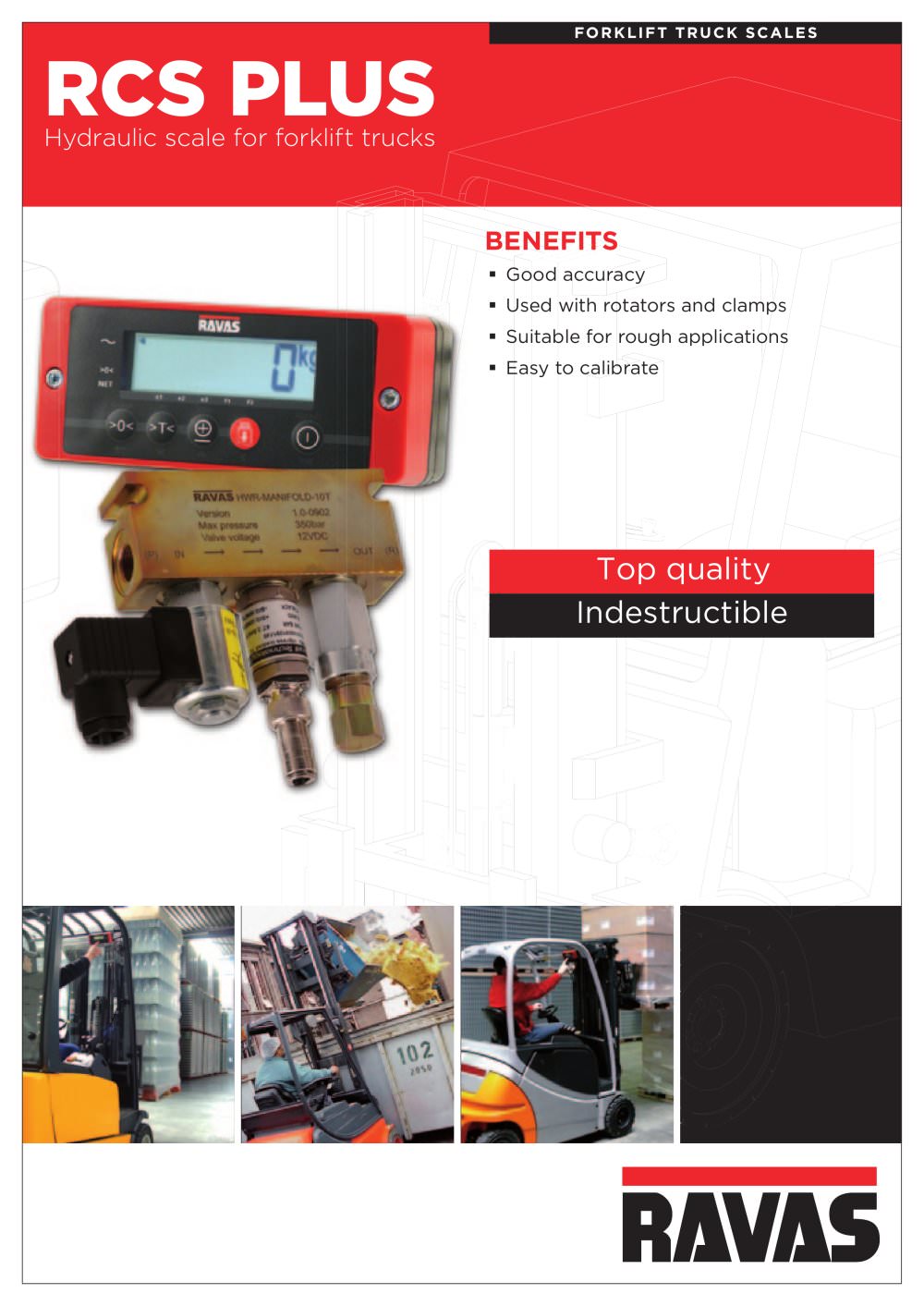

Overview: The RCS PLUS is a hydraulic scale designed for forklift trucks, offering easy calibration and suitability for rough applications. It is compatible with rotators and clamps, providing good accuracy.

Benefits: The scale is described as top quality and indestructible, with premium options available such as Bluetooth or WLAN output, thermal or matrix printer, and a high capacity hydraulic valve block for weights above 10,000 kg.

Functions: Key functions include error messages display, kg or lb readout, totalling with sequence number, code entry, manual tare entry, gross/net weighing, and manual zero correction.

Operation: The operator lifts the load to a reference height, presses a button, and the system calculates the weight during a controlled descent. The dynamic zero value reflects the oil pressure in the mast's hydraulic circuit, allowing for zero point drift correction.

System Package: Includes an operator manual, installation and calibration instructions, lifting height reference mark stickers, an indicator with mounting support, and a hydraulic valve block with an oil pressure sensor.

Standard Specifications: The system is powered by a 12Vdc truck battery, has an IP65 protection class, and features an LCD indicator with adjustable backlight. It offers a system tolerance of 0.2% of the scale capacity, with specific graduations and capacities outlined.

Usage Recommendations: To ensure accuracy, the truck mast should be in good condition, properly lubricated, and used correctly with the load centered on the forks.
