PadPak® AutoPad®
Product catalog summary
Overview

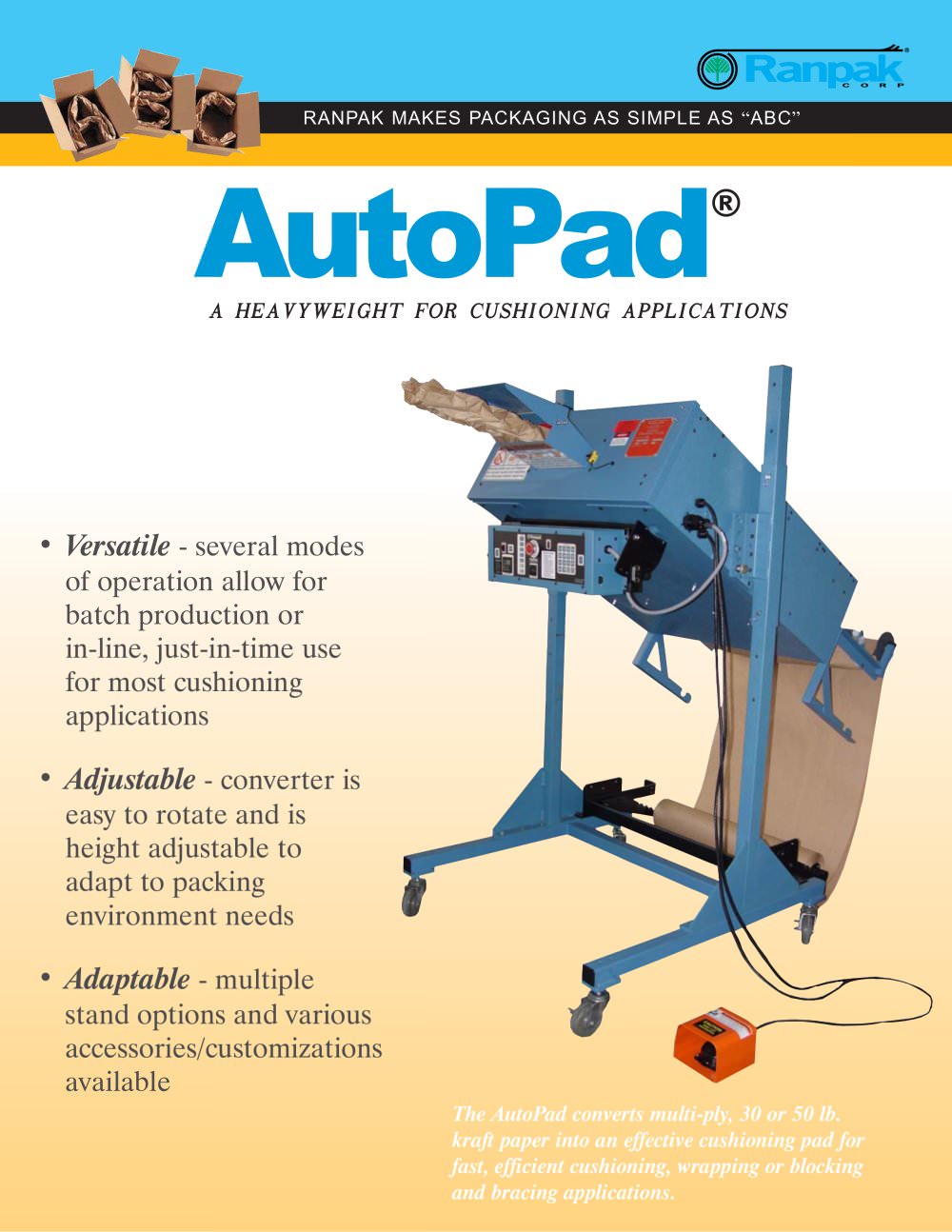

The AutoPad is a versatile machine designed to convert multi-ply kraft paper into cushioning pads for packaging applications. It supports fast and efficient cushioning, wrapping, blocking, and bracing.
Key Features
Specifications
Process
The process involves running rolls of multi-ply kraft paper through patented converters to generate cushioning pads, which are used to package and protect various products.
Contact Information
For inquiries, contact Ranpak Corp. at their Concord Township, OH address, or via telephone, toll-free number, facsimile, or email. More information is available on their website.
The AutoPad is a versatile machine designed to convert multi-ply kraft paper into cushioning pads for packaging applications. It supports fast and efficient cushioning, wrapping, blocking, and bracing.
Key Features
- Versatile Operation: Offers batch production or in-line, just-in-time use for various cushioning needs.
- Adjustable Design: The converter is rotatable and height-adjustable to fit different packing environments.
- Adaptability: Comes with multiple stand options and various accessories for customization.
Specifications
- Paper: Width of 30 inches, basis weight of 30 or 50 pounds, and roll lengths of 450, 900, or 1,350 feet.
- Pallet: Regular, double, and jumbo configurations with varying roll counts and dimensions.
- Converter: Measures approximately 12 inches in height, 34 inches in width, and 65 inches in depth, weighing 495 pounds. Operates on 120 VAC with a feed rate of 18 inches per second.
- Operation Modes: Includes foot pedal, automatic, EDS, and keypad controls.
Process
The process involves running rolls of multi-ply kraft paper through patented converters to generate cushioning pads, which are used to package and protect various products.
Contact Information
For inquiries, contact Ranpak Corp. at their Concord Township, OH address, or via telephone, toll-free number, facsimile, or email. More information is available on their website.
See more
Catalog excerpts
OPERATION > Packing Height27-67" (chute height) Operating ModesFoot PedalAutomatic EDS Keypad > PAPER CONVERTER (approximate measurements)* Width30" Basis Weight30 or 50 pounds Height**12" Width**34" Depth**65" Weight495 pounds Power120 VAC Feed Rate18 inches per second ControlsLocated on remote box ROLL PALLET Length450, 900 or 1,350 feet DimensionsVaries per ply configuration WeightVaries per ply configuration Rolls per Pallet*25 (Regular)16 (Double)9 (Jumbo)Dimensions48"W x 40" Depth or48"W x 48" DepthWeightVaries per ply configuration > *Size specifications refer to converter only and do...
