FillPak TT® Converter

FillPak TT® Converter

FillPak TT® Converter

Product catalog summary
Specifications
The FillPak TT converter is designed for fast and efficient packaging, converting fanfold paper into void fill material at a speed of 60 inches per second. It is compact and suitable for companies with multiple packing stations. The converter is adaptable, capable of being converted into a battery-operated unit when electrical outlets are unavailable. It is versatile, easily configured as either a floor or table stand, and lightweight, weighing only 55 lbs, making it easy to move.
Paper Specifications
The fanfold paper comes in two basis weights: 30 lb and 45 lb, both with a width of 15 inches. The 30 lb paper box is 1,660 feet long, weighing 21 pounds, while the 45 lb paper box is 1,200 feet long, weighing 23 pounds. Each pallet holds 65 boxes, with the total pallet weight being 1,393 pounds for the 30 lb paper and 1,517 pounds for the 45 lb paper.
Converter Specifications
The converter head measures 17 inches in width and 22.5 inches in depth, weighing 17 pounds. In the table stand configuration, the height ranges from 49 to 59 inches, with a total weight of 43 pounds. In the floor stand configuration, the height ranges from 74 to 84 inches, with a total weight of 55 pounds. The operation is controlled via a footswitch.
Contact Information
For inquiries, contact Ranpak Corp. at 7990 Auburn Road, Concord Township, OH, USA 44077, or P.O. Box 8004, Painesville, OH 44077-8004. Telephone: 440-354-4445, Toll-Free: 800-726-7257, Facsimile: 440-639-2199, Email: [email protected], Website: www.ranpak.com.
See more

Catalog excerpts

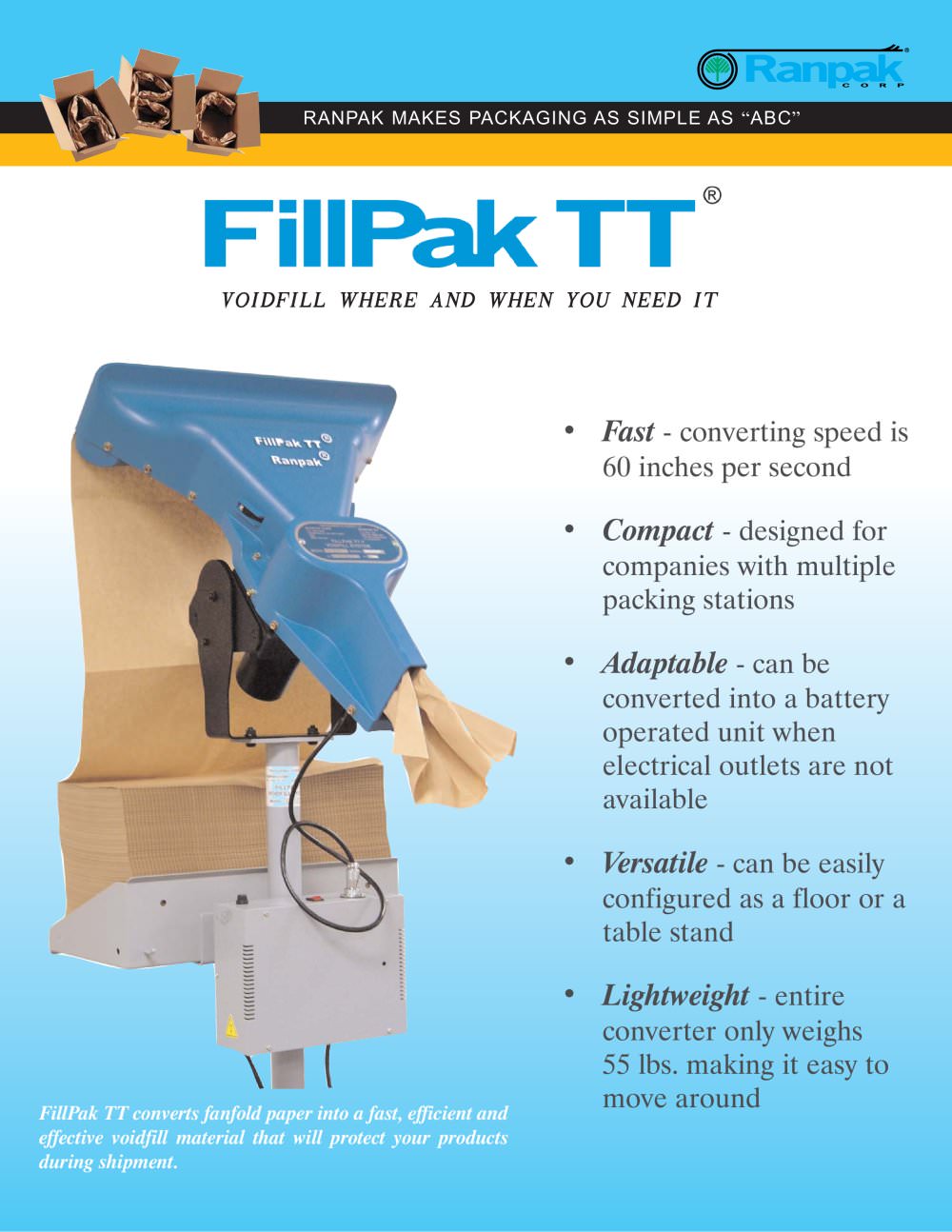

FillPak TT® Converter-1

RANPAK MAKES PACKAGING AS SIMPLE AS Γ ABC ԕ > - converting speed is 60 inches per second > - designed for companies with multiple packing stationsՕ > - can be converted into a battery operated unit when electrical outlets are not available > - can be easilyconfigured as a floor or a table standՕ > - entire converter only weighs 55 lbs. making it easy to move around > FillPak TT converts fanfold paper into a fast, efficient andeffective voidfill material that will protect your products during shipment. size="-1">

 Open the catalog to page 1
FillPak TT® Converter-2

PAPER - 30 LB. CONVERTER (approximate measurements)Head Width15" Basis Weight30 pounds BOX PALLET Length1,660 feet Dimensions15"W x 8.5"H x 8.5"Depth Weight21 pounds Table Stand Configuration Width17" Depth22.5" Weight17 pounds Boxes per Pallet65 Weight1,393 pounds Floor Stand Configuration Min. Height*49" Max. Height*59" Weight**43 pounds OPERATION Min. Height*74" Max. Height*84" Weight**55 pounds PAPER - 45 LB. OperationFootswitch Width15" Basis Weight45 pounds BOX PALLET Length1,200 feet Dimensions15"W x 8.5"H x 8.5"Depth Weight23 pounds Boxes per Pallet65 Weight1,517 pounds > *Min./max. height...

 Open the catalog to page 2
