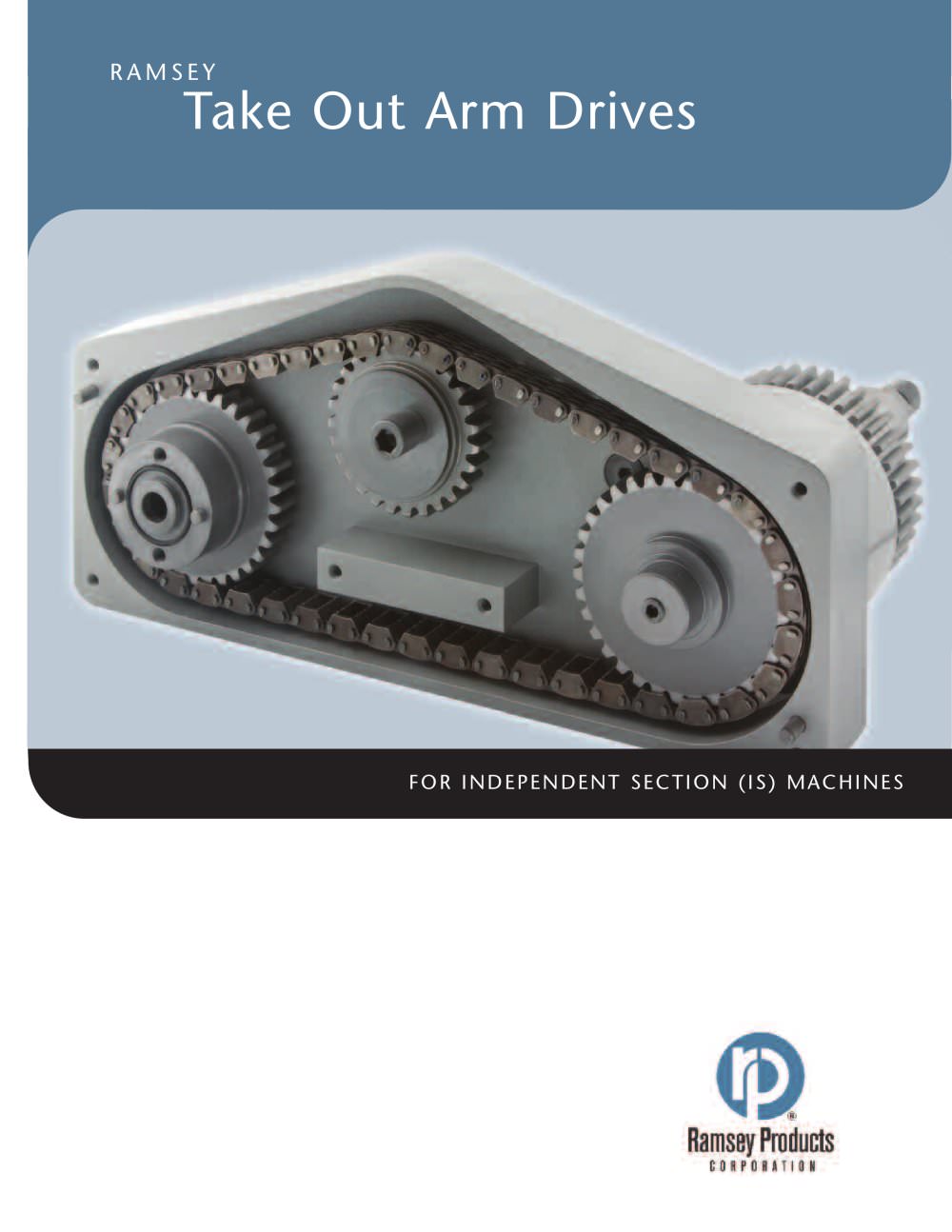

R AMS E Y Take Out Arm Drives FOR INDEPENDENT SECTION ( IS) MACHINES

1 Improving Take Out Arm Performance IS machines rely on take out arms to efficiently and accurately transfer hollow glassware from the mold to the dead plate. When functioning properly, the take out arm is synchronized with blow molds and glassware is uniformly spaced on the conveyor. As production rates and line speeds increase, the proper functioning of the take out arm becomes especially critical. A common problem with belt driven take out arms is the loss of synchronization due to belt slip or failure. This results in irregular product spacing, increased breakage, decreased throughput,...

10.0 8.0 6.0 0.0 4.0 2.0 RAMSEY DRIVE PAYBACK TIME Number of Belt Replacements Per Year Payback Time in Months 4 6 8 10 12 14 16 18 20 Results based on retrofitted 6 1/4” Ramsey take out arm in a high production bottling plant. TAKE OUT ARM RETROFIT KITS SAVE MONEY Ramsey retrofit kits allow take out arms from other manufacturers to be converted to RPV silent chain drives. Kits provide all of the internal components that are necessary to convert an existing take out arm to a Ramsey chain driven take out arm. The kit is installed in an existing take out arm housing, so there is no need to...

Ramsey Products Europe Lansinkesweg 4-003 7553 AE Hengelo (Ov) P.O. Box 960 7550 AZ Hengelo (Ov) The Netherlands Ph +31 (0) 742503308 Fax +31 (0) 742506485 Euro.sales@ramseychain.com For over 40 years, Ramsey has been supplying chain to the international market. Our goal is to provide the widest range of top quality Inverted tooth chains, unmatched service and competitive prices. Please contact Ramsey and let us show you how we can help enhance your growth and success. Printed in U.S.A. Catalog TOA3.11 Ramsey Products Corporation P.O. Box 668827 Charlotte, NC 28266-8827 Ship To: 135...
