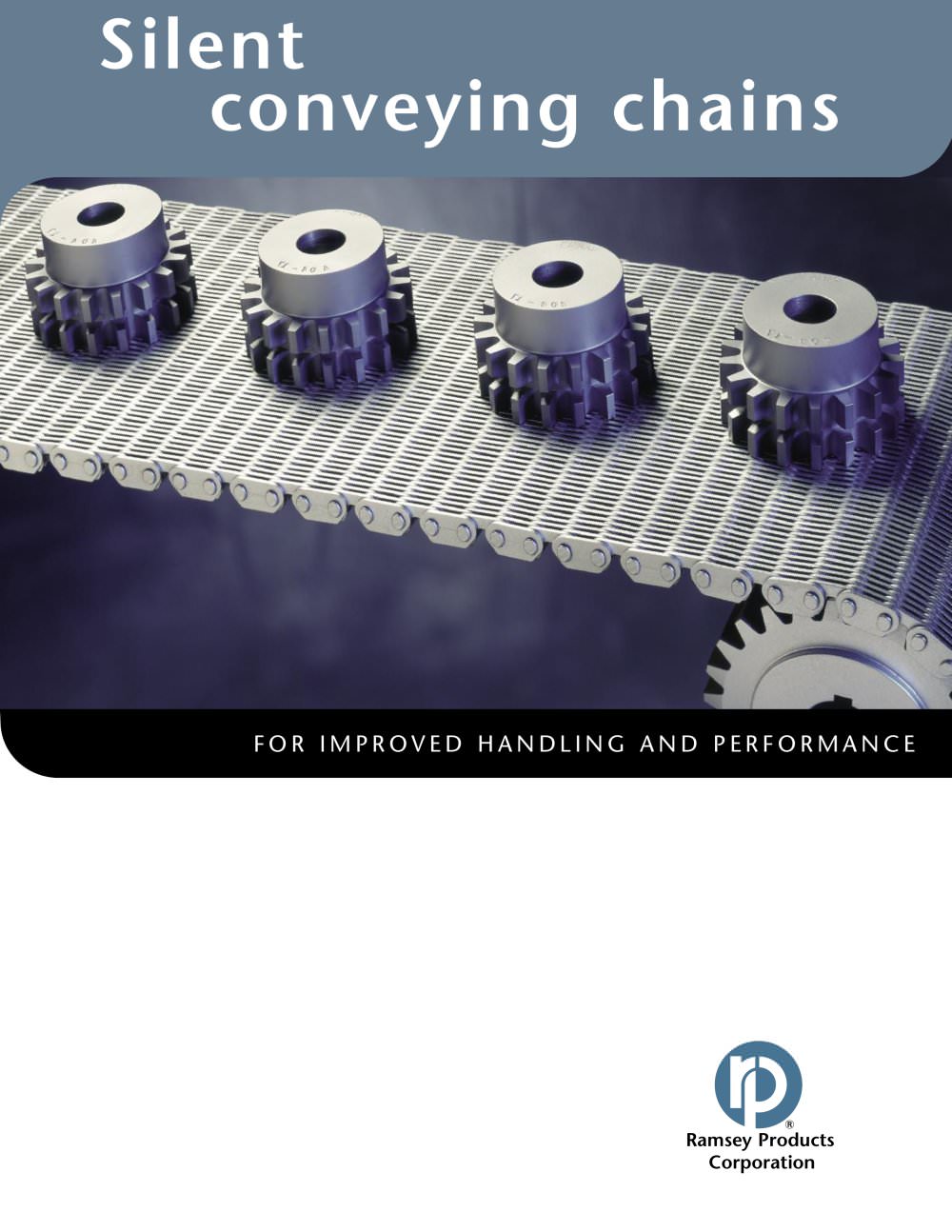

Silent conveying chains FOR IMPROVED HANDLING AND PERFORMANCE Ramsey Products Corporation

Silent Conveying Chains Today's conveying system designer faces a dazzling array of conveyor chain choices, from a multitude of suppliers. This catalog focuses on just one type of chain, silent conveying chain from Ramsey. For more than 30 years, Ramsey silent conveying chain has been the preferred solution for demanding conveying applications, throughout the world. Developed from the same technology used in high performance power transmission chain, Ramsey silent conveyor delivers the features one would expect in a high performance conveyor chain: unrivaled strength, durability, and smoothness...

A Flat, Uniform Conveying Surface The pins and links used in Ramsey chains are manufactured to exacting tolerances. This ensures that conveyor chains have a uniform height and a flat conveying surface. Consistent conveyor height enhances the smooth transport of articles on and off the conveyor, and minimizes tipping. Nearly constant surface velocity. Throughout the production process, we carefully control the pitch of all conveying chains. Controlling the pitch ensures consistent surface velocity in each chain. Uniform surface velocity reduces the occurrence of irregular article spacing, misfeeds,...

Chain Type Ramsey manufactures four basic types of conveyor chain: Ultralife (available in single pin or two pin joint types), Standard, Lo-Profile and Extended Pitch. Single Pin Driving Link Single Pin Driving Link UltraLife is Ramsey’s best quality conveyor chain. It was designed in cooperation with major manufacturers for high-speed Single Pin (top) production lines and field tested and Two Pin (below) Guide Links in plants around the world. UltraLife chain has been proven to last longer than any other conveyor chain we have tested. The improved performance of UltraLife is the result of Ramsey’s...

EXTENDED PITCH Single Pin Driving Link Single Pin Driving Link Produced to the same quality standards as standard conveyor, Ramsey Lo-Profile conveyor has a reduced overall link Single Pin Guide Link height and larger flats on link points. The increased surface area on the bottom of the chain serves to reduce bearing stress on wear plates, effectively reducing link wear and resistance to sliding. It works well where a more compact chain is needed. Extended pitch conveyor was developed in cooperation with industry engineers looking for a lightweight, long-lasting chain Single Pin Guide Link that...

Specifying A Chain When specifying an inverted tooth chain, you must consider appropriate guide type, build type and joint type. GUIDE TYPE Do you need a center guide, side guide or multiguide chain? On Ramsey ordering charts, guide type is designated as follows: (C) for center, (S) for side or (M) for multiguide. Remember that sprocket guide type must be compatible with your chain (see Specifying A Sprocket section, p.13). BUILD TYPE Inverted tooth conveyor chains are available in two basic build types: all-link, identified with an (L) in Ramsey ordering charts, and link-spacer, identified with...

Center Guide (C) Guide links in the center of the chain align with a groove in the center of the sprocket. Side Guide (S) Guide links are on the outer edges of the chain and sprockets fit between them. MultiGuide (M) Multiple guide links on the chain’s outer edge surround the sprocket and provide increased area for chain support on a wear strip. All-Link (L) Composed entirely of links, all-link chain provides maximum surface area and is often preferred for transporting small articles. All-Link chain has the greatest thermal mass and the smallest inter-link air spaces, so it provides the greatest...

Ordering Charts IDENTIFYING YOUR CONVEYOR CHAIN Ramsey uses a four-part numbering system for identifying conveyor assemblies. The first segment of each part number shows chain type, the second guide type, the third build type and the fourth nominal width. The last five characters of the numbering system are also referred to as the Assembly Number. CHAIN TYPE UL = UltraLife single pin UL2 = UltraLife two pin ST= Standard LP = Lo-Profile EP = Extended Pitch UL – C L 150 GUIDE TYPE: C = center S = side M = multi BUILD TYPE: L = all-link S = link-spacer NOMINAL WIDTH In this example the part number...

Center Guide Chain ULTRALIFE SINGLE PIN & STANDARD Pitch Line ULTRALIFE TWO PIN Pitch Line Pitch Line ALL-LINK ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT LINK-SPACER ASSEMBLY WEIGHT LB/FT ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT WEIGHT LB/FT ** Available in UltraLife only Note: Unless indicated, all dimensions are in inches

Ordering Charts Lo-Profile Line Side Guide Chain ULTRALIFE SINGLE PIN & STANDARD Pitch Line Pitch Line Pitch Line ALL-LINK ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links WBG Width Between Guides NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT WEIGHT LB/FT LINK-SPACER ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links WBG Width Between Guides NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT WEIGHT LB/FT Note: Unless indicated, all dimensions are in inches

Lo-Profile Line MultiGuide Chain ULTRALIFE SINGLE PIN & STANDARD Pitch Line Pitch Line Pitch Line ALL-LINK ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links WBG Width Between Guides NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT WEIGHT LB/FT LINK-SPACER ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links WBG Width Between Guides NOMINAL WIDTH ** Available in UltraLife only SPROCKET* WIDTH WEIGHT LB/FT WEIGHT LB/FT Note: Unless indicated, all dimensions are in inches

Ordering Charts Extended Pitch Center Guide Chain SINGLE PIN EXTENDED PITCH Pitch Line ALL-LINK ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT LINK-SPACER ASSEMBLY ASSEMBLY NUMBER WH Width Over Heads WL Width Over Links NOMINAL WIDTH SPROCKET* WIDTH WEIGHT LB/FT * +0.0/-2.0% Tolerance Note: Unless indicated, all dimensions are in inches Consult Ramsey for information on Two Pin Extended Pitch Chains
