Overview
This document describes a new model of an automatic sawing machine capable of cutting up to two bars simultaneously. It emphasizes the machine's robust structure, high-quality components, and advanced technology, making it a leader in high production efficiency.

Specifications
The machine features automatic monitoring and control of cutting parameters via an operator panel. Key specifications include:

Automatic adjustment of saw blade feed speed based on blade diameter and teeth count.
Inverter-controlled saw blade RPM.
Material advance carriage motion using a high-precision ball screw drive and brushless motor.
Automatic saw blade positioning for optimal cycle time.

Additional Features

Quick saw blade change-over.
Automatic chip conveyor system.
Self-centering clamping jaws.
High production and precision levels.

Programming
The machine allows for simple programming of technical parameters such as cut length, total and batch quantities, trim cut length, and maintenance. It includes an on-screen diagnostic menu and the ability to save/load cut programs.

Main Clamp Assembly
The patented main clamp assembly moves during the "last part" cut to minimize scrap by approaching the saw blade.

Material Feeding

Sliding carriage on precision linear guides controlled by a ball screw drive and brushless motor.
Programmable options for progressive feed or feed at every cut cycle.
Capability to program two different cut lengths per bar.
Automatic control of carriage speed and acceleration based on material bar weight/inertia.
Part location acquired through laser gates for high precision and speed.

Design and Loading
The machine features a new design for simultaneous loading, where materials are pre-loaded and aligned to minimize loading time. The mechanical movement of the carriage allows for damped loading of heavier materials.

Note
Features, weight, dimensions, machine capacities, and performance characteristics are subject to change without notice.

Catalog excerpts

AUTOMATIC SAWING MACHINE FOR CUTTING

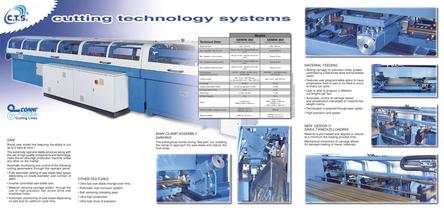

Open the catalog to page 1

SAW Brand new model line featuring the ability to cut up to 2 bars at once ! The extremely rigid and stable structure along with the use of high-quality components and technology make this an ultra-high production machine unlike any other on the market. Automatic monitoring and control of the following cutting parameters through the operator panel. • Fully automatic setting of saw blade feed speed depending on blade diameter and number of teeth; • Inverter controlled saw blade rpm; • Material advance carriage motion through the use of high-precision ball screw drive and brushless motor; • Automatic...

Open the catalog to page 2

Features, weight, dimensions, machine capacities and performance characteristics are subject to change without notice. MATERIAL FEEDING • Sliding carriage on precision linear guides, controlled by a Ball screw drive and brushless motor. • Features user programmable option to have progressive feed of part or for feed to occur at every cut cycle. • User is able to program 2 different cut lengths per bar. • Automatic control of carriage speed and acceleration calculated on material bar weight / inertia. • Part location is acquired through laser ‘gates’. • High precision and speed. NEW DESIGN !!!...

Open the catalog to page 3

C.T.S. Srl - Via A.Tamborlani, 12 - 29027 Podenzano PC - Italy Tel. (-39)0523.550315 - Fax (-39)0523.556421 - www.conni.it - E-mail: [email protected]
