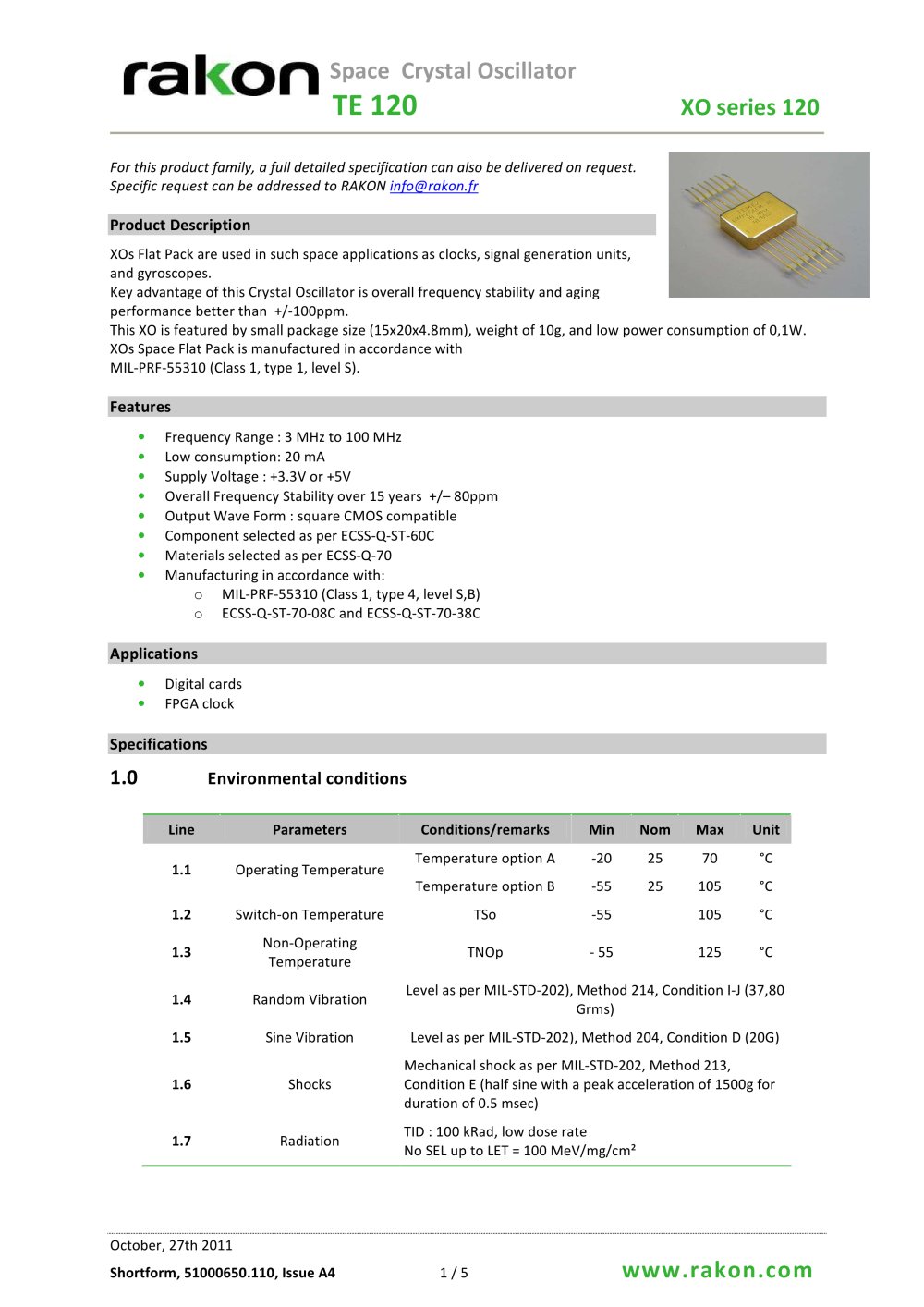

TclIC^Dni Space Crystal Oscillator TE 120 XO sries 120 For this product family, a full detailed spcification can also be delivered on request. Sp驩cifie request can be addressed to RAKON info@rakon.fr Product Description XOs Flat Pack are used in such space applications as clocks, signal gnration units, and gyroscopes. Key advantage of this Crystal Oscillator is overall frequency stability and aging performance better than +/-100ppm. This XO is featured by small package size (15x20x4.8mm), weight of 10g, and low power consumption of 0,1W. XOs Space Flat Pack is manufactured in accordance with MIL-PRF-55310 (Class 1, type 1, level S). Features 驕 Frequency Range : 3 MHz to 100 MHz Low consumption: 20 mA Օ Supply Voltage : +3.3V or +5V Overall Frequency Stability over 15 years +/- 80ppm Օ Output Wave Form : square CMOS compatible Component selected as per ECSS-Q-ST-60C Օ Materials selected as per ECSS-Q-70 Manufacturing in accordance with: o MIL-PRF-55310 (Class 1, type 4, level S,B) o ECSS-Q-ST-70-08C and ECSS-Q-ST-70-38C Applications Օ Digital cards FPGA clock Specifications 1.0 Environmental conditions Line Parameters Conditions/remarks Min Nom Max Unit 1.1 Operating Temperature Temperature option A -20 25 70 °C Temperature option B -55 25 105 °C 1.2 Switch-on Temperature TSo -55 105 °C 1.3 Non-Operating Temperature TNOp - 55 125 1.4 Random Vibration 1.5 Sine Vibration 1.6 Shocks 1.7 Radiation Level as per MIL-STD-202), Method 214, Condition I-J (37,80 Grms) Level as per MIL-STD-202), Method 204, Condition D (20G) Mechanical shock as per MIL-STD-202, Method 213, Condition E (half sine with a peak acceleration of 1500g for duration of 0.5 msec) TID : 100 kRad, low dose rate No SEL up to LET = 100 MeV/mg/cm2 October, 27th 2011 Shortform, 51000650.110, Issue A4 1 / 5 www.rakon.com

Open the catalog to page 1

XO Space Crystal Oscillator Flat Pack Series 120 - 2

Shortform table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font1 { font:10.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:11.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:14.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:16.00pt "Franklin Gothic Medium", sans-serif; } .font5 { font:17.00pt "Franklin Gothic Medium", sans-serif; } f^jl^j^J^^ Space Crystal Oscillator TE 120 XO sries 120 2.0 Electrical interface Line 2.1 2.2 Parameters Conditions/remarks Min Nom Max Unit Power...

Open the catalog to page 2

XO Space Crystal Oscillator Flat Pack Series 120 - 3

f^jl^j^J^^ Space Crystal Oscillator TE 120 XO sries 120 Mechanical features 5.0 Pin description Line 5.1 5.2 5.3 5.4 Pin number 1 8 14 2 to 7, 9 to 13 Name Ground Fout Vcc Ground Function Electrical Ground Frequency output Supply voltage input Mechanical Ground October, 27th 2011 Shortform, 51000650.110, Issue A4 3 / 5 www.rakon.com

Open the catalog to page 3

XO Space Crystal Oscillator Flat Pack Series 120 - 4

f^jl^j^J^^ Space Crystal Oscillator TE 120 XO sries 120 6.0 Model philosophy Representativeness Engineering Engineering Qualification Flight Flight Model Model Qualification Model Model Model + Lot Acceptance test (option A) (options B, C) (option D) (options E, F, G, H) (option I) Component Passive commercial parts Active parts from the same manufacturer of HiRel parts Mil Grade parts procured from the same manufacturer of HiRel parts HiRel Parts HiRel Parts HiRel Parts Crystal material Swept quartz Swept quartz Swept quartz ESCC3501 Swept quartz Swept quartz Stabilized Stabilized...

Open the catalog to page 4

XO Space Crystal Oscillator Flat Pack Series 120 - 5

Space Crystal Oscillator TE 120 XO sries 120 10.0 Ordering part number dfinition The part number breakdown is defined as follows: TE 120 E A 1 1 1 40M000000 RAKON -1 S驩ries -1 Model A = EM B = EQM full environmental testing C = EQM reduced environmental testing D = QM _| E = FM level S F = FM level S with combined BI-aging G = FM level B H = FM level B with combined BI-aging I = FM + group C Temperature range/Overall Stability A = -20C to +70C, ± 50 ppm _ B = -55C to +105C, ± 80 ppm Supply voltage 1 = 3.3V - 2 = 5V Wave form 1 = Square AHCMOS Frequency adjustment 1 = internal calibration...
