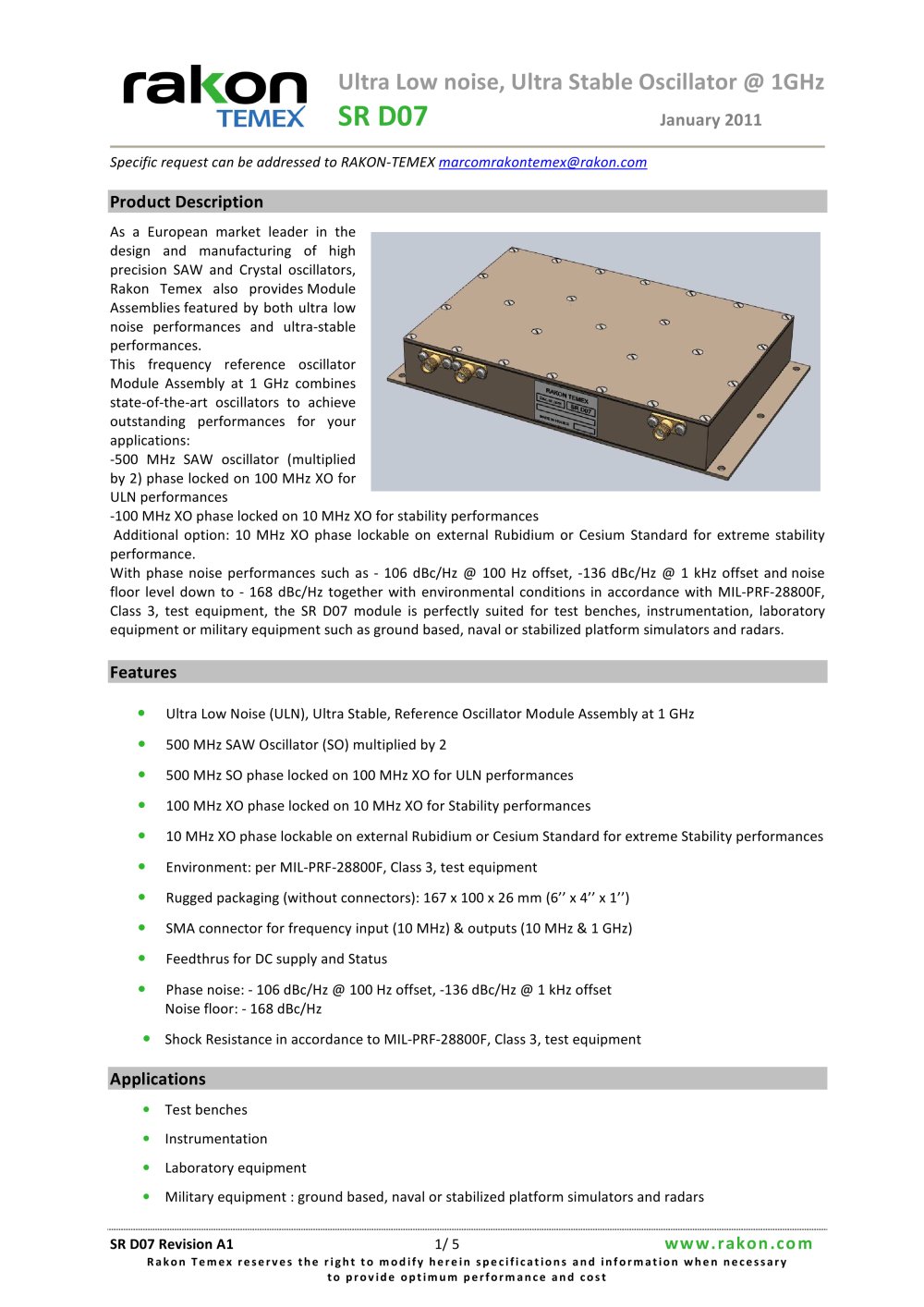

rakon Ultra Low noise, Ultra Stable Oscillator @ 1GHz TEME* SR D07 Januarv2011 Spcifierequestcanfie adressedto RAKQN-TEMEXrnorcomrakontemex@)rakon.com Product Description As a European market leader in the design and manufacturing of high pr頩cision SAW and Crystal oscillators, Rakon Temex also provides Module Assembliesfeatured by both ultra low noise performances and ultra-stable performances. This frequency rfrence oscillator Module Assembly at 1 GHz combines state-of-the-art oscillators to achieve outstanding performances for your applications: -500 MHz SAW oscillator (multiplied by 2) phase locked on 100 MHz XO for ULN performances -100 MHz XO phase locked on 10 MHz XO for stabilrty performances Additional option: 10 MHz XO phase lockable on external Rubidium or C驩sium Standard for extrme stability performance. With phase noise performances such as - 106 dBc/Hz @ 100 Hz offset, -136 dBc/Hz @ 1 kHz offset and noise floor level down to - 168 dBc/Hz together with environmental conditions in accordance wfth MIL-PRF-28800F, Class 3, test equipment, the SR 007 module is perfectly suited for test benches, instrumentation, laboratory equipment or military equipment such as ground based, naval or stabilized platform simulators and radars. Features Ultra Low Noise (ULN), Ultra Stable, Rꕩfrence Oscillator Module Assembly at 1 GHz 500 MHz SAW Oscillator (SO) multiplied by 2 镕 500 MHz SO phase locked on 100 MHz XO for ULN performances 100 MHz XO phase locked on 10 MHz XO for Stability performances 10 MHz XO phase lockable on external Rubidium or Cթsium Standard for extrme Stability performances Environment: per MIL-PRF-28800F, Class 3, test equipment ꕕ Rugged packaging (without connectors): 167 x 100 x 26 mm (6" x 4" x 1") SMA connector for frequency input (10 MHz) & outputs (10 MHz & 1 GHz) Օ Feedthrus for DC supply and Status Phase noise: -106 dBc/Hz (© 100 Hz offset, -136 dBc/Hz @ 1 kHz offset Noise fk>or:-168 dBc/Hz Օ Shock Rsistance in accordance to MIL-PRF-28800F, Class 3, test equipment Applications Test benches 镕 Instrumentation Laboratory equipment Օ Military equipment : ground based, naval or stabilized platform simulators and radars SR 007 Revision Al 1/5www.rakon.com Rakon Temex reserves the right to modlfv hereln spcifications and Information when necessary to provldt optimum performance end cost
Open the catalog to page 1k^JO U'tra L°W noise- Ultra Stable Oscillator @ 1GHz TEMEX SR D07 November2009 Technical characte Typical output phase noise 70 -80 -90 100 -110 a 120 130 140 -ISO -ieo I/O 180 lu inn 100010000 Offset frequeney(Hz) i:.in:«i 1000000 100MHz XO x 5 - 500MH2 SO 500MHz + PLL phase noise ח 1 GHz Output phase noise Block diagram 10 MHz eference standard 10 MHz Output Diiiit.il PLL tfctil 10 MHz ocvcxo SR D07 10 MM/ Vcc 15 V<k Vutl 100 MHz OCVCXO PS loo MHrFout PLL100M Status Fref|iiency doublet Ati.iloii PLL ci Vttil 500 MHz OCVCSO 1 GHz X2 PS PLL500M MOMHi Font SR 007 Revision...
Open the catalog to page 2ral on Ultra Low TEM SR D07 November 2009 Spcifications 1. Environmental Conditions (as per MIL-PRF-28800F, CLASS 3, test equipment) Line Parameter Environmental Conditions Requirement Test procedure 1.1 Temperature, operating 0 to 50 °C § 3.8.2.2.3 § 4.5.5.1 1.2 Temprature, not operating -40 to 71 °C § 3.8.2.1.2 § 4.5.5.1 1.3 5 to 95±5 % in [10 to 30°C] § 3.8.2.3 Relative humidity 5 to 75±5 % in [30 to 40°C] 5 to 45±5 % in [40 to 50°C] § 3.8.2.3.2 § 3.8.2.3.2 § 4.5.5.1 1.4 Altitude 4600 m 5 - 100 Hz: .015 g2/Hz 100 - 137 Hz: -6 dB/oct § 3.8.3 § 4.5.5.2 1.5 Vibration 137 - 350 Hz: .0075...
Open the catalog to page 3ral on Ultra Low TEM SR D07 November 2009 Line Parameter Min Typical Max Unit 10 MHz frequency output (Pin 2) 2.14 Nominal frequency 10 MHz 2.15 Output level (50 Q load) 0.45 0.50 0.55 Vrms 2.16 Relative frequency stability on free running mode (10 MHz external reference not connected) Aging (after 30 days continuous operation) ± 50 ppb/year 2.17 Within temperature range [0 to +50°C] ± 5 ppb 2.18 Warm up time 10 15 mn 2.19 Harmonics suppression - 25 dBc 2.20 Spurious suppression - 80 dBc 2.21 Phase noise @ 100 Hz offset - 140 dBc/Hz 2.22 Phase noise @ 1 kHz offset - 145 dBc/Hz 2.23 Phase...
Open the catalog to page 4ral on Uitra Low TEM SR D07 November 2009 3. Mechanical features Package: Machined, shielded enclosure Օ SMA connector & Feedthru solder pins Case: AG4/5MC Օ Finish: Ni15(I)/Zn1(II)/AG4/5MC Drawing o fer ~0~ "0" o "SI 0 0 e e e e 0 0 0 0 0 _0_ ALL DIMENSIONS ARE IN mm 25,4 4. Pin description Pin number Type 1 Female SMA 2 Female SMA 3 Female SMA 4 Feedthru + Ground 5 Feedthru + Ground Function 1 GHz Frequency output 10 MHz Frequency output 10 MHz Reference input 15VDC Power supply input Status "oscillator ready" output sr D07 Revision A1 5/5 www.rakon.com Rakon Temex reserves the right to...
Open the catalog to page 5All Rakon catalogs and technical brochures
-
