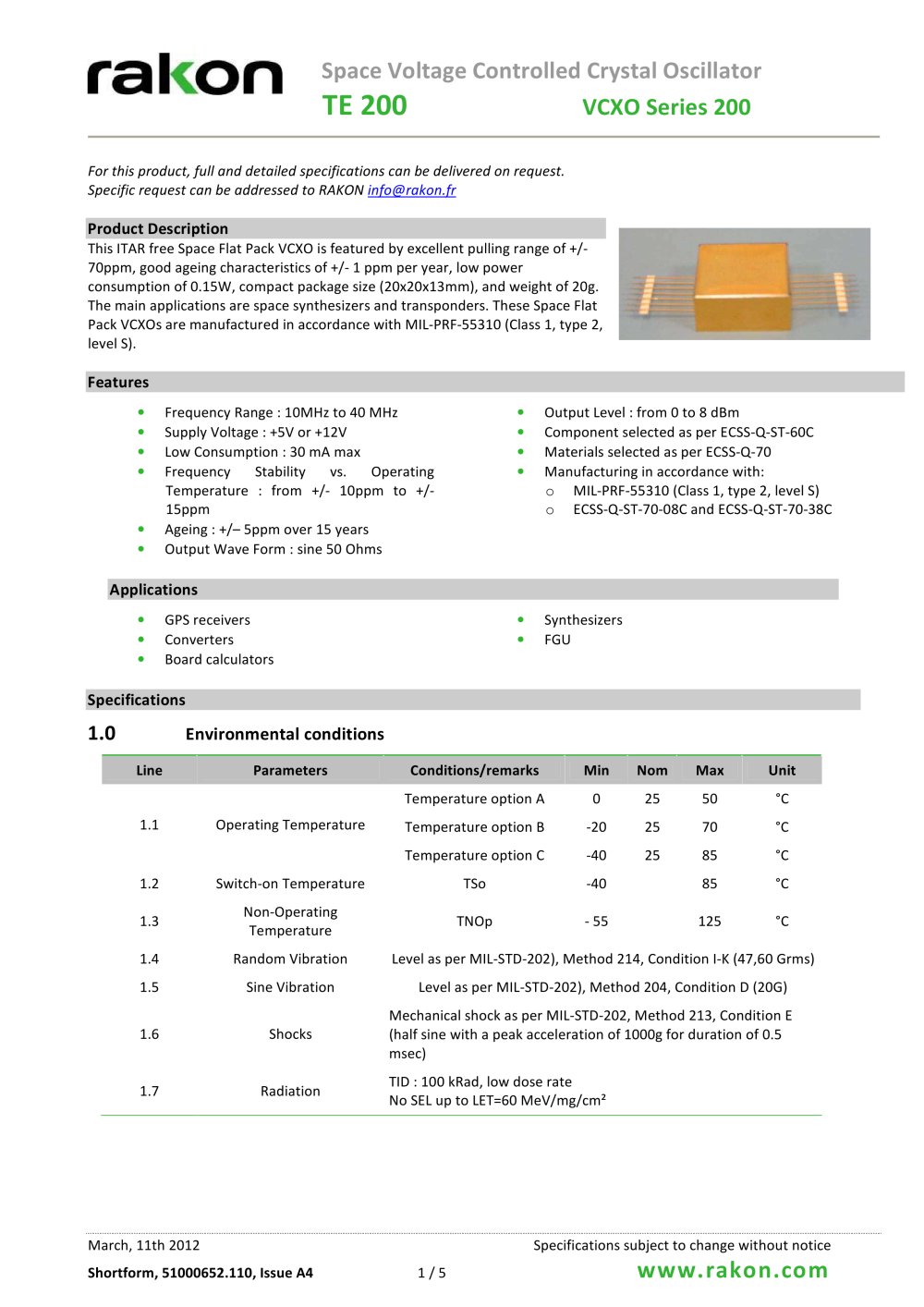

l^j^J^^ Space Voltage Controlled Crystal Oscillator TE 200VCXO Sries 200 For this product, full and detailed spcifications can be delivered on request. Sp驩cifie request can be addressed to RAKON [email protected] Product Description This ITAR free Space Flat Pack VCXO is featured by excellent pulling range of +/-70ppm, good ageing characteristics of +/- 1 ppm per year, low power consumption of 0.15W, compact package size (20x20x13mm), and weight of 20g. The main applications are space synthesizers and transponders. These Space Flat Pack VCXOs are manufactured in accordance with MIL-PRF-55310 (Class 1, type 2, level S). Features Frequency Range : 10MHz to 40 MHz Supply Voltage : +5V or +12V Low Consumption : 30 mA max Frequency Stability vs. Operating Temperature : from +/- 10ppm to +/-15ppm Ageing : +/- 5ppm over 15 years Output Wave Form : sine 50 Ohms Output Level : from 0 to 8 dBm Component selected as per ECSS-Q-ST-60C Materials selected as per ECSS-Q-70 Manufacturing in accordance with: o MIL-PRF-55310 (Class 1, type 2, level S) o ECSS-Q-ST-70-08C and ECSS-Q-ST-70-38C Applications GPS receivers Converters Board calculators Synthesizers FGU Spcifications 1.0 Environmental conditions Line Parameters Conditions/remarks Min Nom Max Unit Temperature option A 0 25 50 °C 1.1 Operating Temperature Temperature option B -20 25 70 °C Temperature option C -40 25 85 °C 1.2 Switch-on Temperature TSo -40 85 °C 1.3 Non-Operating Temperature TNOp - 55 125 °C 1.4 1.5 1.6 1.7 Random Vibration Sine Vibration Shocks Radiation Level as per MIL-STD-202), Method 214, Condition I-K (47,60 Grms) Level as per MIL-STD-202), Method 204, Condition D (20G) Mechanical shock as per MIL-STD-202, Method 213, Condition E (half sine with a peak acceleration of 1000g for duration of 0.5 msec) TID : 100 kRad, low dose rate No SEL up to LET=60 MeV/mg/cm2 March, 11th 2012 1 / 5 Specifications subject to change without notice www.rakon.com Shortform, 51000652.110, Issue A4

l^j^J^^ Space Voltage Controlled Crystal Oscillator TE 200VCXO Sries 200 2.0 Electrical interface 3.0 Line Parameters Conditions/remarks Min Nom Max Unit 2.1 Power supply Supply option 1 4.75 5.0 5.25 V Supply option 2 11.4 12.0 12.6 V 2.2 Load Impedance 45 50 55 W 2.3 Control voltage 0 5 V 2.4 Adjustment Resistor Radj Calibration option A 0 10 kW Calibration option B NA NA NA Performances Line Parameters Conditions/Remarks Min Typ Max Unit 3.1 Nominal Frequency 10 40 MHz 3.2 Steady state input current power (Rnom) 30 mA 3.3 Initial frequency accuracy Calibration Rnom option A Negative slope...

l^j^J^^ Space Voltage Controlled Crystal Oscillator TE 200VCXO Sries 200 4.0 Mechanical features 5.0 Pin description Line Pin number Name Function 5.1 1-3-7-12-14 GND Electrical & Mechanical Ground 5.2 2 Vcc Supply Voltage Radj Calibration option A Resistor Adjustment 5.3 4 NC Calibration option B Do not connect 5.4 6 Vc Control voltage input 5.5 5-9-10-11 NC Do not connect 5.6 13 Fout Frequency Output March, 11th 2012 3 / 5 Specifications subject to change without notice www.rakon.com Shortform, 51000652.110, Issue A4

l^j^J^^ Space Voltage Controlled Crystal Oscillator TE 200VCXO Sries 200 6.0 Model philosophy Representativeness Engineering Engineering Qualification Flight Flight Model + Model Qualification Model Model Model Lot Acceptance test (option A) (options B, C) (option D) (options E, F, G, H) (option I) Component Passive commercial parts Active parts from the same manufacturer of HiRel parts Mil Grade parts procured from the same manufacturer of HiRel parts HiRel Parts HiRel Parts HiRel Parts Crystal material Swept quartz Swept quartz Swept quartz ESCC3501 Swept quartz Swept quartz ESCC3501 Stabilized...

rakon Space Voltage Controlled Crystal Oscillator TE 200VCXO Sries 200 10.0 Ordering part number definition The part number breakdown is defined as follows: TE 200 E A 1 1 1 20M000000 Sries - Model A = EM B = EQM full environmental testing C = EQM reduced environmental testing D = QM E = FM level S F = FM level S with combined BI-aging G = FM level B H = FM level B with combined BI-aging I = FM + group C Temperature range/Stability A = 0°C to +50°C, ± 10 ppm _ B = 0°C to +70°C, ± 10 ppm C = -20°C to +70°C, ± 15 ppm Supply voltage 1 = 5V - 2 = 12V Wave form _ 1 = Sine Frequency pulling range 1 =...
