SPACE Temperature Controlled Crystal Oscillator TE300 TCXO Series 300 Spatial Flat Pack - 1

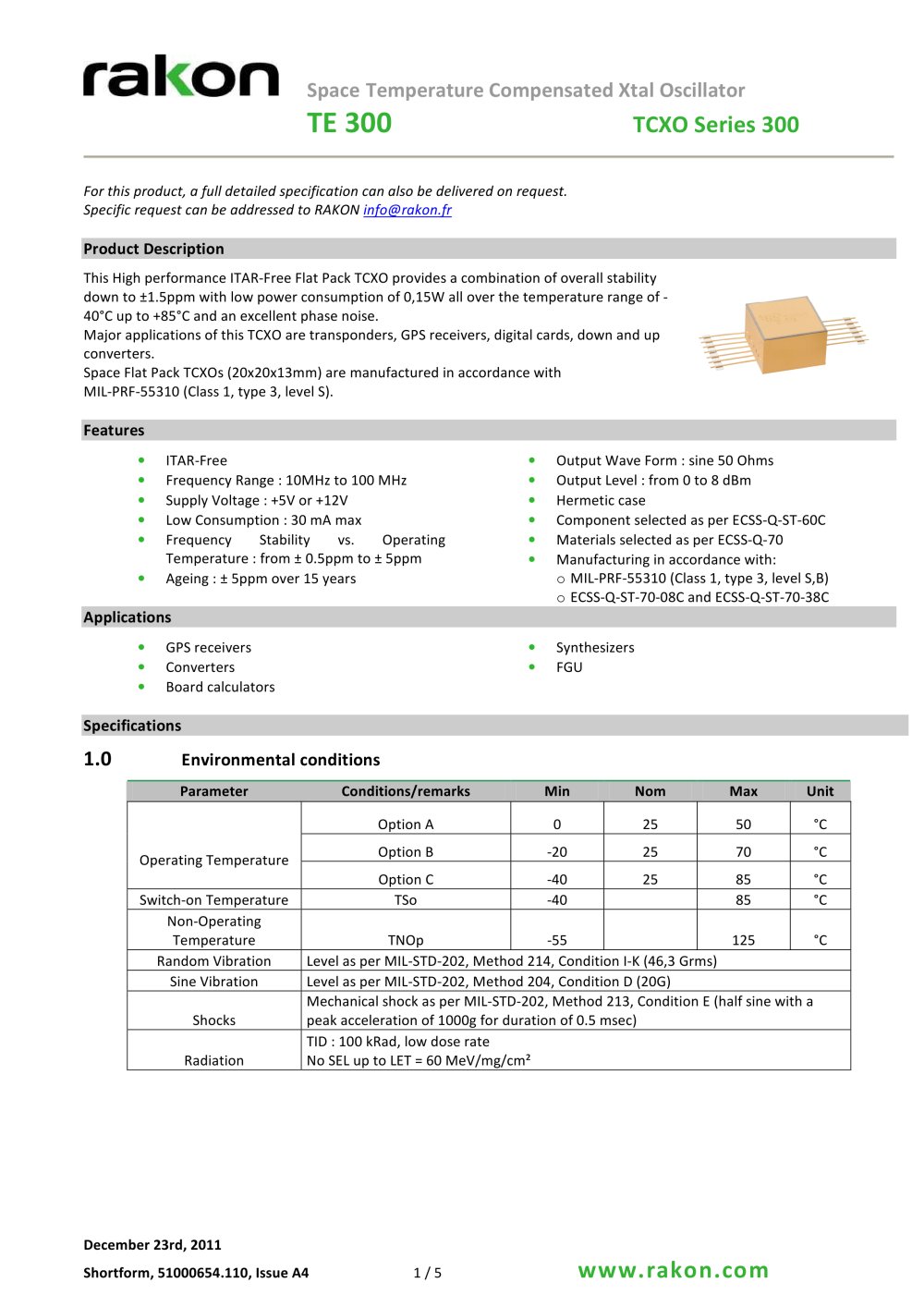

rakon Space Temprature Compensated Xtal Oscillator TE 300 TCXOSeries300 For this product, a fui! detailed spcification can also be delivered on request. Sp驩cifie request can be addressed to RAKON info@rakon.fr Product Description This High performance ITAR-Free Flat Pack TCXO provides a combination of overall stability down to ±1.5ppm with low power consumption of 0,15W all over the temperature range of -40°C up to +85°C and an excellent phase noise. Major applications of this TCXO are transponders, GPS receivers, digital cards, down and up converters. Space Flat Pack TCXOs (20x20x13mm) are manufactured in accordance with MIL-PRF-55310 (Class 1, type 3, level S). Features ITAR-Free Frequency Range : 10MHz to 100 MHz Supply Voltage : +5V or +12V Low Consumption : 30 mA max Frequency Stability vs. Operating Temperature : from ± 0.5ppm to ± 5ppm Ageing : ± 5ppm over 15 years Output Wave Form : sine 50 Ohms Output Level : from 0 to 8 dBm Hermetic case Component selected as per ECSS-Q-ST-60C Materials selected as per ECSS-Q-70 Manufacturing in accordance with: o MIL-PRF-55310 (Class 1, type 3, level S,B) o ECSS-Q-ST-70-08C and ECSS-Q-ST-70-38C Applications GPS receivers Converters Board calculators Synthesizers FGU Specifications 1.0 Environmental conditions Parameter Conditions/remarks Min Nom Max Unit Operating Temperature Option A 0 25 50 °C Option B -20 25 70 °C Option C -40 25 85 °C Switch-on Temperature TSo -40 85 °C Non-Operating Temperature TNOp -55 125 °C Random Vibration Level as per MIL-STD-202, Method 214, Condition I-K (46,3 Grms) Sine Vibration Level as per MIL-STD-202, Method 204, Condition D (20G) Shocks Mechanical shock as per MIL-STD-202, Method 213, Condition E (half sine with a peak acceleration of 1000g for duration of 0.5 msec) Radiation TID : 100 kRad, low dose rate No SEL up to LET = 60 MeV/mg/cm2 December 23rd, 2011 Shortform, 51000654.110, Issue A4 1 / 5 www.rakon.com

Open the catalog to page 1

SPACE Temperature Controlled Crystal Oscillator TE300 TCXO Series 300 Spatial Flat Pack - 2

TE300.51000654.110.Shortform-A4 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:40.00pt "Trebuchet MS", sans-serif; } rai on Space Temprature Compensated Xtal Oscillator TE 300 TCXOSeries300 2.0 Electrical interface 3.0 Parameters Conditions/remarks Min Nom Max Unit Power supply Option 1 4.75 5 5.25 V Option 2 11.4 12 12.6 V Load Impdance 45...

Open the catalog to page 2

SPACE Temperature Controlled Crystal Oscillator TE300 TCXO Series 300 Spatial Flat Pack - 3

rai on Space Temprature Compensated Xtal Oscillator TE 300 TCXOSeries300 4.0 Mechanical features Weight 20 grams 5.0 Pin description Pin number Name Description 1,3,7,12,14 GND Electrical & Mechanical ground 2 Vcc Supply voltage 4,5,8,9,10,11 NC Do not Connect 6 Radj Frequency adjustment option 1 13 Fout Frequency output December 23rd, 2011 Shortform, 51000654.110, Issue A4 3 / 5 www.rakon.com

Open the catalog to page 3

SPACE Temperature Controlled Crystal Oscillator TE300 TCXO Series 300 Spatial Flat Pack - 4

Space Temperature Compensated Xtal Oscillator TE 300 TCXOSeries300 6.0 Model philosophy Representativeness Engineering Model Engineering Qualification Model Qualification Model Flight Model Flight Model + Lot Acceptance test Options A B, C D E, F, G, H I Components Passive commercial parts, Active parts from the same manufacturer of HiRel parts Mil Grade parts procured from the same manufacturer of HiRel parts HiRel Parts HiRel Parts HiRel Parts Crystal material Swept quartz stabilized Swept quartz stabilized ESCC3501 Swept quartz stabilized ESCC3501 Swept quartz stabilized ESCC3501 Swept...

Open the catalog to page 4

SPACE Temperature Controlled Crystal Oscillator TE300 TCXO Series 300 Spatial Flat Pack - 5

Space Temperature Compensated Xtal Oscillator TE 300 TCXOSeries300 10.0 Ordering part number definition The part number breakdown is defined as follows: TE 300 E A 1 1 1 40M000000 RAKON-TEMEX -1 Series -' Model A = EM B = EQM full environmental testing C = EQM reduced environmental testing D = QM _| E = FM level S F = FM level S with combined BI-aging G = FM level B H = FM level B with combined BI-aging I = FM + group C Temperature range/Stability A = 0°C to +50°C, ± 0.5 ppm B = -20C to +70°C, ± 1 ppm C = -40C to +85°C, ± 5 ppm Supply voltage 1 = 5V -1 2 = 12V Wave form _| 1 = Sine...
