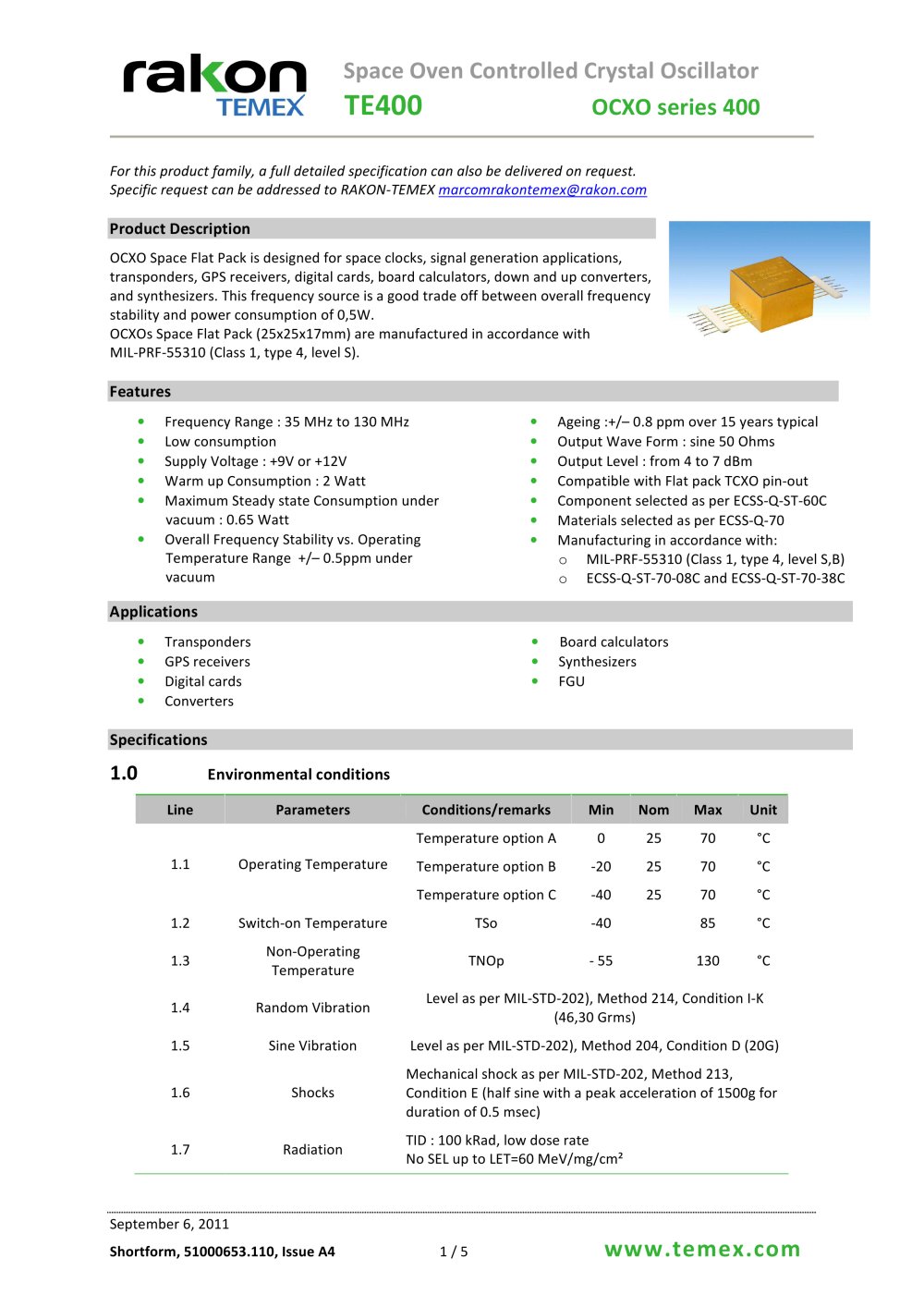

Space Oven Controlled Crystal Oscillator TE400 OCXO series 400 - 1

| Space Oven Controlled Crystal Oscillator TEMEX TE400 OCXO sries 400 For this product family, a full detailed spcification can also be delivered on request. Sp驩cifie request can be addressed to RAKON-TEMEX marcomrakontemex@rakon.com Product Description OCXO Space Flat Pack is designed for space clocks, signal gnration applications, transponders, GPS receivers, digital cards, board calculators, down and up converters, and synthesizers. This frequency source is a good trade off between overall frequency stability and power consumption of 0,5W. OCXOs Space Flat Pack (25x25x17mm) are manufactured in accordance with MIL-PRF-55310 (Class 1, type 4, level S). Features 驕 Frequency Range : 35 MHz to 130 MHz Low consumption Օ Supply Voltage : +9V or +12V Warm up Consumption : 2 Watt Օ Maximum Steady state Consumption under vacuum : 0.65 Watt Overall Frequency Stability vs. Operating Temperature Range +/- 0.5ppm under vacuum Applications Օ Transponders GPS receivers Օ Digital cards Converters Օ Ageing :+/- 0.8 ppm over 15 years typical Output Wave Form : sine 50 Ohms Օ Output Level : from 4 to 7 dBm Compatible with Flat pack TCXO pin-out Օ Component selected as per ECSS-Q-ST-60C Materials selected as per ECSS-Q-70 Օ Manufacturing in accordance with: o MIL-PRF-55310 (Class 1, type 4, level S,B) o ECSS-Q-ST-70-08C and ECSS-Q-ST-70-38C Board calculators Օ Synthesizers FGU Specifications 1.0 Environmental conditions Line Parameters 1.1 Operating Temperature 1.2 Switch-on Temperature 13 Non-Operating Temperature 1.4 Random Vibration 1.5 Sine Vibration 1.6 Shocks 1.7 Radiation Conditions/remarks Temperature option A Temperature option B Temperature option C TSo TNOp Min Nom Max 0 25 70 -20 25 70 -40 25 70 -40 85 Unit °C °C °C °C °C 55 130 Level as per MIL-STD-202), Method 214, Condition I-K (46,30 Grms) Level as per MIL-STD-202), Method 204, Condition D (20G) Mechanical shock as per MIL-STD-202, Method 213, Condition E (half sine with a peak acceleration of 1500g for duration of 0.5 msec) TID : 100 kRad, low dose rate No SEL up to LET=60 MeV/mg/cm2 September 6, 2011 Shortform, 51000653.110, Issue A4 1 / 5 www.temex.com

Open the catalog to page 1

Space Oven Controlled Crystal Oscillator TE400 OCXO series 400 - 2

untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:32.00pt "Tahoma", sans-serif; } | ^^f^ Space Oven Controlled Crystal Oscillator TEMEX TE400 OCXO sries 400 2.0 Electrical interface Line Parameters Conditions/remarks Min Nom Max Unit 2.1 Power supply Supply option 1 8.5 9.0 9.5 V Supply option 2 11.4 12.0 12.6 V 2.2 Load Impedance 45...

Open the catalog to page 2

Space Oven Controlled Crystal Oscillator TE400 OCXO series 400 - 3

| ^^f^ Space Oven Controlled Crystal Oscillator TEMEX TE400 OCXO sries 400 4.0 Mechanical features Weight 25 grams Oz, Number of lead : 10 Leads on 2 sides I.D bead : Pins # : 1,4, 5, 10 Grounds pins : Pins # : 2, 3, 6, 7, 8, 9 COUPE A-A f +0,04] 1.0,49 0,00_| +1 12,50 0 [1,01 max.] 25,60 max. r +o,o4i |_0,49 0,00j +1 12,50 0 II Il 10 O CN DETAIL B ECHELLE 6 : 1 E E ,_ o DOCUMENT : 150.Plan d'encombrement 150-Osciffator outfine -E3- GEN.TOL. +/- 0.1 UNITS: mm [inch] SCALE 3:2 5.0 Pin description Line Pin number Name Function 5.1 1 Vcc Supply Voltage input 5.2 2,3,6,7,8,9 Ground Electrical &...

Open the catalog to page 3

Space Oven Controlled Crystal Oscillator TE400 OCXO series 400 - 4

raion TEME)C Space Oven Controlled Crystal Oscillator TE400 OCXO sries 400 6.0 Model philosophy Representativeness Engineering Engineering Qualification Flight Flight Model + Model Qualification Model Model Model Lot Acceptance test (option A) (options B, C) (option D) (options E, F, G, H) (option I) Component Passive commercial parts Active parts from the same manufacturer of HiRel parts Mil Grade parts procured from the same manufacturer of HiRel parts HiRel Parts HiRel Parts HiRel Parts Crystal material Swept quartz Swept quartz Swept quartz ESCC3501 Swept quartz Swept quartz ESCC3501...

Open the catalog to page 4

Space Oven Controlled Crystal Oscillator TE400 OCXO series 400 - 5

| ^^f^ Space Oven Controlled Crystal Oscillator TEMEX TE400 OCXO sries 400 10.0 Ordering part number definition The part number breakdown is defined as follows: TE 400 E A 1 1 1 40M000000 RAKON-TEMEX -1 Sries -1 Model A = EM B = EQM fui! environmental testing C = EQM reduced environmental testing D = QM _| E = FM level S F = FM level S with combined BI-aging G = FM level B H = FM level B with combined BI-aging I = FM + group C Temp驩rature range/Stability A = 0°C to +70°C, ± 0.05 ppm _ B = -20°C to +70°C, ± 0.1 ppm C = -40°C to +70°C, ± 0.25 ppm Supply voltage 1 = 9V -1 2 = 12V Wave form _|...
