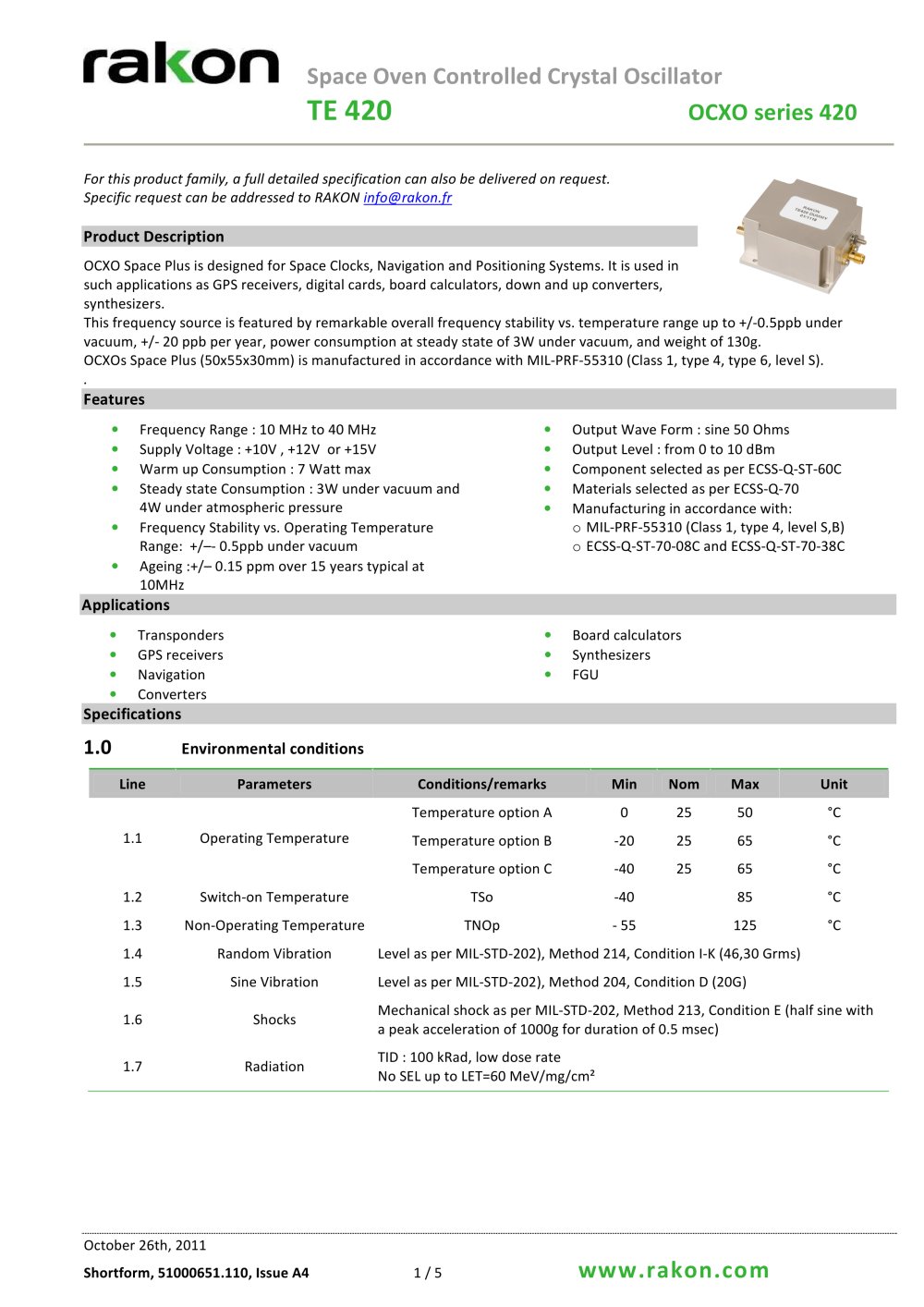

Space Oven Controlled Crystal Oscillator TE 420 OCXO sries 420 For this product family, a full detailed spcification can also be delivered on request. Sp驩cifie request can be addressed to RAKON info@rakon.fr Product Description OCXO Space Plus is designed for Space Clocks, Navigation and Positioning Systems. It is used in such applications as GPS receivers, digital cards, board calculators, down and up converters, synthesizers. This frequency source is featured by remarkable overall frequency stability vs. temperature range up to +/-0.5ppb under vacuum, +/- 20 ppb per year, power consumption at steady state of 3W under vacuum, and weight of 130g. OCXOs Space Plus (50x55x30mm) is manufactured in accordance with MIL-PRF-55310 (Class 1, type 4, type 6, level S). Features Frequency Range : 10 MHz to 40 MHz Օ Supply Voltage : +10V , +12V or +15V Warm up Consumption : 7 Watt max Օ Steady state Consumption : 3W under vacuum and 4W under atmospheric pressure Frequency Stability vs. Operating Temperature Range: +/-- 0.5ppb under vacuum Օ Output Wave Form : sine 50 Ohms Output Level : from 0 to 10 dBm Օ Component selected as per ECSS-Q-ST-60C Materials selected as per ECSS-Q-70 Օ Manufacturing in accordance with: o MIL-PRF-55310 (Class 1, type 4, level S,B) o ECSS-Q-ST-70-08C and ECSS-Q-ST-70-38C Ageing :+/- 0.15 ppm over 15 years typical at 10MHz Applications Օ Transponders Board calculators Օ GPS receivers Synthesizers Օ Navigation FGU Օ Converters Specifications 1.0 Environmental conditions Line Parameters Conditions/remarks Min Nom Max Unit Temperature option A 0 25 50 °C 1.1 Operating Temperature Temperature option B -20 25 65 °C Temperature option C -40 25 65 °C 1.2 Switch-on Temperature TSo -40 85 °C 1.3 Non-Operating Temperature TNOp - 55 125 °C 1.4 1.5 1.6 1.7 Random Vibration Sine Vibration Shocks Radiation Level as per MIL-STD-202), Method 214, Condition I-K (46,30 Grms) Level as per MIL-STD-202), Method 204, Condition D (20G) Mechanical shock as per MIL-STD-202, Method 213, Condition E (half sine with a peak acceleration of 1000g for duration of 0.5 msec) TID : 100 kRad, low dose rate No SEL up to LET=60 MeV/mg/cm2 October 26th, 2011 Shortform, 51000651.110, Issue A4 1 / 5 www.rakon.com
