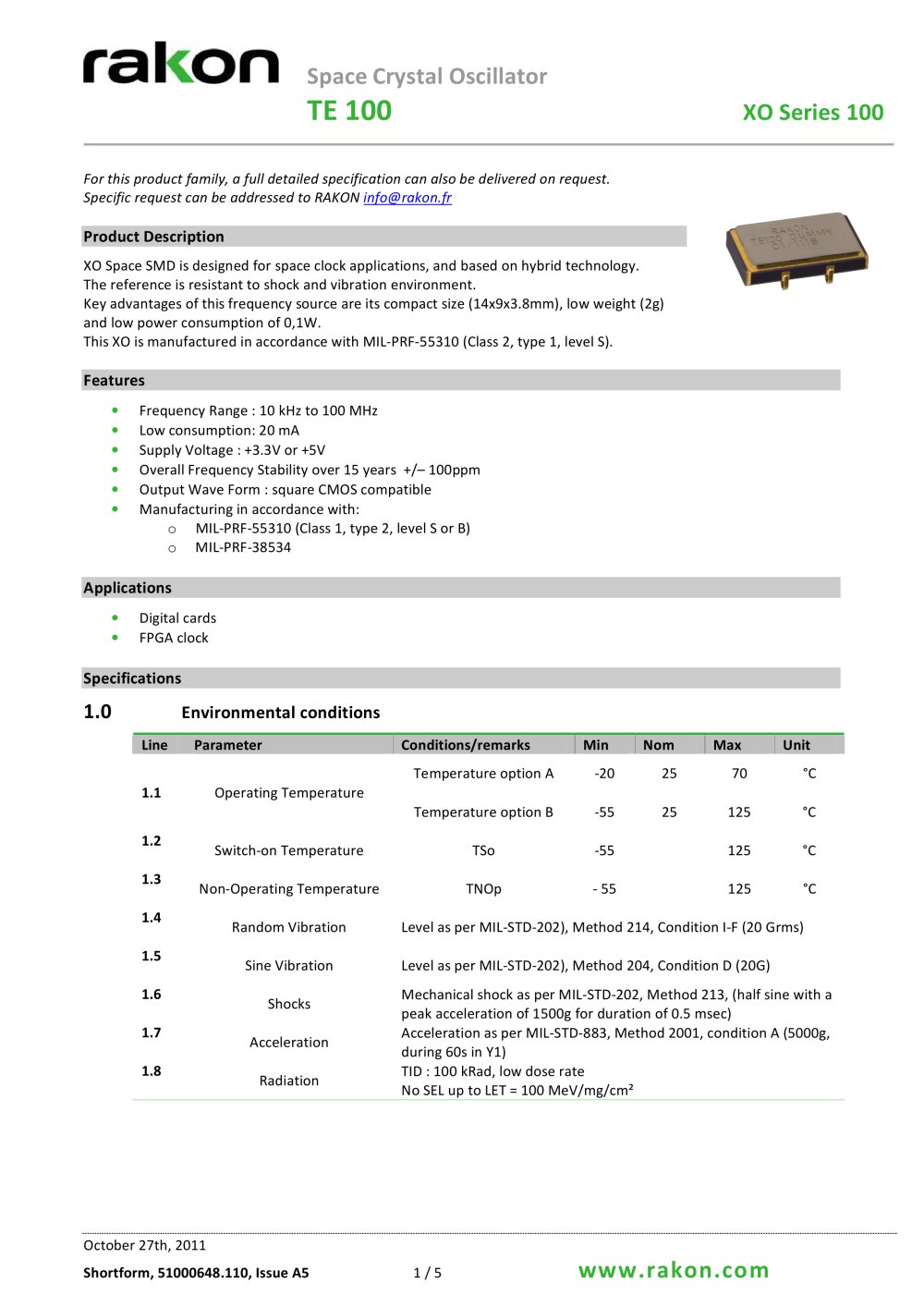

rai on Space Crystal Oscillator TE 100 XO Sries 100 For this product family, a full detailed spcification can also be delivered on request. Sp驩cifie request can be addressed to RAKON [email protected] Product Description XO Space SMD is designed for space clock applications, and based on hybrid technology. The reference is resistant to shock and vibration environment. Key advantages of this frequency source are its compact size (14x9x3.8mm), low weight (2g) and low power consumption of 0,1W. This XO is manufactured in accordance with MIL-PRF-55310 (Class 2, type 1, level S). Features Frequency Range : 10 kHz to 100 MHz Օ Low consumption: 20 mA Supply Voltage : +3.3V or +5V Օ Overall Frequency Stability over 15 years +/- 100ppm Output Wave Form : square CMOS compatible Օ Manufacturing in accordance with: o MIL-PRF-55310 (Class 1, type 2, level S or B) o MIL-PRF-38534 Applications Digital cards Օ FPGA clock Specifications 1.0 Environmental conditions Line Parameter Conditions/remarks Min Nom Max Unit Temperature option A -20 25 70 °C Temperature option B -55 25 125 °C TSo -55 125 °C TNOp - 55 125 °C 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 Operating Temperature Switch-on Temperature Non-Operating Temperature Random Vibration Sine Vibration Shocks Acceleration Radiation Level as per MIL-STD-202), Method 214, Condition I-F (20 Grms) Level as per MIL-STD-202), Method 204, Condition D (20G) Mechanical shock as per MIL-STD-202, Method 213, (half sine with a peak acceleration of 1500g for duration of 0.5 msec) Acceleration as per MIL-STD-883, Method 2001, condition A (5000g, during 60s in Y1) TID : 100 kRad, low dose rate No SEL up to LET = 100 MeV/mg/cm2 October 27th, 2011 Shortform, 51000648.110, Issue A5 1 / 5 www.rakon.com

Shortform table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } Space Crystal Oscillator TE 100 XO Sries 100 2.0 Electrical interface Line Parameters Conditions/remarks Min Nom Max Unit 2.1 Power supply Supply option 1 3.13 3.3 3.465 V Supply option 2 4.5 5 5.5 V 10 kHz < Frequency < 30 13 15 18 pF MHz, In parallel with 1 kW 2.2 Load Impdance 30 MHz < Frequency <...

rai on Space Crystal Oscillator TE 100 XO Sries 100 4.0 Mechanical features Weight 2 grams 5.0 Pin description Line Pin number Name Description 5.1 1 Not connected 5.2 2 Ground Electrical Ground 5.3 3 Fout Frequency output 5.4 4 Vcc Supply voltage input October 27th, 2011 Shortform, 51000648.110, Issue A5 3 / 5 www.rakon.com

Space Crystal Oscillator TE 100 XO Sries 100 6.0 Model philosophy Representativeness Engineering Engineering Qualification Flight Flight Model Model Qualification Model Model Model + Lot Acceptance test (option A) (options B, C) (option D) (options E, F, G, H) (option I) Component Passive commercial parts Active parts from the same manufacturer of HiRel parts Mil Grade parts procured from the same manufacturer of HiRel parts HiRel Parts HiRel Parts HiRel Parts Crystal material Swept quartz Swept quartz Swept quartz ESCC3501 Swept quartz Swept quartz Stabilized Stabilized Stabilized ESCC3501 Stabilized...

Space Crystal Oscillator TE 100 XO Sries 100 10.0 Ordering part number dfinition The part number breakdown is defined as follows: TE 100 E A 1 1 1 24M000000 RAKON -1 S驩ries - Model A = EM B = EQM full environmental testing C = EQM reduced environmental testing D = QM E = FM level S F = FM level S with combined BI-aging G = FM level B H = FM level B with combined BI-aging I = FM + group C Temprature range/Overall Stability A = -20C to +70C, ± 70 ppm B = -55C to +125C, ± 100 ppm Supply voltage 1 = 3.3V - 2 = 5V Wave form 1 = Square AHCMOS Frequency adjustment 1 = internal calibration Frequency,...
