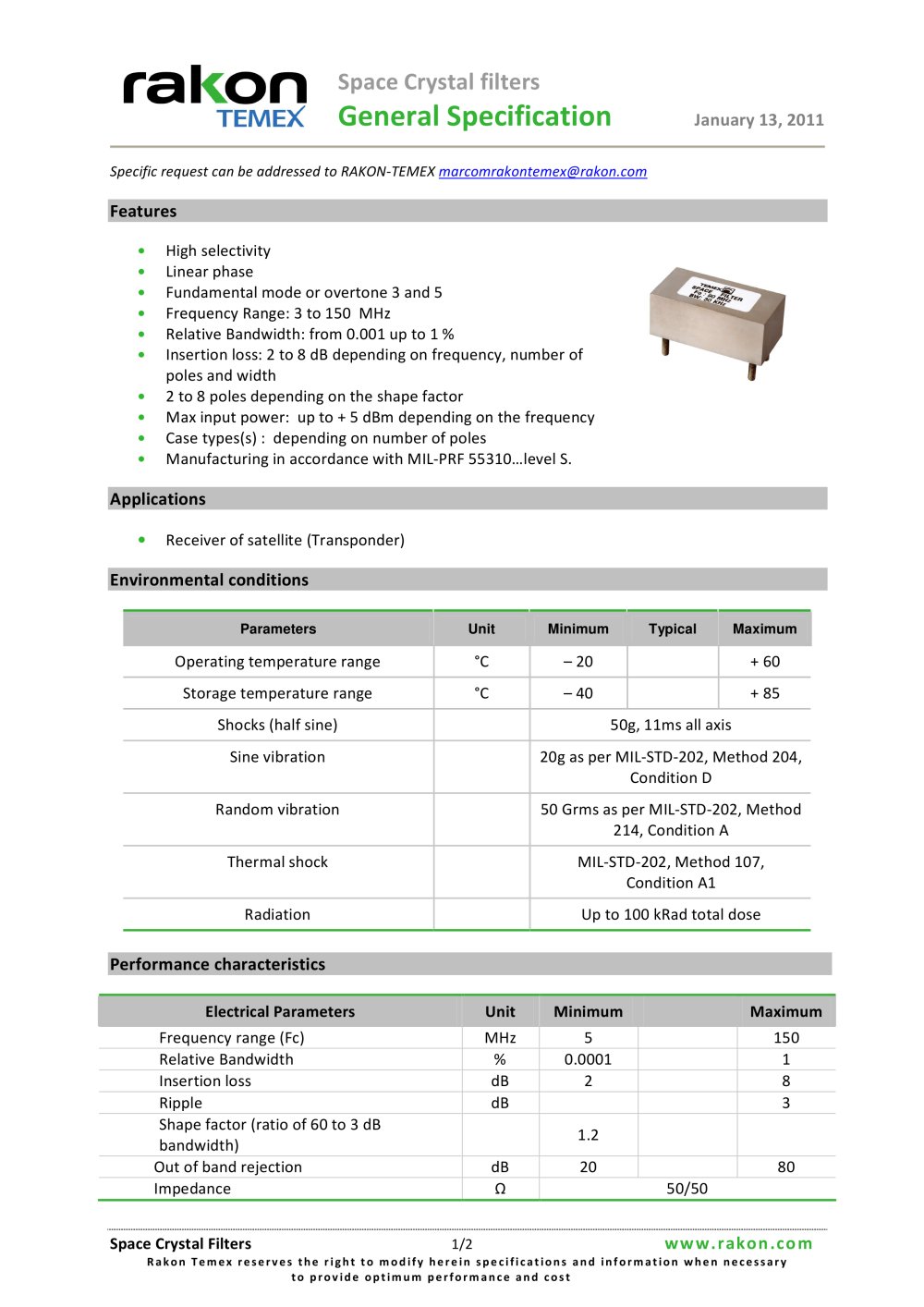

Space Crystal filters General Specification - 1

Space Crystal filters General Specification January 13, 2011 Space Crystal Filters 1/2 www.rakon.com Rakon Temex reser ves the r i ght to mod i fy here in spe c i f i cat ions and informat ion whe n neces s ar y to prov ide opt imum per formance and cos t Specific request can be addressed to RAKON-TEMEX marcomrakontemex@rakon.com Features · High selectivity · Linear phase · Fundamental mode or overtone 3 and 5 · Frequency Range: 3 to 150 MHz · Relative Bandwidth: from 0.001 up to 1 % · Insertion loss: 2 to 8 dB depending on frequency, number of poles and width · 2 to 8 poles depending on the shape factor · Max input power: up to + 5 dBm depending on the frequency · Case types(s) : depending on number of poles · Manufacturing in accordance with MIL-PRF 55310…level S. Applications · Receiver of satellite (Transponder) Environmental conditions Parameters Unit Minimum Typical Maximum Operating temperature range °C – 20 + 60 Storage temperature range °C – 40 + 85 Shocks (half sine) 50g, 11ms all axis Sine vibration 20g as per MIL-STD-202, Method 204, Condition D Random vibration 50 Grms as per MIL-STD-202, Method 214, Condition A Thermal shock MIL-STD-202, Method 107, Condition A1 Radiation Up to 100 kRad total dose Performance characteristics Electrical Parameters Unit Minimum Maximum Frequency range (Fc) MHz 5 150 Relative Bandwidth % 0.0001 1 Insertion loss dB 2 8 Ripple dB 3 Shape factor (ratio of 60 to 3 dB bandwidth) 1.2 Out of band rejection dB 20 80 Impedance Ù 50/50

Open the catalog to page 1

Space Crystal filters General Specification - 2

Space Crystal filters General Specification January 13, 2011 Space Crystal Filters 2/2 www.rakon.com Rakon Temex reser ves the r i ght to mod i fy here in spe c i f i cat ions and informat ion whe n neces s ar y to prov ide opt imum per formance and cos t Mechanical characteristics Example of package for 8 poles filter

Open the catalog to page 2
