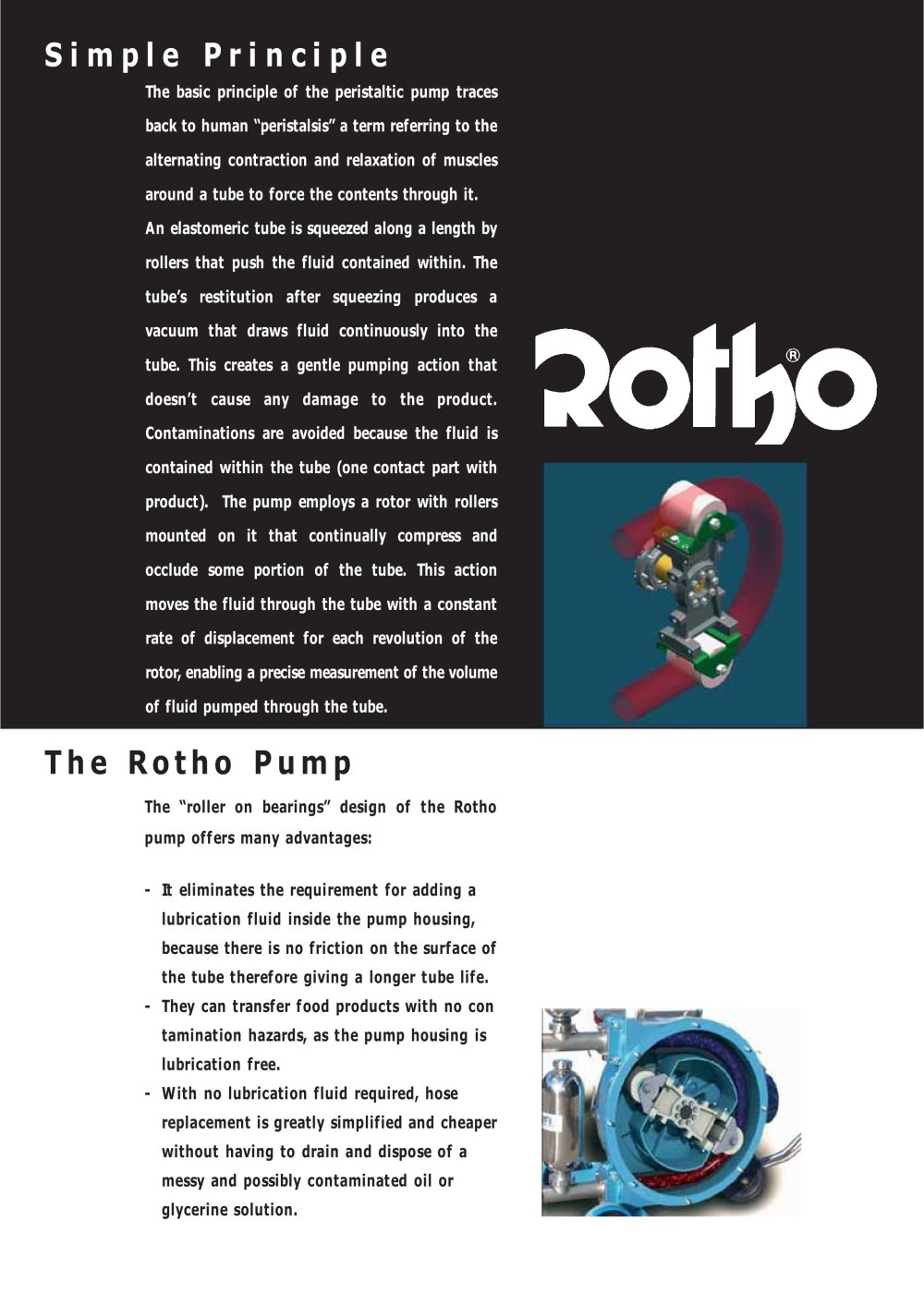

The basic principle of the peristaltic pump tracesback to human peristalsisӔ a term referring to the alternating contraction and relaxation of muscles around a tube to force the contents through it. An elastomeric tube is squeezed along a length by rollers that push the fluid contained within. The tubes restitution after squeezing produces a vacuum that draws fluid continuously into the tube. This creates a gentle pumping action that doesnҒt cause any damage to the product. Contaminations are avoided because the fluid is contained within the tube (one contact part with product). The pump employs a rotor with rollers mounted on it that continually compress and occlude some portion of the tube. This action moves the fluid through the tube with a constant rate of displacement for each revolution of the rotor, enabling a precise measurement of the volume of fluid pumped through the tube. > The roller on bearingsӔ design of the Rothopump offers many advantages: -It eliminates the requirement for adding a lubrication fluid inside the pump housing, because there is no friction on the surface of the tube therefore giving a longer tube life. -They can transfer food products with no contamination hazards, as the pump housing is lubrication free.-With no lubrication fluid required, hose replacement is greatly simplified and cheaper without having to drain and dispose of a messy and possibly contaminated oil or glycerine solution. >

Advantages > Fields of application No sealsNo valves Self priming Only tube to replace Reverse flow by reversing motor No contact between product andmechanical partsCan run dry without damage Able to pump products with solidparts insideSuitable for CIP applications CeramicChemical Water and wastetreatmentsFood & beverage Metallurgy Pulp paper Construction Painting and pigment Ink Mining Uses > Transfer, feed, meter, filter of: Fragile or sensitive fluidsCompound fluids Abrasive and corrosive fluids Non pollutable or pollutant fluids size="-3">

The Rotho pump is excellent on abrasive slurries where it has hadmuch more success than other pumps. The Rotho pump parts stay out of the product zone and the hose is the only one thing that is in contact with the product, this keeping abrasive wear to a minimum. Products that crystallize are also well pumped by the Rotho pump. There are no valves or glands so the eventual build up of crystals could not clog the pump. > With corrosive fluids the hose selection is of paramount importance to the longevity of the pump. With the correct hose selection and no other contact mechanical parts in...

It is an elastomeric tube right for duty service andits selection depends by the product to pump, pressure, temperature; it is a multilayer hose with 2, 4 or 6 textile insert reinforcement depends by its dimension and pressure to win. >

Flanges DIN; ANSI;DIN 11851 Threaded , Clamp, Tri-clamp, RJT, SMS, BSP threaded In: S.S. 316, PVC, Polypropylene, Titanium > The pulse dampeners are suggested in case of negative suction and pressure over 2 bar; they ensure a better pump working and a longer tube life.Three types are available: MembraneEmpty vesselFlexible tube >

The models of MS and SDF Serie can be equipped of feeder to feed products with solid parts or sensitive parts.All Rotho pumps (optional for PSF Serie) are equipped of leak detector to provide early indication of hose failure. This is a float type sensor that is located at the lowest point of the pump housing. This device helps the pump to suck viscous and thicky products. Feeder Leak detector Vacuum system >

PSF PSF > Capacity/h from 1lt up to 3.100 ltPressure up to 8-15 bar Tubes diameter 5; 10; 16; 26 mm PSF1 PSF2 PSF3 PSF3-SMS1 MS2 MS3SF100 DF100 MS MS > Capacity/h from 3.000lt up to 18.000 ltPressure up to 8-15 bar Tubes diameter 40; 55; 68 mm SDF SDF > Capacity/h from 10.000lt up to 60.000 lt Pressure up to 8-15 bar Tubes diameter 76 mm size="-1">
