MiniRAE Lite Datasheet
2Pages

Catalog excerpts

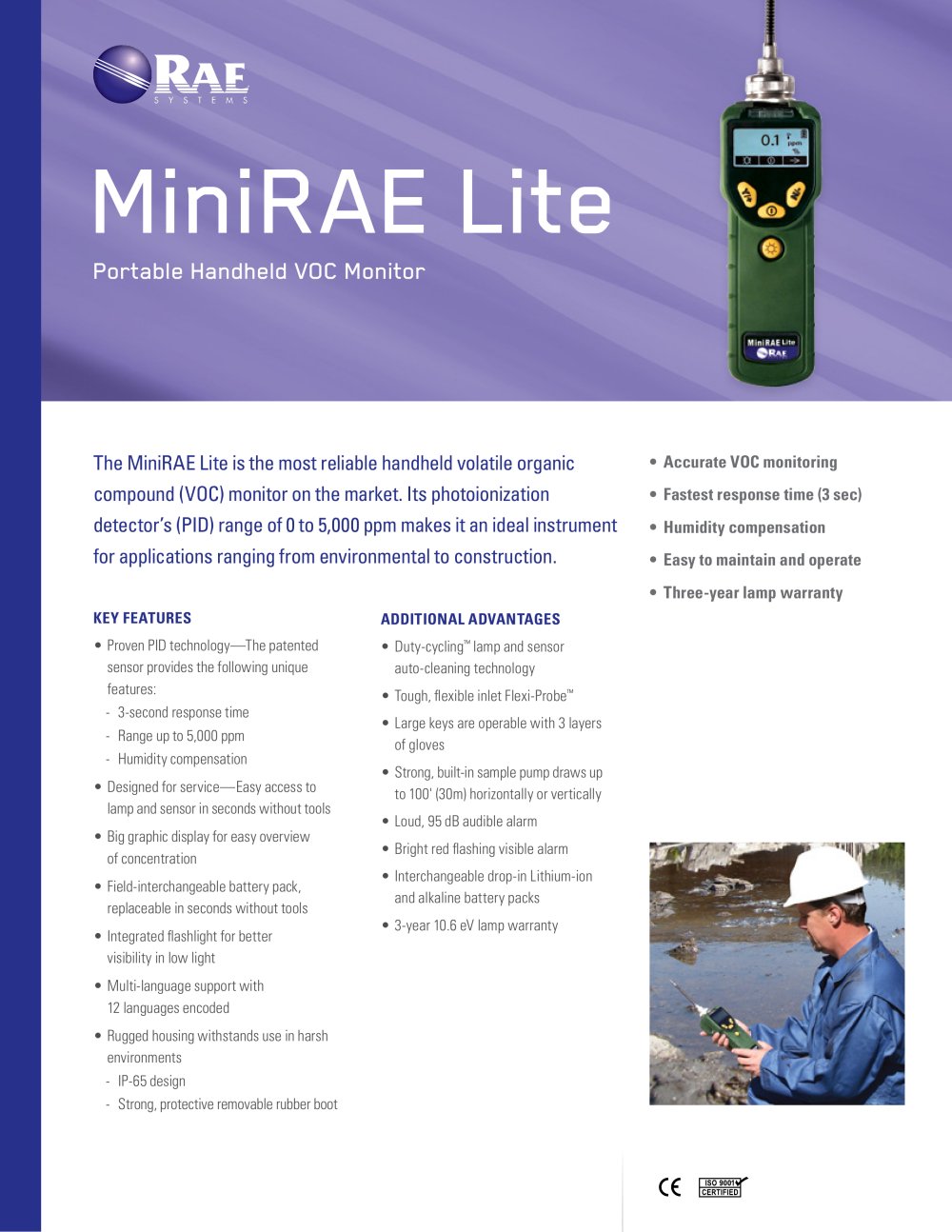

MiniRAE Lite Portable Handheld VOC Monitor The MiniRAE Lite is the most reliable handheld volatile organic compound (VOC) monitor on the market. Its photoionization • Fastest response time (3 sec) detector’s (PID) range of 0 to 5,000 ppm makes it an ideal instrument • Humidity compensation for applications ranging from environmental to construction. • Easy to maintain and operate • Three-year lamp warranty Additional Advantages • Proven PID technology—The patented sensor provides the following unique features: - 3-second response time - Range up to 5,000 ppm - Humidity compensation • Duty-cycling™ lamp and sensor auto-cleaning technology • Designed for service—Easy access to lamp and sensor in seconds without tools • Big graphic display for easy overview of concentration • Field-interchangeable battery pack, replaceable in seconds without tools • Integrated flashlight for better visibility in low light • Multi-language support with 12 languages encoded • Rugged housing withstands use in harsh environments - IP-65 design - trong, protective removable rubber boot S • Tough, flexible inlet Flexi-Probe™ • Large keys are operable with 3 layers of gloves • Strong, built-in sample pump draws up to 100' (30m) horizontally or vertically • Loud, 95 dB audible alarm • Bright red flashing visible alarm • Interchangeable drop-in Lithium-ion and alkaline battery packs • 3-year 10.6 eV lamp warranty

Open the catalog to page 1

MiniRAE Lite Portable Handheld VOC Monitor MiniRAE Lite Ordering Options Sensor Specifications Monitor only includes: • MiniRAE Lite Monitor, Model PGM-7300 • Flex-I-Probe • External filter • Green rubber boot Monitor Specifications Size Photoionization sensor with standard 10.6eV lamp • Alkaline battery adapter • External field-replaceable lithium-ion battery pack, if specified Operating Hours 12 hours of operation on alkaline battery adapter (12 hours with lithium-ion battery pack) Display Graphic 4 lines, 28 x 43 mm, with LED back light 1 operation and 2 programming keys, 1 flashlight...

Open the catalog to page 2
