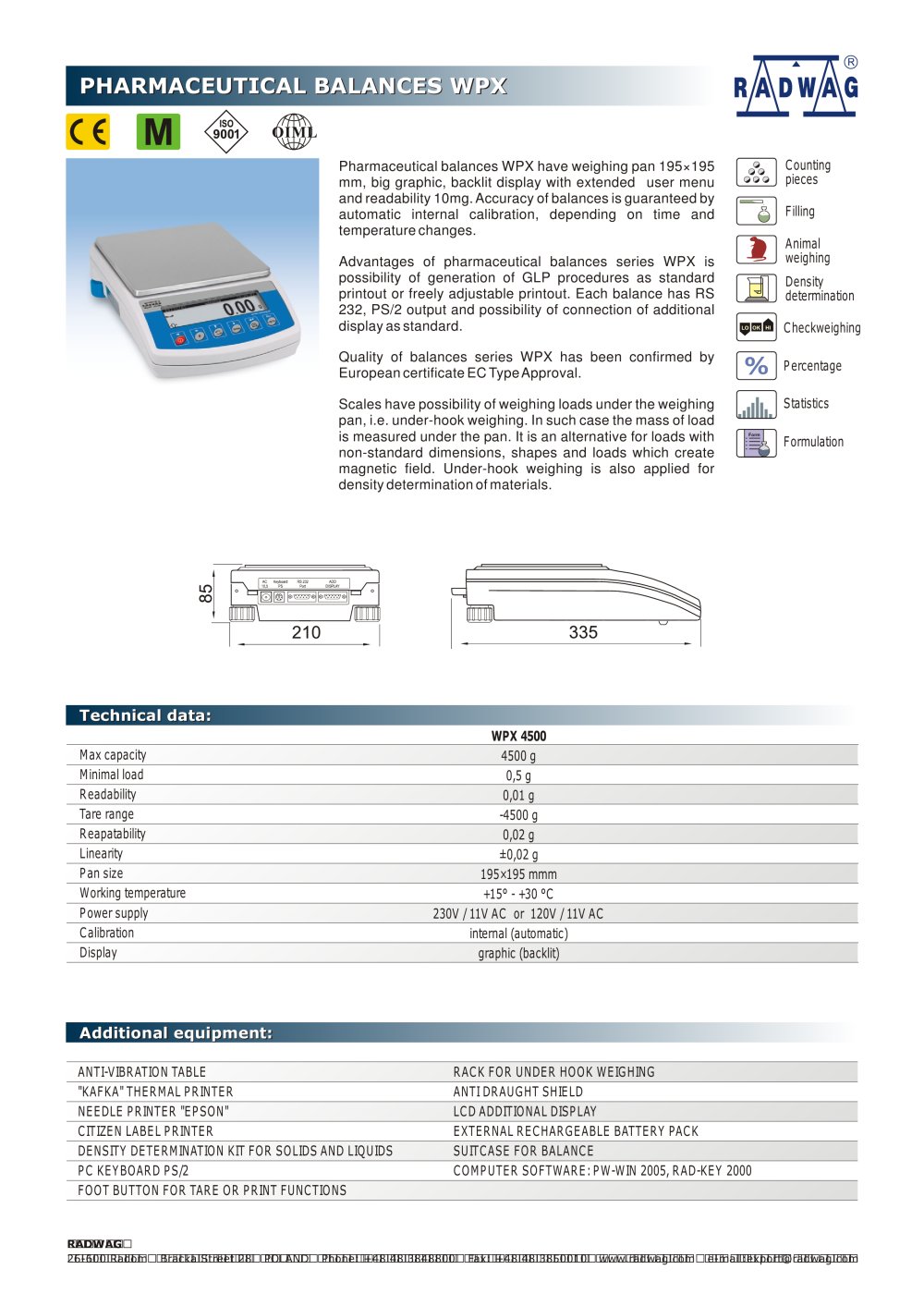

PRECISION BALANCES WPX

Product catalog summary

Overview: The WPX series of pharmaceutical balances are designed with a weighing pan size of 195×195 mm and feature a large, backlit graphic display with an extended user menu. These balances offer a readability of 10 mg and ensure accuracy through automatic internal calibration that adjusts for time and temperature changes.

Key Features:

GLP Procedures: The WPX balances can generate GLP procedures as either standard or customizable printouts.
Connectivity: Each balance includes RS 232 and PS/2 outputs, with the option to connect an additional display.
Certification: The quality of the WPX series is validated by the European certificate EC Type Approval.
Under-Hook Weighing: This feature allows for weighing loads beneath the pan, suitable for non-standard shapes or magnetic materials, and is useful for density determination.

Technical Specifications:

Max Capacity: 4500 g
Minimal Load: 0.5 g
Readability: 0.01 g
Tare Range: -4500 g
Repeatability: 0.02 g
Linearity: ±0.02 g
Pan Size: 195×195 mm
Working Temperature: +15° to +30 °C
Power Supply: 230V / 11V AC or 120V / 11V AC
Calibration: Internal (automatic)
Display: Graphic (backlit)

Functional Capabilities: The WPX balances support various functions including counting pieces, checkweighing, density determination, filling, animal weighing, formulation, percentage, and statistics.

Additional Equipment: Options include an anti-vibration table, thermal and needle printers, a density determination kit, a PC keyboard, a foot button for tare or print functions, an anti-draught shield, an additional LCD display, an external rechargeable battery pack, a suitcase for the balance, and computer software (PW-WIN 2005, RAD-KEY 2000).

Contact Information: RADWAG, 26-600 Radom, Bracka Street 28, Poland. Phone: +48 48 3848800, Fax: +48 48 3850010, Website: www.radwag.com, Email: [email protected]
