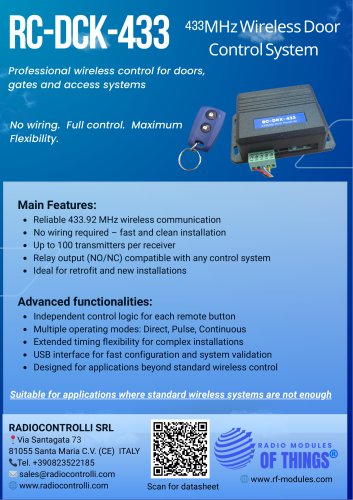

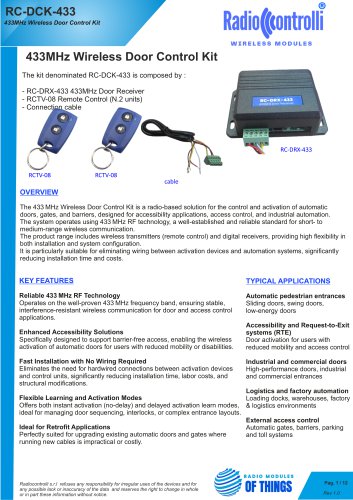

RC-DCK-433 433MHz Wireless Door Control Kit 433MHz Wireless Door Control Kit The kit denominated RC-DCK-433 is composed by : - RC-DRX-433 433MHz Door Receiver - RCTV-08 Remote Control (N.2 units) - Connection cable OVERVIEW The 433 MHz Wireless Door Control Kit is a radio-based solution for the control and activation of automatic doors, gates, and barriers, designed for accessibility applications, access control, and industrial automation. The system operates using 433 MHz RF technology, a well-established and reliable standard for short- to medium-range wireless communication. The product range includes wireless transmitters (remote control) and digital receivers, providing high flexibility in both installation and system configuration. It is particularly suitable for eliminating wiring between activation devices and automation systems, significantly reducing installation time and costs. TYPICAL APPLICATIONS Reliable 433 MHz RF Technology Operates on the well-proven 433 MHz frequency band, ensuring stable, interference-resistant wireless communication for door and access control applications. Automatic pedestrian entrances Sliding doors, swing doors, low-energy doors Enhanced Accessibility Solutions Specifically designed to support barrier-free access, enabling the wireless activation of automatic doors for users with reduced mobility or disabilities. Accessibility and Request-to-Exit systems (RTE) Door activation for users with reduced mobility and access control Fast Installation with No Wiring Required Eliminates the need for hardwired connections between activation devices and control units, significantly reducing installation time, labor costs, and structural modifications. Industrial and commercial doors High-performance doors, industrial and commercial entrances Logistics and factory automation Flexible Learning and Activation Modes Loading docks, warehouses, factory Offers both instant activation (no-delay) and delayed activation learn modes, & logistics environments ideal for managing door sequencing, interlocks, or complex entrance layouts. External access control Ideal for Retrofit Applications Automatic gates, barriers, parking Perfectly suited for upgrading existing automatic doors and gates where and toll systems running new cables is impractical or costly. Radiocontrolli s.r.l refuses any responsibility for irregular uses of the devices and for any possible lack or inaccuracy of the data and reserves the right to change in whole or in part these information without notice.

433MHz Wireless Door Control Kit PRODUCT INFORMATION RC-DCK-433 — -> 433MHz Wireless Door Control Kit MECHANICAL DIMENSION Radiocontrolli s.r.l refuses any responsibility for irregular uses of the devices and for any possible lack or inaccuracy of the data and reserves the right to change in whole or in part these information without notice.

433MHz Wireless Door Control Kit PRODUCT DESCRIPTION Radiocontrolli s.r.l refuses any responsibility for irregular uses of the devices and for any possible lack or inaccuracy of the data and reserves the right to change in whole or in part these information without notice.

RC-DCK-433 433MHz Wireless Door Control Kit Device Operating Mode On each receiving device, up to 100 RCTV-08 type remote controls can be configured. Each button of the remote control can be configured independently. There are three possible operating modes: 1) DIRECT MODE 2) PULSE MODE 3) CONTINUOS MODE BUTTON 1 - DIRECT MODE - PULSE MODE - CONTINUOS MODE BUTTON 2 - DIRECT MODE - PULSE MODE - CONTINUOS MODE DIRECT MODE BUTTON 1 allows the relay to be closed directly, while BUTTON 2 allows the relay to be opened. In both cases, it is possible to program a delay for both relay activation and deactivation....

RC-DCK-433 433MHz Wireless Door Control Kit PULSE MODE It is possible to program both the delay time T1 and the pulse time T2. This applies to both buttons on the remote control: Button 1 and Button 2. T1 can be programmed from 0 to 250 seconds, and T2 can be programmed from 1 to 250 seconds. PULSE Time Programmable T1 Delay Time Programmable CONTINUOS MODE In this operating mode, when a button on the remote control is pressed, the relay will activate and remain active as long as the button is held down. when user pressed button Radiocontrolli s.r.l refuses any responsibility for irregular uses...

RC-DCK-433 433MHz Wireless Door Control Kit Quick Start Guide 1) Power on the device: (pin 1 = VDC and pin 2 = GND) 2) Additionally, monitor the relay status using pins 3 and 4. 3) Connect the Personal computer to the USB connector check the correct recognition of the drivers CH340 in case of problems these drivers can be downloaded from the website: https://www.wch-ic.com/downloads/ch341ser_exe.html For user to start quickly to use the device you can use a RadioControlli application downloadable from the following link : 2 OPEN Serial Port Radiocontrolli s.r.l refuses any responsibility for...

RC-DCK-433 433MHz Wireless Door Control Kit Radiocontrolli s.r.l refuses any responsibility for irregular uses of the devices and for any possible lack or inaccuracy of the data and reserves the right to change in whole or in part these information without notice.

RC-DCK-433 433MHz Wireless Door Control Kit Quick Start Guide ==> ADD DEVICES 1) Open the serial port 2) Please log in by entering the correct password. 3) Press the button labeled ‘ADD DEVICES’. After being pressed, it turns green. 4) Press button N. 2 of the remote control; you will obtain the following result. Click on the blue row and right-click the mouse; the option to enter SET MODE will appear. Blue Line SET MODE Radiocontrolli s.r.l refuses any responsibility for irregular uses of the devices and for any possible lack or inaccuracy of the data and reserves the right to change in whole...

RC-DCK-433 433MHz Wireless Door Control Kit Quick Start Guide ==> SET MODE After pressing the ‘SET MODE’ button, the window shown below will appear. As you can see, it allows you to set the two remote control buttons (B= and B1) in : - DIRECT MODE - PULSE MODE - CONTINUOS MODE The two remote control buttons can be configured differently; For example, button B0 can be set to DIRECT MODE and button B1 to PULSE MODE, or to any other available configuration. DIRECT MODE Enter the desired delay value for the two buttons (in seconds) in the yellow field, then press the SUBMIT button. The maximum allowable...
