Introduction

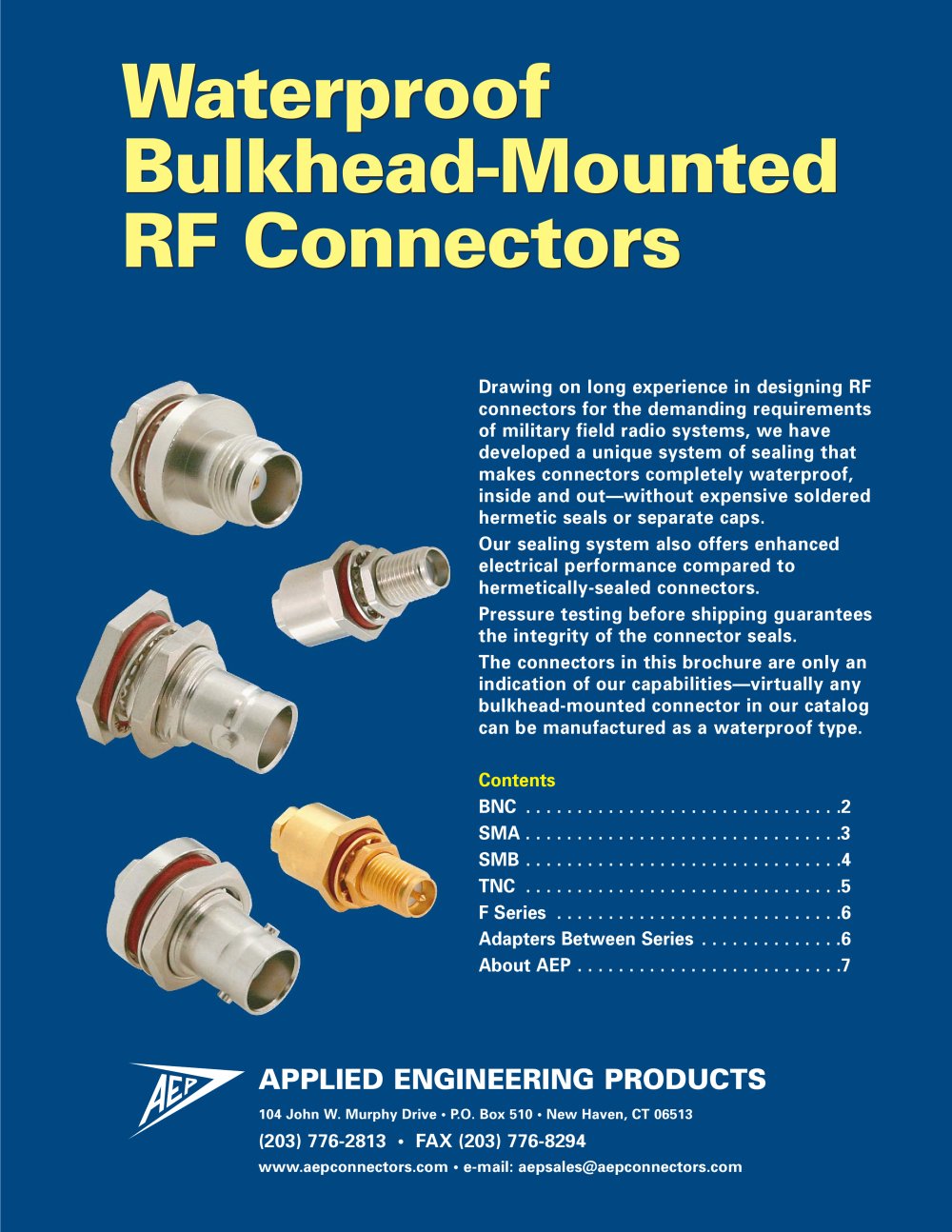

Applied Engineering Products (AEP) specializes in designing waterproof bulkhead-mounted RF connectors, primarily for military field radio systems. These connectors are designed to be completely waterproof without the need for expensive soldered hermetic seals or separate caps, offering enhanced electrical performance.

Connector Types and Specifications

BNC Connectors: Made with a brass body, nickel or silver plated, and beryllium-copper captive contact, gold plated. They are waterproof to 1 meter for 30 minutes and meet MIL-PRF-39012 requirements. Options include crimp or solder-clamp attachments for various cable types.
SMA Connectors: Feature a stainless steel body, nickel or gold plated, with beryllium-copper captive contact. They are available in standard and polarized mating versions, suitable for RG-178 cables.
SMB Connectors: Constructed with a brass body, flat black chrome plated, and gold plated contacts. They include a hood to prevent mismating and are waterproof to 3 PSI pressure.
TNC Connectors: Similar to BNC connectors, they are made with a brass body, nickel plated, and are waterproof to 1 meter for 30 minutes.
F Series and Adapters: Include brass body receptacles and stainless steel adapters, with options for various plating and contact termination types.

About AEP
Founded in 1973, AEP emphasizes strong vendor/customer relationships and invites customers to tour their facilities. They offer a wide range of coaxial connectors and cable assemblies, including BNC, N, TNC, MCX, MMCX, SMA, SMB, and more.

Additional Products
AEP provides a comprehensive line of coaxial connectors and cable assemblies, including flexible and semi-rigid options, as well as adapters within and between series.

Contact Information
For more information, visit www.aepconnectors.com or contact AEP at (203) 776-2813.

Catalog excerpts

BNC Waterproof Bulkhead Connectors Straight Cable Jack 0 .507*- 0 .130 Drawing = 2X actual size. .473* * Recommended mounting hole size .500-28 UNEF-2A .625 hex .219 hex .687 hex Mounting-Gasket AEP Part Number: 6501-7551-219 Characteristics: Brass body, nickel plated. Օ Beryllium-copper captive contact, gold plated. Clamp-type hardware for Times RD-316 cable. Օ Waterproof to 1 meter for 30 minutes. Meets MIL-PRF-39012 requirements. Options: Օ Silver or gold plated body. Crimp attachment for flexible cable, or solder-clamp for semi-rigid cable. Օ Available for most RG, M17, or semi-rigid...

Open the catalog to page 2

■ SMA Waterproof Bulkhead Connectors Straight Cable JackStandard Mating 0.257 250-36 UNS-2A Drawing = 3X actual size. 250 h ex f Recommended mounting hole size 313hex^.Ring .437 hex- AEP Part Number: 9153-7553-002 ^haracteristics: Stainless steel body, nickel plated. Beryllium-copper captive contact, gold plated. Clamp-type hardware for RG-178 cable. Meets MIL-PRF-39012 requirements. Options: ו Gold plated or passivated body. Crimp attachment for flexible cable, or solder-clamp for semi-rigid cable. Օ Available for most RG, M17, or semi-rigid cables up to .215 outer diameter. Straight Cable...

Open the catalog to page 3

SMB Waterproof Bulkhead Connectors Straight Cable JackHex Mounting Nut SMBjackח Drawing«3Xactualsize< 500 he* *Recommendedmountingholesj AEP Part fMumber: 2027-3551-403 Characteristics; 1 Brass body body, flat black chrome plateti.  Beryllium-copper captive contact, gold plated. - Clamp-type hardware for RG-316 cable. ■ Hood over rnating end to prevenl mismating. Waterproof to 3 PSI pressure. Options: ■ Gold or nickel plated body. Օ Crimp attachaient for flexible cable, or solder-clamp for serni-rigid cable. Available for most RG, M17, or semi-rigid cables up to .125 outer diameter. Straight...

Open the catalog to page 4

TNC Waterproof Bulkhead Connectors Straight Cable Jack j.507 Drawing -2X octuol 31« .500-28 UNEF-2A ' ftocommcndad mountmg ho le sire 625 hex Mounbng Gasket AEP Part Number: 6002-7551-202 Characleristics: ■ Brass body, nickel plated. Beryllium-copper captive contact, gold plated. > Clamp-type hardware for RG-178 cable. Օ Meets MIL-PRF-39012 requirements. Options: Silver or gold plated body. Օ Crimp attachaient for flexible cable, or solder-clamp for serni-rigid cable. Available for most RG, M17, or semi-rigid cables up to .215 outer diameter. Straight Cable Jack a 507 Drawmg -* 2X octuol zur...

Open the catalog to page 5

Waterproof Bulkhead Connectors and Adapters F Sries Rceptacle 375-32 UNEF-2A Both sid Drawmg -3X octuol 31« 0 Ring 562 hex AEP Part Number: 8572-7511-000 Characteristics: 驕 Brass body, nickel plated. Beryllium-copper captive contact, gold plated. Օ Screw-in mounting. Options: Gold or nickel plated body. Օ Other contact termination types <tab, slotted, solder pot, threaded). SMA to SSMC Adapter SMA Jack Drawing ■ 3X actualai^e SSMC Jack «-40UNF-2A Recommended mounting holese IUNS-2A" LJ 313 hex闗rZt. 0-Rmg .437 hex AEP Part Number: 5944-1503-000 Characteristics: Stainless steel body, gold plated....

Open the catalog to page 6

About AEP Since oir foundation in 1973. we hve always believed that having our customers take a look "inside AEP* is important il fostering stroag vendor/customer relationships. We are proud of our physical plant and equipmont but evei more so of our dedicated staff.Whan customers see fir%t-liiMirl how AEP's people keep a constant focus on maintaining and improviag cuslomei service and satisfaction, the reason for our consistently strong on-time delivery and quality recordsbecomes clear We invite you to see for yourself. Call us to arrange a plant touror if you cant make a visit ask for your...

Open the catalog to page 7
