RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)

Product catalog summary
Introduction
Radiall is a prominent manufacturer of coaxial connectors, cables, and assemblies, utilizing advanced technologies like foam PTFE wrapping. They offer five standard cable ranges for sectors such as telecom, military, instrumentation, medical, and broadcast.
Designing a Custom Cable Assembly
Key requirements include selecting components like coaxial cables, connectors, optional boots or sleeves, and specifying length, marking, and connector orientation. Additional dimensions are needed for pigtails.
Specifying the Right Cable
Radiall provides various cable types:
  • RG Flexible Cables: Standardized for military RF and microwave applications, compliant with MIL-C-17 specifications.
  • Eco-friendly Low Loss Cables: Cost-effective, halogen-free, and flame retardant, designed for optimized electrical and environmental requirements.
  • Hand-formable Cables: Balance performance and flexibility, allowing easy routing and repositioning.
  • Corrugated Cables: Feature a corrugated tube for shielding and bendability, suitable for outdoor long-length transmission lines.
  • Semi-rigid Cables: Offer high precision forming and optimal shielding, providing the highest electrical performance.
Finder Guide - Cables vs Insertion Loss
A table compares different cable types and their insertion loss at various frequencies, highlighting performance in terms of dB/m and dB/ft across frequency bands from 1 GHz to 18 GHz.
Construction and Dimensions
Cables are described with specific materials and dimensions for components such as center conductors, dielectrics, inner shields, and jackets. Materials include Silver Plated Copper Covered Steel (SPCCS), Polyethylene (PE), Tinned Copper (TC), and Low Smoke Zero Halogen Polyethylene (LSZH PE).
Electrical Characteristics
Cables have characteristic impedances of either 50Ω or 75Ω, with operating frequency ranges from DC to 3 GHz or 6 GHz. Shielding effectiveness varies from 35 dB to 70 dB. Voltage withstanding capabilities range from 1,500 V rms to 8,000 V rms, and peak power ratings vary from 400 W to 1.8 kW.
Mechanical Characteristics
Recommended minimum bending radii are typically around 10 mm. Cable weights are given in grams per meter and pounds per foot.
Environmental Characteristics
Operating temperature ranges are specified, with some cables capable of withstanding temperatures from -55°C to +200°C. Fire resistance and halogen-free status are noted, with compliance to standards such as IEC 754-2 and UL1581 VW1.
Frequency/Attenuation and Power
Attenuation values are provided for various frequencies, along with maximum continuous wave power ratings at sea level and specified temperatures.
Application Notes
Cables are designed for specific applications such as TV/Video, networks, and miniature or space-saving uses. Alternatives like ECO316 and ECO316X offer improved electrical performance, environmental benefits, and cost-effectiveness.
Overview
This document provides detailed specifications and characteristics of various flexible cables designed by RADIALL, including their construction, electrical, mechanical, and environmental properties. The cables are primarily used for HDTV/Video applications and are designed to offer a balance between flexibility, electrical performance, and cost-effectiveness.
Specifications
  • RG400: Features a stranded Silver Plated Copper (SPC) conductor, solid PTFE dielectric, and SPC braid shields. Suitable for severe thermal conditions, with an operating frequency range of DC to 8 GHz and a peak power of 3 kW.
  • ECO230: Constructed with Oxygen Free Copper (OFC) and foam PE dielectric, offering better attenuation and screening effectiveness. Halogen-free and fire-resistant, with a frequency range of DC to 4 GHz and peak power of 3.3 kW.
  • LMR200: Known for flexibility and bendability, uses a solid copper conductor and foam PE dielectric. Suitable for cellular networks with a frequency range of DC to 6 GHz and peak power of 2.5 kW.
  • RG59: Designed for TV/Video applications, with a solid Copper Covered Steel (CCS) conductor and solid PE dielectric. Operates up to 1 GHz with a peak power of 2.7 kW.
  • RG393: Popular for high-frequency and severe thermal conditions, features a stranded SPC conductor and solid PTFE dielectric. Supports frequencies up to 11 GHz with a peak power of 8.3 kW.
Electrical Characteristics
  • Characteristic impedance varies between 50Ω and 75Ω depending on the cable type.
  • Shielding effectiveness ranges from 40 dB to over 90 dB.
  • Voltage withstanding capabilities range from 300 V rms to 10,000 V rms.
Mechanical Characteristics
  • Minimum bending radius and weight are provided for each cable type, indicating flexibility and ease of installation.
Environmental Characteristics
  • Operating temperature ranges from -55°C to +200°C, depending on the cable.
  • Fire resistance and halogen-free properties are specified where applicable.
Application Notes
  • Each cable type is recommended for specific applications based on its flexibility, frequency range, and environmental resistance.
  • RG400 and RG393 are noted for their high flexibility and suitability in severe conditions.
  • ECO230 is highlighted for its environmental benefits and cost-effectiveness.
  • LMR200 is recommended for cellular network applications due to its flexibility.
  • RG59 is dedicated to TV/Video applications due to its impedance characteristics.
Overview
This document provides detailed specifications and characteristics of various types of cables designed by RADIALL, including ECO393, ECO393X, RG214, and LMR400 type cables. These cables are designed for different applications, offering advantages in terms of electrical performance, environmental impact, and cost-effectiveness.
Specifications
  • Construction and Dimensions: The cables are constructed using materials such as Oxygen Free Copper (OFC), Silver Plated Copper (SPC), Aluminum Covered Copper (AlCC), and Tinned Copper (TC). The dielectric materials include foam and solid Polyethylene (PE), with jackets made from Low Smoke Zero Halogen Polyethylene (LSZH PE) or PolyVinyl Chloride (PVC).
  • Electrical Characteristics: The characteristic impedance is typically 50Ω ± 2Ω, with operating frequency ranges varying from DC to 20.4 GHz. Shielding effectiveness ranges from 65 dB to over 110 dB, and voltage withstanding capabilities range from 2,500 V to 10,000 V rms.
  • Mechanical Characteristics: Recommended minimum bending radii range from 25 mm to 50 mm, with weights varying from 70 g/m to 210 g/m.
  • Environmental Characteristics: Operating temperature ranges from -40°C to +105°C, with some cables being fire-resistant and halogen-free.
Performance and Applications
  • Frequency and Attenuation: Attenuation values are provided for various frequencies, with calculations based on specific formulas for each cable type.
  • Power Handling: Peak power capabilities range from 5.3 kW to 40 kW, depending on the cable type.
  • Applications: Suitable for use in cellular networks, TV/Video applications, and environments requiring high performance and flexibility. Recommended for feeder and jumper assemblies.
Advantages
  • Electrical Performance: Optimized construction allows for better attenuation and screening effectiveness.
  • Environmental Impact: Halogen and sulfur-free materials ensure no toxic emissions during fire exposure.
  • Cost-Effectiveness: Designed to offer high performance at competitive prices.
Conclusion
RADIALL cables, including ECO393 and ECO393X, provide a reliable and efficient solution for various applications, combining excellent electrical performance with environmental benefits and cost savings.
Technical Document Summary
1. Specifications
  • Operating Temperature Range: -40 to +85 °C (-40 to +185 °F) for some cables, and -65 to +150 °C (-85 to +302 °F) for others.
  • Fire Resistance: Some cables are fire-resistant (UL 1581 VW1 / IEC 332-1), while others are not applicable.
  • Halogen Free: Some cables are halogen-free (IEC 754-2), while others are not.
2. Frequency and Attenuation
  • Attenuation varies with frequency, with specific calculations provided for each cable type.
  • Maximum power capacity is specified for different frequencies, with values decreasing as frequency increases.
3. Construction and Dimensions
  • Materials used include SPCCS (Silver Plated Copper Covered Steel), PTFE (PolyTetraFluoroEthylene), and various shielding materials like copper tubing and tin-soaked braid.
  • Dimensions are provided in both millimeters and inches for center conductors, dielectrics, and shields.
4. Electrical Characteristics
  • Characteristic Impedance: Typically 50Ω ± 2Ω.
  • Operating Frequency Range: DC to 20 GHz.
  • Shielding Effectiveness: Ranges from 90 dB to 110 dB.
  • Voltage Withstanding: Up to 5,000 V rms for some cables.
  • Peak Power: Up to 3.4 kW for certain cables.
5. Mechanical Characteristics
  • Recommended Minimum Bending Radius: Varies by cable type, with specific values provided.
  • Weight: Specified in grams per meter and pounds per foot.
6. Environmental Characteristics
  • Operating Temperature Range: Varies by cable type, with specific ranges provided.
  • Fire Resistance: Some cables are fire-resistant, while others are not applicable.
  • Halogen Free: Some cables are halogen-free, while others are not.
7. Application Notes
  • Cables are designed for specific applications such as cellular networks, high-performance long-distance applications, and environments requiring high corrosion resistance and improved solderability.
  • Handformable cables are noted for their ease of routing and reshaping capabilities.
Overview
This document provides detailed technical specifications and application notes for various types of semi-rigid coaxial cables, primarily focusing on RG402 and RG401 standards. It includes construction details, electrical and mechanical characteristics, environmental conditions, and frequency/attenuation data.
Specifications
  • Construction: The cables are constructed with materials such as Silver Plated Copper (SPC), PolyTetraFluoroEthylene (PTFE), and Tin Plated Copper (TPC). Dimensions are provided in both millimeters and inches.
  • Electrical Characteristics: The cables have a characteristic impedance of 50Ω ± 1Ω, an operating frequency range from DC to 20 GHz, and a shielding effectiveness of 110 dB. Voltage withstanding is up to 5,000 V rms, with a peak power of 3.4 kW.
  • Mechanical Characteristics: The recommended minimum bending radius varies by cable type, with weights provided in grams per meter and pounds per foot.
  • Environmental Characteristics: Operating temperature ranges from -40 to +125 °C, with no fire resistance or halogen-free properties.
Frequency/Attenuation and Power Calculations
  • Attenuation is calculated using the formula (0.30 x √f GHz) + (0.04 x f GHz), and power is calculated as 315 / √f GHz.
  • Tables provide typical attenuation and maximum power values at various frequencies, highlighting the performance of different cable types.
Application Notes
  • RG402 cables are preferred for high-frequency applications requiring low attenuation and high screening effectiveness.
  • RG401 cables are used for applications requiring very low attenuation and high power, with caution advised for the reduced operating temperature range.
  • Different outer conductor materials (e.g., aluminum, tin) offer benefits such as improved corrosion resistance, solderability, and ease of conformability.
Additional Information
  • Radiall is a global leader in interconnect solutions, serving various markets including telecommunications, aerospace, and medical.
  • The document includes data on ultra-low loss SHF cable ranges, highlighting their attenuation and power characteristics across different frequencies.
Company Overview
Radiall offers a wide range of standard and custom products, ensuring affordability and adaptability to specific equipment and application needs. The company has a global presence with sales, engineering support, R&D, and manufacturing facilities across North America, Europe, and Asia.
Product and Service Highlights
Radiall provides responsive support from design to post-installation, ensuring on-time delivery and offering a warranty on their products. Their product range includes RF coaxial connectors, fiber optic connectors, coaxial and fiber optic cable assemblies, high-frequency microwave components, coaxial switches, multipin rectangular connectors, rack and panel connectors, and antennas for various applications.
Certifications and Environmental Commitment
Radiall is ISO 9001:2008 certified and has achieved AS9100, TS16949, and ISO 14001 certifications. The company is committed to environmental standards, being RoHS and REACH compliant.
Technical Specifications
The document includes detailed specifications for various cable types, including dimensions, impedance, and jacket materials. It covers flexible, semi-rigid, hand-formable, and corrugated cables, with specific details on core type, insulator, screen, and outer dimensions.
Contact Information
Technical information and sales contacts are available on Radiall's website.
See more

Catalog excerpts

RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-1

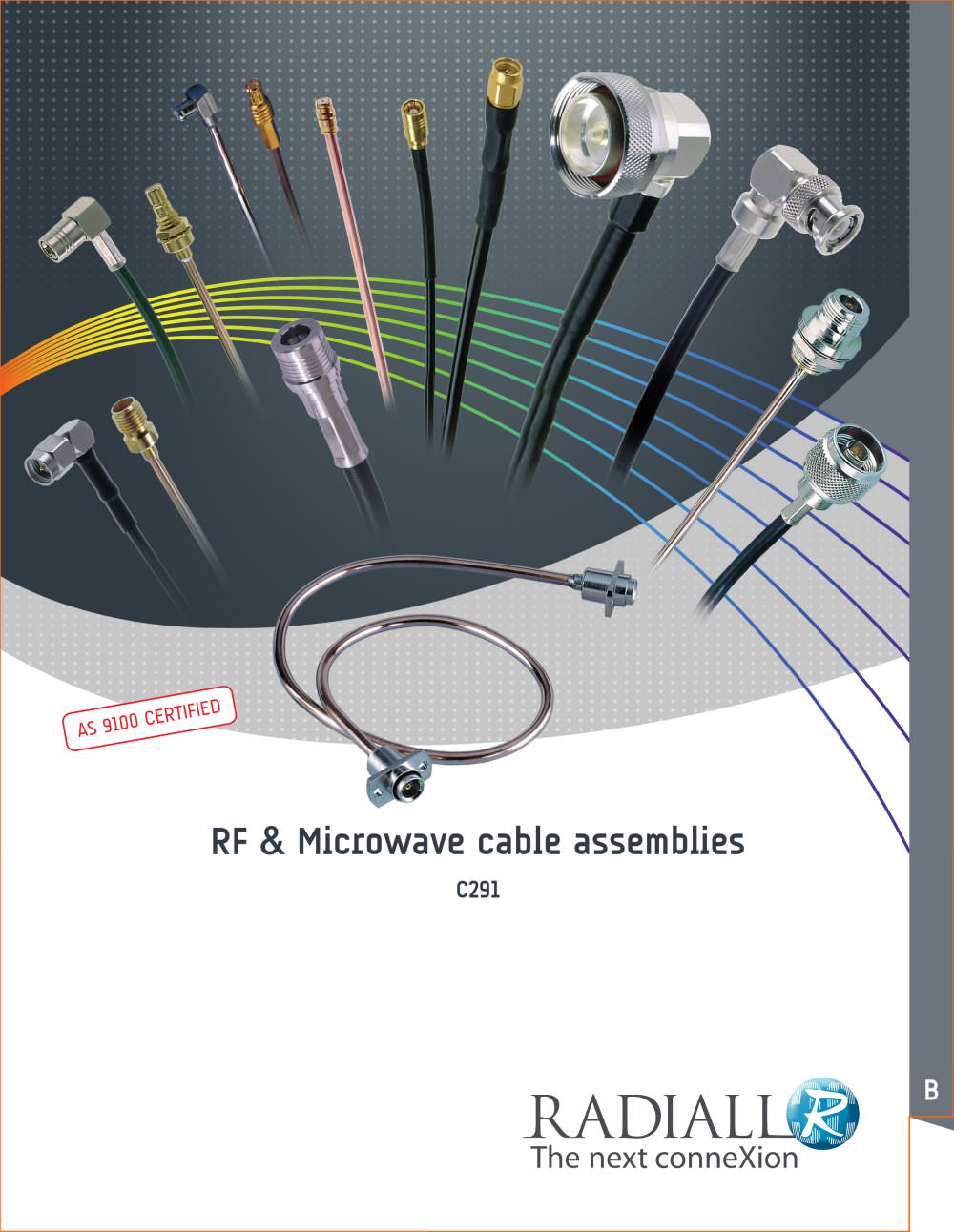

HADIAL The next connexion B

 Open the catalog to page 1
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-4

introduction ■ w QJ Radiall is highly recognized as a leading manufacturer of coaxial connectors, cable and cable assemblies. Radiall has the best manufacturing technology and processes. As a result, we are one of the only manufacturers that have fully mastered foam PTFE wrapping technology. This capability enables us to supply cable assemblies featuring the highest level of performance, stability and repeatability. In addition, Radiall has high precision stripping and cutting machines, soldering and cleaning equipment. Radiall offers five standard ranges of cable for a wide variety of applications...

 Open the catalog to page 4
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-5

specify the right cable for your application RG flexible cables Standardized by MIL-C-17 US government spcification since the 40's, these familiar P/N's are mainly used for military RF and microwave applications. Every electrical, mechanical and environmental performance is controlled and in compliance with the relevant standard. KX cables are equivalent to RG cables under french standards (NF). These cables will be of perfect use with dynamic applications (bending moment) or needing flexibility for ease of connection. ■ w QJ ru RADIALL Eco-friendly low loss cables These high performance custom...

 Open the catalog to page 5
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-8

Catalogue SHF Avril 2009 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:18.00pt "Arial Black", sans-serif; } .font1 { font:8.00pt "Franklin Gothic Medium", sans-serif; } .font2 { font:19.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:9.00pt "Lucida Sans Unicode", sans-serif; } .font4 { font:15.00pt "Times New Roman", serif; } .font5 { font:6.00pt "Trebuchet MS", sans-serif; } .font6 { font:7.00pt "Trebuchet MS", sans-serif; } .font7 { font:8.00pt "Trebuchet MS", sans-serif; } .font8 { font:11.00pt "Trebuchet MS", sans-serif; } .font9 { font:12.00pt...

 Open the catalog to page 8
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-9

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:14.00pt "Georgia", serif; } .font1 { font:8.00pt "Sylfaen", serif; } .font2 { font:4.00pt "Trebuchet MS", sans-serif; } .font3 { font:6.00pt "Trebuchet MS", sans-serif; } .font4 { font:7.00pt "Trebuchet MS", sans-serif; } .font5 { font:9.00pt "Trebuchet MS", sans-serif; } .font6 { font:11.00pt "Trebuchet MS", sans-serif; } .font7 { font:12.00pt "Trebuchet MS", sans-serif; } .font8 { font:15.00pt "Trebuchet MS", sans-serif; } flexible cable 1/75s (75 VMTX type) Flexible Cable 2/50 s (RG178 - KX21A) p/n:c291055076 APPLICATION...

 Open the catalog to page 9
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-10

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:14.00pt "Georgia", serif; } .font2 { font:4.00pt "Trebuchet MS", sans-serif; } .font3 { font:6.00pt "Trebuchet MS", sans-serif; } .font4 { font:7.00pt "Trebuchet MS", sans-serif; } .font5 { font:9.00pt "Trebuchet MS", sans-serif; } .font6 { font:11.00pt "Trebuchet MS", sans-serif; } .font7 { font:12.00pt "Trebuchet MS", sans-serif; } .font8 { font:15.00pt "Trebuchet MS", sans-serif; } flexible cable 2/50 s (non magnetic RG178 type) Flexible Cable 2/50 d (124416 type) p/n:c291140087...

 Open the catalog to page 10
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-11

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Georgia", serif; } .font1 { font:14.00pt "Georgia", serif; } .font2 { font:8.00pt "Sylfaen", serif; } .font3 { font:4.00pt "Trebuchet MS", sans-serif; } .font4 { font:6.00pt "Trebuchet MS", sans-serif; } .font5 { font:7.00pt "Trebuchet MS", sans-serif; } .font6 { font:9.00pt "Trebuchet MS", sans-serif; } .font7 { font:11.00pt "Trebuchet MS", sans-serif; } .font8 { font:12.00pt "Trebuchet MS", sans-serif; } .font9 { font:15.00pt "Trebuchet MS", sans-serif; } flexible cable 2/75 s (296775 type) Flexible Cable...

 Open the catalog to page 11
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-12

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Georgia", serif; } .font2 { font:14.00pt "Georgia", serif; } .font3 { font:8.00pt "Sylfaen", serif; } .font4 { font:4.00pt "Trebuchet MS", sans-serif; } .font5 { font:6.00pt "Trebuchet MS", sans-serif; } .font6 { font:7.00pt "Trebuchet MS", sans-serif; } .font7 { font:9.00pt "Trebuchet MS", sans-serif; } .font8 { font:11.00pt "Trebuchet MS", sans-serif; } .font9 { font:12.00pt "Trebuchet MS", sans-serif; } .font10 { font:15.00pt "Trebuchet MS", sans-serif; } flexible...

 Open the catalog to page 12
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-13

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Georgia", serif; } .font1 { font:14.00pt "Georgia", serif; } .font2 { font:8.00pt "Sylfaen", serif; } .font3 { font:4.00pt "Trebuchet MS", sans-serif; } .font4 { font:6.00pt "Trebuchet MS", sans-serif; } .font5 { font:7.00pt "Trebuchet MS", sans-serif; } .font6 { font:11.00pt "Trebuchet MS", sans-serif; } .font7 { font:12.00pt "Trebuchet MS", sans-serif; } .font8 { font:15.00pt "Trebuchet MS", sans-serif; } Flexible Cable 2.6/50 d (RD316) low loss flexible cable 2.6/50s(ECO316X) p/n:c291171083 APPLICATION...

 Open the catalog to page 13
RF & Microwave Cable Assemblies new edition (RG, ECO, Semi-rigid, Corrugated...)-14

table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:12.00pt "Georgia", serif; } .font2 { font:14.00pt "Georgia", serif; } .font3 { font:8.00pt "Sylfaen", serif; } .font4 { font:2.40pt "Trebuchet MS", sans-serif; } .font5 { font:4.00pt "Trebuchet MS", sans-serif; } .font6 { font:6.00pt "Trebuchet MS", sans-serif; } .font7 { font:7.00pt "Trebuchet MS", sans-serif; } .font8 { font:11.00pt "Trebuchet MS", sans-serif; } .font9 { font:12.00pt "Trebuchet MS", sans-serif; } .font10 { font:15.00pt "Trebuchet MS", sans-serif; } LOW...

 Open the catalog to page 14
