RF Coaxial Connectors Adapters Between Series
46Pages

{{requestButtons}}

Catalog excerpts

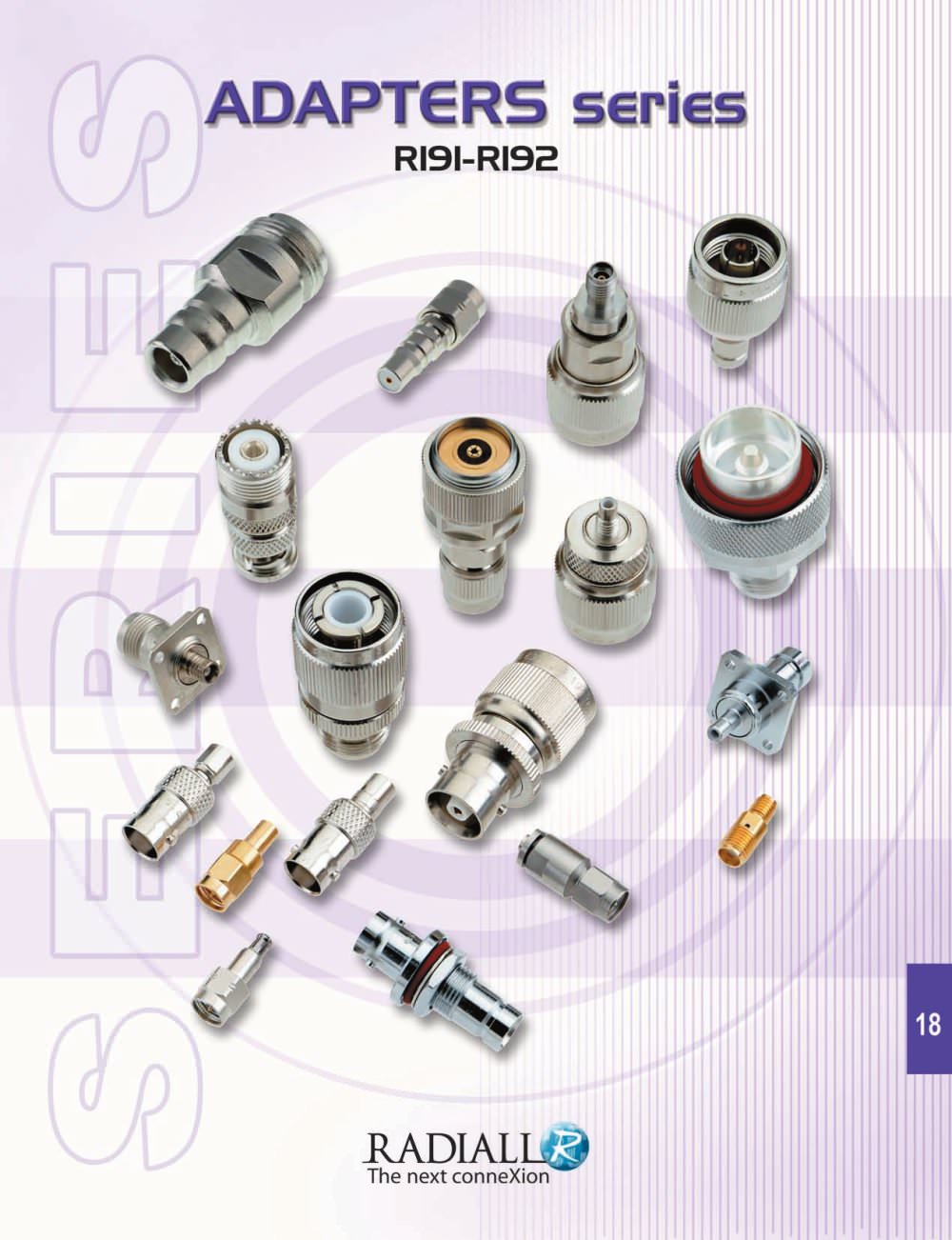

RF Coaxial Connectors Adapters Between Series - 1

Graphique 1.cdr tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:12.00pt "Arial", sans-serif; } .font1 { font:22.00pt "Arial", sans-serif; } .font2 { font:35.00pt "Arial", sans-serif; } .font3 { font:37.00pt "Arial", sans-serif; } .font4 { font:26.00pt "Times New Roman", serif; } ADAPTGRS sries ' U I RI9I-RI92 JIADIALL^ The next connexion

Open the catalog to page 1
RF Coaxial Connectors Adapters Between Series - 2

Graphique 1.cdr tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 2
RF Coaxial Connectors Adapters Between Series - 4

18-4 Adapters PUSH-ON connector concept consists of: - one standard interface that you connect to your test equipment, - one slide-on interface that you connect to the device under test (DUT). This interface connects to screw-on or bayonet connectors. PUSH-ON connectors allow time saving because there is no screw operation. As the PUSH-ON adapter connects with the screw or bayonet interface of the DUT, thanks to its slide-on side, its reduces wear and tear. PUSH-ON adapters offer the same electrical and mechanical properties as standard SMA, BNC, TNC, N, and DIN 7/16 screw-on and bayonet...

Open the catalog to page 4
RF Coaxial Connectors Adapters Between Series - 6

18-6 Adapters RADIALL proprietary interfaces For any further information, please consult us. MC Card • DC - 8 GHz • Microminiature coaxial connectors (Mated height 3 mm) • Snap-on mating / 5000 matings • Additional options: edge-card & switch functions Microclic • DC - 1 GHz • Microminiature coaxial connectors (Mated height 15.1 mm) • Snap-on mating / 500 matings MQ • DC - 4 GHz • Medium coaxial connectors (Mated height 39.35 mm) • Slide-on or Push pull system / 1000 matings MMS • DC - 6 GHz • Microminiatrue coaxial connectors (Mated height 5.2 mm) • Snap-on mating / 50 matings MMT • DC - 8...

Open the catalog to page 6
RF Coaxial Connectors Adapters Between Series - 14

18-14 Adapters Part number Interface Part number Interface R191 417 500• BNC Male push-on - N Male R191 421 500• BNC Female push-on - N Male Part number Interface Part number Interface R161 791 500 N Male push-on - N Female R161 791 530 N Female push-on - N Male Part number Interface Part number Interface R161 792 500• N Male push-on - N Male R191 303 502• SMA Male push-on - BNC Female Part number Interface Part number Interface R191 304 502 SMA Female push-on - BNC Female R191 325 500• SMA Male push-on - N Male • Manufactured upon request 50 Ù Adapters PUSH-ON ADAPTERS

Open the catalog to page 14
RF Coaxial Connectors Adapters Between Series - 15

Adapters 18-15 Part number Interface Part number Interface R191 329 500• SMA Female push-on - N Male R125 791 501 SMA Male push-on - SMA Female Part number Interface Part number Interface R125 792 501 SMA Female push-on - SMA Female R191 405 500• TNC Male push-on - BNC Female Part number Interface Part number Interface R143 713 200• TNC Male - TNC Female push-on R185 791 500 7/16 Male push-on - 7/16 Female Part number Interface R191 977 500 SMA Male - MCX Female push-on • Manufactured upon request 50 Ù Adapters PUSH-ON ADAPTERS

Open the catalog to page 15
RF Coaxial Connectors Adapters Between Series - 16

18-16 Adapters Part number Interface Part number Interface R191 366 071 MC CARD Male - SMA Female R191 366 091 MC CARD Female - SMA Female Part number Interface Part number Interface R191 265 000• MICROCLIC Male - SMB Male R191 267 000• MICROCLIC Female - SMB Male Part number Interface Part number Interface R191 411 000 BNC Male - MQ Female R191 413 000 MQ Male - BNC Female Part number Interface Panel drilling Part number Interface R191 416 000 BNC Female - MQ Female P09 R191 603 000 MQ Male - N Female • Manufactured upon request ADAPTERS FOR 50 Ù Adapters RADIALL PROPRIETARY INTERFACES

Open the catalog to page 16
RF Coaxial Connectors Adapters Between Series - 17

Adapters 18-17 Part number Interface Part number Interface Panel drilling R191 606 000 N Male - MQ Female R191 609 000 MQ Female - N Female P14 Part number Interface Panel drilling Part number Interface Panel drilling R191 225 000• MQ Male - SMB Male P05 R191 227 000• MQ Female - SMB Male P04 Part number Interface Part number Interface R191 630 000• MQ Male - UHF Female R191 632 000• MQ Female - UHF Male Part number Interface Part number Interface R191 975 761 SMA 3.5 Male - MMS Male R191 975 771 SMA 3.5 Male - MMS Female • Manufactured upon request ADAPTERS FOR 50 Ù Adapters RADIALL...

Open the catalog to page 17
RF Coaxial Connectors Adapters Between Series - 18

18-18 Adapters Part number Interface Part number Interface R191 975 781 SMA 3.5 Female - MMS Male R191 975 791 SMA 3.5 Female - MMS Female Part number Interface Part number Interface R191 976 020• SMA Female - R-MCX Female R191 977 020 SMA Male - R-MCX Female Part number Interface Part number Interface R107 009 901 UMP H2 - SMA Female R107 009 902 UMP H2.6 - SMA Female Part number Interface Part number Interface R107 009 903 UMP H3 - SMA Female R191 392 027 SMA Male - MMT Female • Manufactured upon request ADAPTERS FOR 50 Ù Adapters RADIALL PROPRIETARY INTERFACES

Open the catalog to page 18
RF Coaxial Connectors Adapters Between Series - 19

Adapters 18-19 Part number Interface Part number Interface R191 393 001 SMA Female - MMT Male R191 394 027 SMA Female - MMT Female ADAPTERS FOR 50 Ù Adapters RADIALL PROPRIETARY INTERFACES

Open the catalog to page 19
RF Coaxial Connectors Adapters Between Series - 20

18-20 Adapters Part number Interface Part number Interface R191 037 000• PC 7 - Standard BMA Male R191 039 000• PC 7 - Standard BMA Female Part number Interface Part number Interface R191 350 001 Standard BMA Male - Standard SMA Male R191 351 001 Standard SMA Male - Standard BMA Female Part number Interface Part number Interface R191 352 001 Standard BMA Male - Standard SMA Female R191 353 001 Standard BMA Female - Standard SMA Female Part number Interface Panel drilling Part number Interface Panel drilling R191 354 001• Standard BMA Male - Standard SMA Male P07 R191 355 001 Standard BMA...

Open the catalog to page 20
RF Coaxial Connectors Adapters Between Series - 21

Adapters 18-21 Part number Interface Part number Interface R191 324 000 N18 Male - SMA 3.5 Male R191 326 000 N18 Female - SMA 3.5 Male Part number Interface Part number Interface R191 328 000 N18 Male - SMA 3.5 Female R191 330 000 N18 Female - SMA 3.5 Female Part number Interface Panel drilling Part number Interface Panel drilling R191 314 700 Standard SMA Female - TNC 18 Female P08 R191 333 000 N18 Female - SMA 3.5 Female P12 ADAPTERS WITH HIGH FREQUENCY 50 Ù Adapters AND PRECISION LINES CONNECTORS

Open the catalog to page 21
