Introduction
The Radiall 7/16 series connectors are designed for telecommunications, emphasizing reliability and ease of use. They feature an extensive range with optimized design and an upgraded coupling nut for better manual tightening. The series includes EZ FIT connectors for various cable types, allowing quick outdoor installation in three steps.

General Specifications
The connectors are standard coaxial types with screw-on coupling, high power rating, and excellent RF performance. They comply with IEC 169-4, DIN 47223, and CECC 22 190 standards, suitable for mobile communication infrastructure, radio links, and both indoor and outdoor applications.

Interface and Characteristics
The connectors operate from DC to 7.5 GHz and offer two types of coupling nuts for different torque requirements. They are made from high-performance non-magnetic materials with anti-tarnishing finishes.

Electrical and Mechanical Characteristics
With an impedance of 50 Ω, the connectors have a V.S.W.R. of 1.10 max from DC to 3 GHz for straight models, low insertion loss, and high RF leakage resistance. They are durable, with a recommended coupling nut torque of up to 3,500 Ncm.

Environmental Characteristics
The connectors operate in temperatures from -55 °C to +155 °C, resistant to corrosion, vibration, and moisture, with various IP ratings.

Materials and Platings
Primarily made from brass with silver and BBR platings, the insulator is PTFE, and gaskets are silicon rubber.

Connector Types
Includes straight plugs, right-angle plugs, straight jacks, square flange jacks, and bulkhead mount jacks, each with specific part numbers and assembly instructions.

Assembly Instructions
Detailed instructions are provided for different connector types, emphasizing specific tools and techniques for proper installation.

Overview
This document provides detailed specifications, procedures, and assembly instructions for connectors and cable assemblies, focusing on low intermodulation cable assemblies.

Specifications

Connectors available in finishes like Silver + Copper, Silver + Gold, and Silver + BBR.
Intermodulation levels specified at -110 dBm and -125 dBm.
Features include hexagonal coupling nuts and non-magnetic plating.
Moisture resistance rated at IP 68 overmolding.

Procedures

Assembly instructions detail steps like cable stripping, soldering, and crimping.
Specific tools and torque recommendations are listed for each process.

Norms and Recommendations

Use specific stripping tools and torque wrenches for proper assembly.
Emphasizes careful handling to avoid damage and ensure proper soldering.

Key Data from Tables

Part numbers, stripping lengths, tools, and recommended torque values are provided.
Tables guide connector and cable selection based on requirements.

Conclusion
The document is a comprehensive guide for selecting and assembling connectors and cable assemblies, focusing on low intermodulation levels and reliable performance through detailed instructions and specifications.

Catalog excerpts

Graphique 1.cdr tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:22.00pt "Arial", sans-serif; } .font1 { font:37.00pt "Arial", sans-serif; } 7/16 sries RI85

Open the catalog to page 1

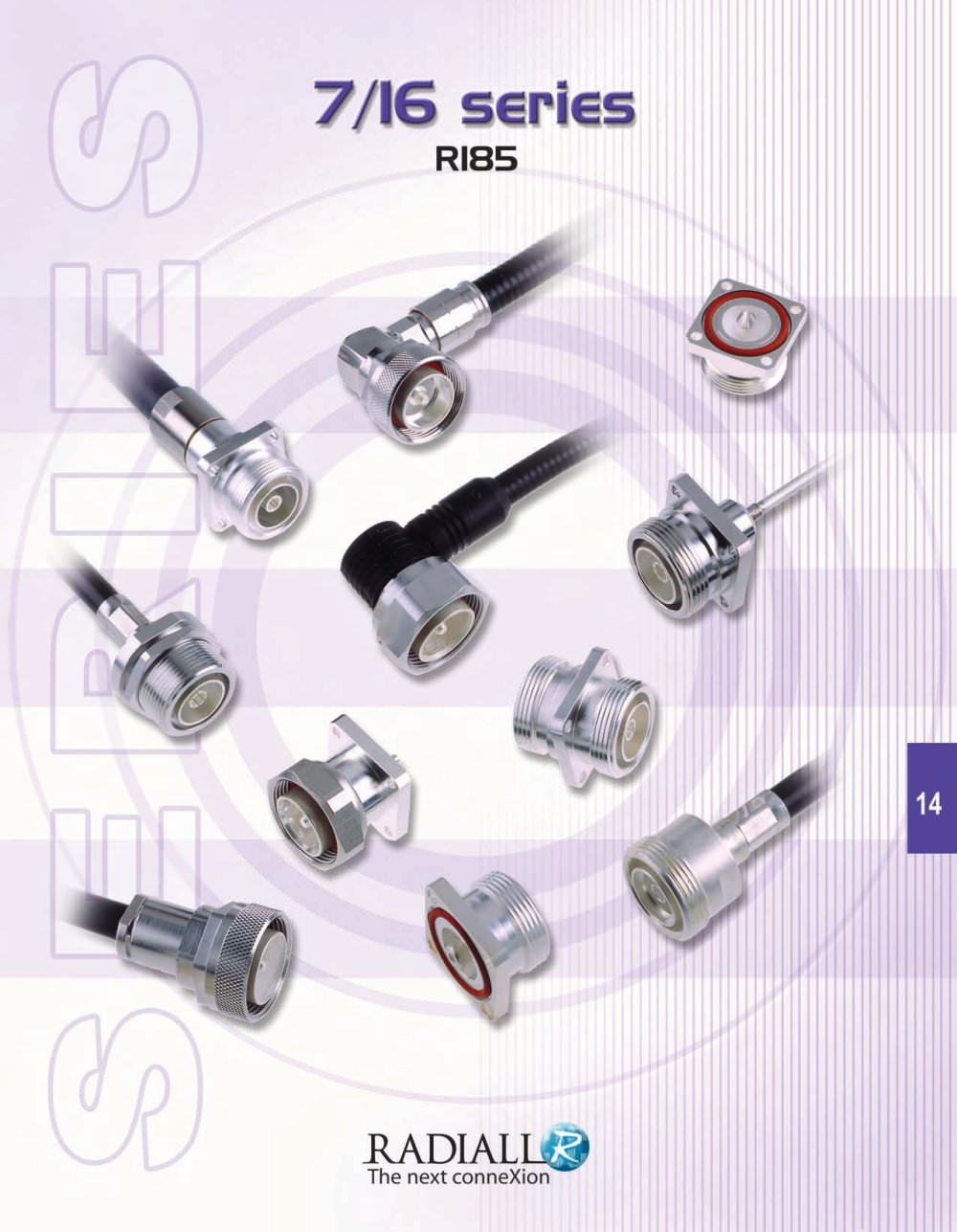

7/16 14-3 The Radiall 7/16 series has been developed using the latest advances in connector design. These connectors are easy-to-use, highly reliable, innovative and are designed to meet the needs of Telecommunications market. The complete series features the following characteristics: • extensive range, with optimized component part design, • upgraded cross-knurled coupling nut allowing better manual tightening. EZ FIT connectors We have developed EZ FIT connectors for 1/4", 3/8", 1/2" superflexible corrugated cables and for 1/2" and 7/8" flexible corrugated cable with 2 piece parts for easy...

Open the catalog to page 3

14-4 7/16 INTRODUCTION 2 types of coupling nut High performance range • Frequency range: DC - 7.5 GHz • 2 types of coupling nut: - cross-knurled and 6 flats 27mm wide coupling nut (3 000 N.cm), - 6 flats coupling nut (32 mm wide), allowing high coupling torque (3 500 N.cm), thanks to torque wrench. • Intermodulation performance: 2 levels - 125 dBm cable assemblies (see page 22-23). - 110 dBm connectors and cable assemblies . RADIALL has developed its intermodulation measurement equipment following the IEC 46 D/292/NP standard proposal. It is aimed at third order IMP measurements through the reflection...

Open the catalog to page 4

7/16 14-5 GENERAL GENERAL • Standard coaxial connectors • Screw-on coupling • High power rating • Excellent RF performance APPLICABLE STANDARDS • IEC 169-4 • DIN 47223 • CECC 22 190 APPLICATIONS • Mobile communication infrastructure networks: combiner, diplexer, filter... • Jumper and feeder cables assemblies • Radio links • Indoor and outdoor applications 50 Ù DC - 7.5 GHz

Open the catalog to page 5

14-8 7/16 ELECTRICAL CHARACTERISTICS MECHANICAL CHARACTERISTICS TEST/CHARACTERISTICS STANDARD REFERENCE VALUES/REMARKS Impedance 50 Ù Frequency range DC - 7.5 GHz V.S.W.R. (typ.) 1 GHz 2.5 GHz 5 GHz 7.5 GHz • Straight models 1.10 max from DC to 3 GHz - 1.20 max from 3 to 7.5 GHz RG213-RG214-RG393 .141” .250” 1/2” superflexible corrugated 3/8” superflexible corrugated 1/4” superflexible corrugated 1.04 1.04 1.03 1.02 1.03 1.01 1.06 1.07 1.05 1.04 1.03 1.02 1.08 1.08 1.11 1.05 1.12 1.09 1.10 1.20 1.13 1.05 1.20 1.17 • Right angle models 1.15 max from DC to 3 GHz RG213-RG214-RG393 1/2” superflexible...

Open the catalog to page 8

7/16 14-9 ENVIRONMENTAL CHARACTERISTICS MATERIALS PLATINGS POWER RANGE Some connectors may feature different performance depending on the application they have been designed for, or according to the applicable cable. TEST/CHARACTERISTICS STANDARD REFERENCE VALUES/REMARKS Temperature range • flexible cables • semi-rigid cables • corrugated cables CECC - 55 °C + 155 °C - 55 °C + 105 °C - 55 °C + 155 °C Thermo cycling test CECC - 55 °C / + 155 °C / 56 days Rapid change of temperature IEC - 55 °C / + 155 °C / 5 cycles Hight temperature test CECC 1000 hours / 155 °C Corrosion salt spray IEC 48 hours...

Open the catalog to page 9

14-10 7/16 STRAIGHT PLUGS, CRIMP TYPE, FOR FLEXIBLE CABLES STRAIGHT PLUG, CLAMP TYPE, FOR FLEXIBLE CABLES Cable group Part number Fig Dimension (mm) A Captive center contact Assembly instructions Finish Note 5/50 S R185 082 027• 1 - yes M05 BBR LMR 200 cable 10/50 S + D R185 074 000 2 12.25 M05 Silver + BBR RG 213 & RG 393 11/50 D R185 077 000 11.4 Cable group Part number Captive center contact Assembly instructions Finish 10 + 11/50 S + D R185 010 000 yes M01 Silver + BBR Fig. 1 Fig. 2 STRAIGHT PLUGS • Manufactured upon request

Open the catalog to page 10

7/16 14-11 STRAIGHT PLUGS EZ FIT TYPE FOR CORRUGATED CABLES STRAIGHT PLUG SOLDER TYPE FOR SEMI RIGID CABLES Cable group Part number Fig. Dimensions (mm) Captive center contact Assembly instructions Finish A B C 1/4” superflexible corrugated R185 030 200 1 47 7.95 4.7 yes M02 Silver + BBR 1/2” superflexible corrugated R185 031 200 49 14 8.8 3/8” superflexible corrugated R185 032 200 11 7.1 1/2” flexible corrugated R185 031 020W 2 - - - M07 7/8” flexible corrugated R185 033 020W 3 M08 Cable group Part number Captive center contact Assembly instructions Finish .250” R185 054 020 yes M06 Copper +...

Open the catalog to page 11

14-12 7/16 RIGHT ANGLE PLUGS CRIMP TYPE FOR FLEXIBLE CABLES RIGHT ANGLE PLUG CLAMP TYPE FOR FLEXIBLE CABLES RIGHT ANGLE PLUGS EZ FIT TYPE FOR CORRUGATED CABLES Cable group Part number Captive center contact Assembly instructions Finish Note 10/50 S R185 174 000 yes M04 Silver + BBR RG 213 11/50 D R185 177 000 Cable group Part number Captive center contact Assembly instructions Finish 10 +11/50 D R185 160 000 yes M03 Silver + BBR Cable group Part number Dimensions (mm) Captive center contact Assembly instructions Finish A B C 1/4” superflexible corrugated R185 164 200 7.95 4.7 57.9 1/2” superflexible...

Open the catalog to page 12

7/16 14-13 STRAIGHT JACKS CRIMP TYPE FOR FLEXIBLE CABLES STRAIGHT JACK CLAMP TYPE FOR FLEXIBLE CABLES STRAIGHT JACKS EZ FIT TYPE FOR CORRUGATED CABLES Cable group Part number Captive center contact Assembly instructions Finish Note 10/50 S + D R185 234 000 yes M05 Silver + BBR RG 213 & RG 393 11/50 S + D R185 237 000 Cable group Part number Captive center contact Assembly instructions Finish 10 + 11/50 D R185 210 000 yes M01 Silver + BBR Cable group Part number Fig. Dimensions (mm) Captive center contact Assembly instructions Finish A B C 1/4” superflexible corrugated R185 215 200 1 49.45 7.95...

Open the catalog to page 13

14-14 7/16 STRAIGHT SQUARE FLANGE JACKS CRIMP TYPE FOR FLEXIBLE CABLES STRAIGHT SQUARE FLANGE JACK CLAMP TYPE FOR FLEXIBLE CABLES Cable group Part number Captive center contact Assembly instructions Panel drilling Finish Note 10/50 S + D R185 274 000 yes M05 P01 Silver+BBR RG 213 & RG 393 11/50 D R185 277 000 Cable group Part number Captive center contact Assembly instructions Panel drilling Finish 10 + 11/50 D R185 260 000 yes M01 P01 Silver + BBR SQUARE FLANGE JACKS

Open the catalog to page 14
