Catalog excerpts
JIADIAL The next connexion

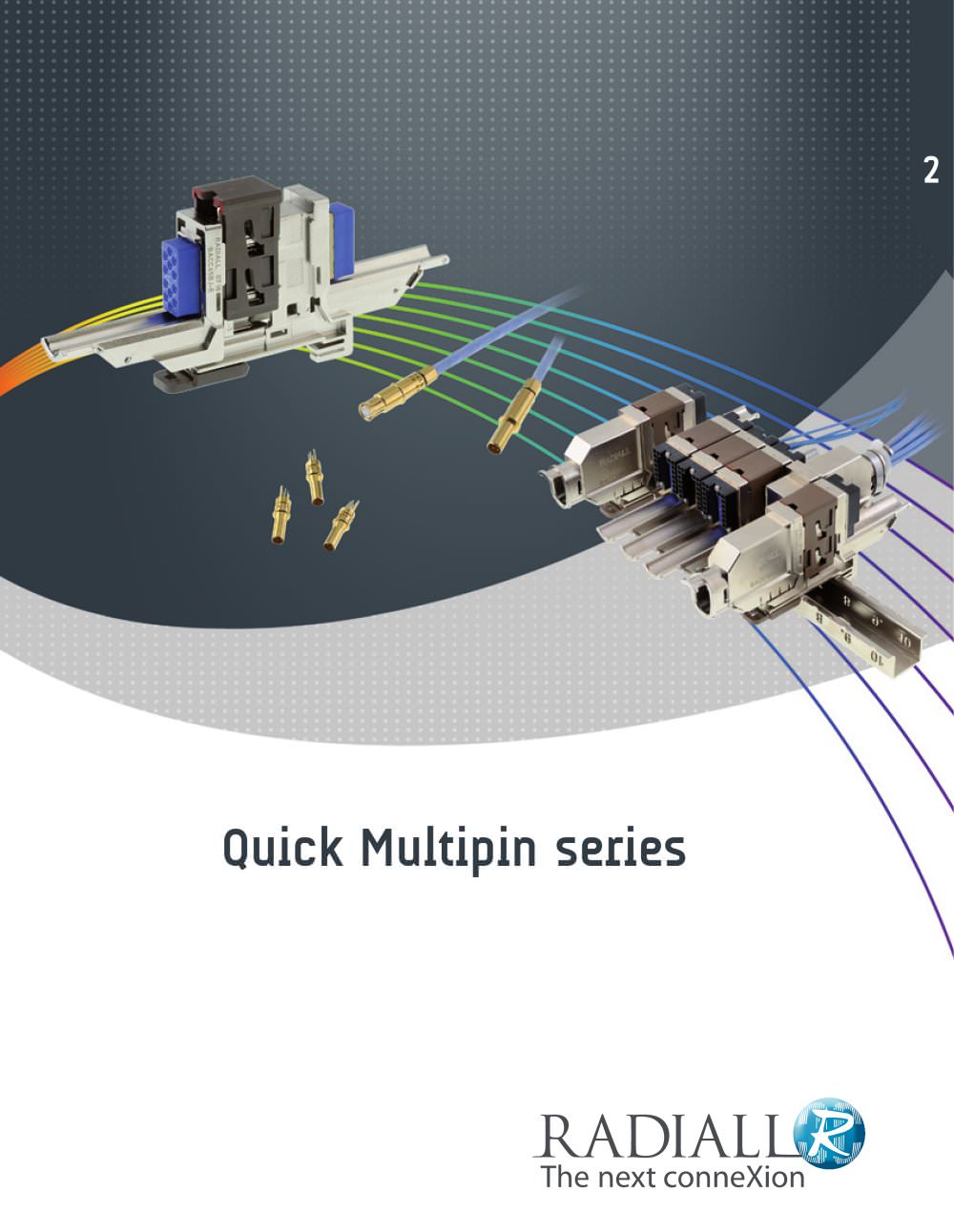

Open the catalog to page 1INTRODUCTION A MODULAR TOOL-LESS INSTALLATION MULTIPIN CONNECTOR Radiall QM series connectors have been designed for use with in-line disconnect applications on commercial airplanes. QM connectors offer outstanding electrical performance and are designed with environmental and mechanical characteristics that provide for long lasting durability needed for the most sever aerospace applications. The QM series offer a wide range of inserts solutions and a large variety of contacts. QM series is designed according to BPS-C-212 technical spcifications and manufactured under US patent App, No....
Open the catalog to page 41/1 QJ APPLICATIONS ■ Interconnect solution for aerospace and harsh environment applications. QJ 1/1 PRODUCT OVERVIEW View of receptacle and plug connectors on rail The receptacle is fixed on the rail (1) Option EMI backshell (2) Polarization Devices Integrated strain relief Option grounding block The plug mates and locks onto the receptacle (1) NOTES: (1) Please refer to our user manual MIIN1700000 to have detailed mounting instructions of the QM on the rail. (2) EMI backshell and ground block are not compatible BJ2-5 www.radiall.com RAD1ALI# The niext connexion
Open the catalog to page 5ELECTRICAL CHARACTERISTICS 1-1 QJ Contacts are per EN3155-76 and EN3155-77. Electrical characteristics conform to SAE AS 39029 (MIL-C-39029 type A). GROUND BLOCK CONTACT f Contact with wire size Max Current Amps l Contact to contact Contact + AWG20 7.5 Contact to mounting surface Contact + AWG20 7.5 J CONTACTS Contact size Wire size Max Current Amps 22 AWG22 AWG24 3 AWG26 2 20 AWG20 7.5 AWG22 5 AWG24 3 16 AWG16 13 AWG18 10 AWG20 7.5 12 AWG12 23 AWG14 17 AWG16 13 oo AWG8 46 AWG10 33 5 AWG8 46 see note 1 AWG10 33 J Note 1: Size 5 contacts are not part of SAE AS 39029 (MIL-C-39029 type A)....
Open the catalog to page 61/1 QJ 1-1QJ 1/1 MECHANICAL AND ENVIRONMENTAL CHARACTERISTICS MECHANICAL CHARACTERISTICS MATING/ UNMATING: up to 50 cycles VIBRATION AND SHOCK Vibration Shock for 5 hours in each of the 3 axis/interruption < 1|js EIA 364-28 (MIL-STD-1344 /Method 2005.1) three shocks in each axis EIA 364-27 (MIL-STD-1344 /Method 2004.1) condition A 4 positions rail = Acceleration 13,8 Grms 0,2G2/Hz from 10 to 400HZ and 0,03G2/hz from 400 to 2000Hz 4 positions rail = Shock amplitude 50g / duration 11ms QM Composite 22 positions rails = Acceleration 6,2 Grms 0.04 g2/Hz from 10 to 400 Hz 0.006 g2/Hz at 2000 Hz...
Open the catalog to page 7HOW TO ORDER EPX INSERT 1-1 QJ 1/1 EPXB E 40 P A S Sries 11&21. Class E: Environmental with rear grommet and interfacial seal for pin inserts Environmental with rear grommet for socket inserts | | H: Insert for pin contacts with a rear grommet and without interfacial seal Insert arrangement Refer to table on page 2-9 for inserts name Contact type p: Pin S: Socket Insert keying- A: insert with keying A Contact Without code: insert delivered without contacts S: all crimped contacts for signal and power are included Interfacial seal Pin insert Rear grommet Keying A Rear grommet Socket insert...
Open the catalog to page 81/1 QJ EPXB INSERTS ARRANGEMENTS The full range of EN4644 insert arrangements is available. All inserts are delivered without contacts. Contacts have to be ordered separately. 1-1 QJ 1/1 % '■''0 0 Dummy insert C3 3 x size 5 contacts P3 3 x size 5 Power 3Q3 3 x size 8 Quadrax 06 6 x size 12 contacts 10Q2 8 x size 20 contacts 2 x size 8 Quadrax 12F6 6 x size 16 Optical LuxCis 6 x size 16 special electrical contacts F12C (high grade thermoplastic) 12 x size 16 Optical LuxCis % 13C1 6 x size 20 contacts 4 x size 15 or 16 contacts 2 x size 12 contacts 1 x size 5 contacts 13P1 6 x size 20...
Open the catalog to page 91/1 QJ HOW TO ORDER QM SHELL QM B P N 00 ■ QJ 1/1 Sries Shell Size- b: Insert size B product Type - p: Plug r: Rceptacle w: Plug with ground block (1) z: Receptacle with ground block (1) Finish- n: Nickel plating polarisation 00: delivered without polarizing keys Delivered with polarizing keys not installed (without code) **: delivered with polarizing keys installed according to code (see table 2 on page 2-14)
Open the catalog to page 11SINGLE SHELL DIMENSIONS
Open the catalog to page 121/1 QJ HOW TO ORDER QM MOUNTING DEVICE QM U 04 A N ■ QJ 1/1 Sries Mounting Device - L: L-Bracket U: Single sided rail H: Double sided rail Number of connector position (Refer to tables on pages 2-17 to 2-19 for code selection) mounting device material A: Aluminium Finish N: Nickel L-Bracket Single sided rail Double sided rail NOTE: (1) Other lengths can be developed on demand, please consult us. 12-13 www.radiall.com rad1all# The niext connexion
Open the catalog to page 13MOUNTING DEVICE DIMENSIONS L-Bracket
Open the catalog to page 14QM RAIL GLOBAL RANGE FOR SINGLE SIDED MOUNTING DEVICE QJ ■ QJ Side view oias4 04S o ia4 9 «. 06S o 1 3 « 4 9 *, 1 08S o 4 3 4 6 «. 7 *«. H« 11 1 U 15S 1 aX 4 « .7 « «. W 11 13 13 M M 11 17 4§ 18 - :.. o .. . -. is -. -: ■■ . .v ■.. ,. : 22 Top view o c 04S ______ -1 Fixing holes c ; c ; ; ; ■:' 5 c ; o Slot 06S 10S OOOOOOO o c o o 08S O O CJ O CJ o o o o o o o 15S o O 18 22 Fixing holes {2-15 www.radiall.com
Open the catalog to page 15MOUNTING DEVICE DIMENSIONS 1-1 QJ 04S, 06S, 08S, 10S & 15S SINGLE SIDED RAIL The first variable (2 digits) after the basic number dsigntes the quantity of connector positions. The second variable d颩signtes options on the rail of alternative slots. Top view Cross section www.radiall.com RADIALLf The next connexion
Open the catalog to page 161/1 QJ MOUNTING DEVICE DIMENSIONS 04S, 06S, 08S, 10S & 15S SINGLE SIDED RAIL Top view 10S QJ \n s--> Only exception to the S option on single sided rail srie: 10S rail has a ground stud I Gl Il IC 1 ight side. Side view 10S I \ 1! i % D* i问-$ m. sa (0^77) RAIL CONFIGURATION Table - For part number with slots and grounds studs per rail configuration. Part number Length mm (inch) A distance between fixing holes mm (inch) Number of slots Number of ground studs Weight g (oz) 04S 199.60 (7.86) 175 (6.86) 4 1 85 (3) 06S 246.40 (9.70) 221 (8.70) 5 1 90 (3.20) 08S 293.10 (11.54) 268 (10.54) 6 1 100...
Open the catalog to page 17MOUNTING DEVICE DIMENSIONS 1-1 QJ 18 SINGLE SIDED RAIL The first variable (2 digits) after the basic number dsigntes the quantity of connector positions. Top view 18 Side view 18 RAIL CONFIGURATION Length mm (inch) Numbe r of slots Number of ground studs V 18 501.40 (19.74 ) 9 1 170 (6) J www.radiall.com RADIALL^ The next connexion
