Fakra-USCAR Series
37Pages

{{requestButtons}}

Catalog excerpts

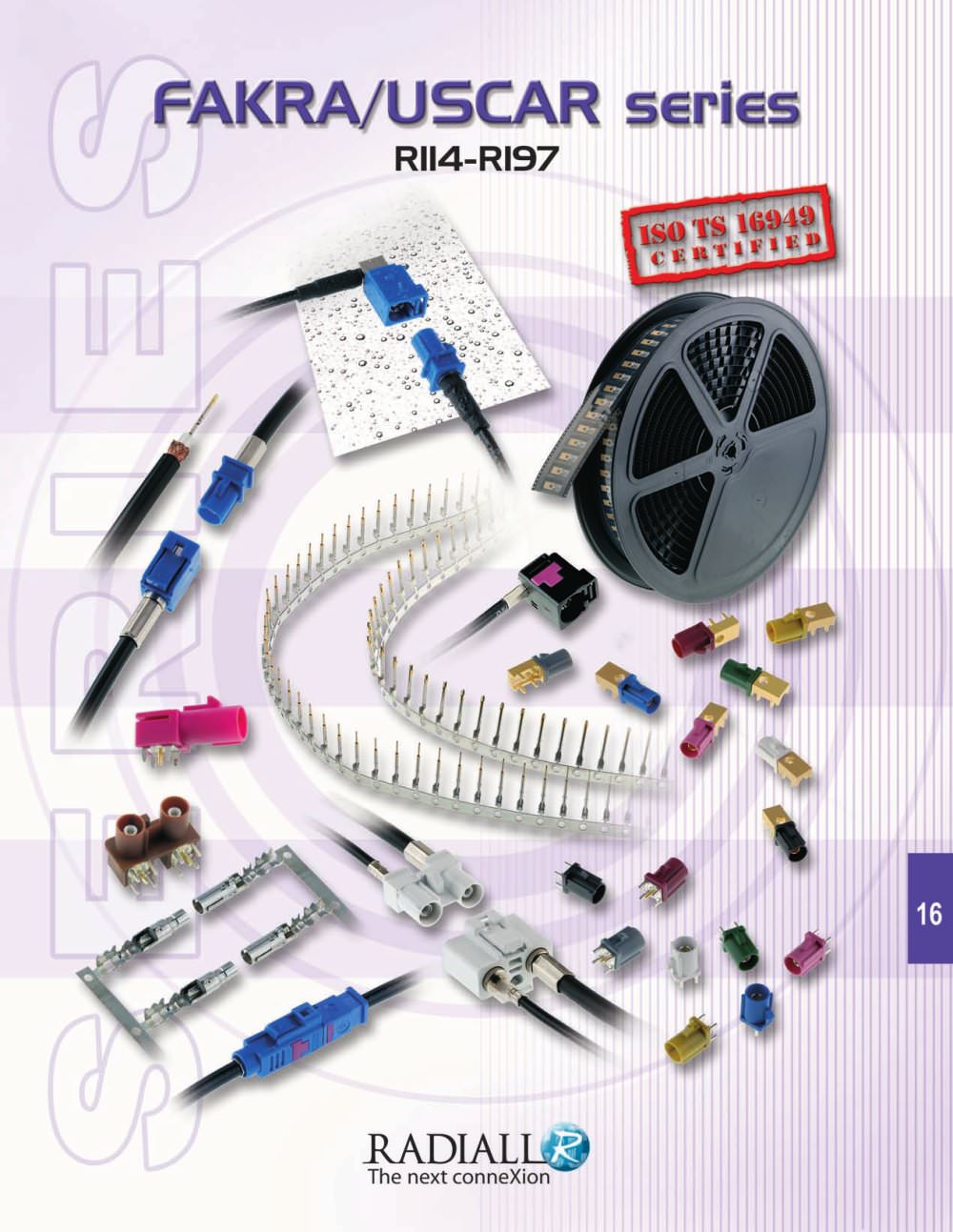

Fakra-USCAR Series - 1

HADIALL^ The next connexion

Open the catalog to page 1
Fakra-USCAR Series - 3

AUTOMOTIVE CONNECTORS introduction Automotive electronic is a key function in any vehicle. The number of cars has quickly increased over the last twenty years, driving up the number of connectors of all types used inside vehicles. In particular for RF connectors, the growth was driven by multimedia and telematics applications such as AM/FM and digital Satellite Radio (SDARS), Cellular phone (GSM), Global Positioning System (GPS), Mobile TV, Vehicular internet Access, keyless entry, tire pressure monitoring, remote toll payment, ... To cope with this new demand, Automotive industry created...

Open the catalog to page 3
Fakra-USCAR Series - 4

AUTOMOTIVE CONNECTORS TABLE OF AVAILABLE CODING (FAKRA/ISO and USCAR) View Coding Color RAL SINC Application in Europe LE WAY Application in USA MULTI WAY Application in USA Δ A Black RAL9005 Radio with phantom supply Radio with phantom supply Not defined B Cream White RAL9001 Radio without phantom supply Radio without phantom supply Not defined C Blue RAL5005 GPS telematics OR navigation GPS GPS/GSM D Claret Violet RAL4004 GSM GSM Not defined 鹠 E Green RAL6002 TV1 TV (UHF) / SDARS terrestial (XM) TV1 (UHF) / TV2 m F Brown RAL8011 TV2 TV (VHF) / SDARS terrestial (Sirius) TV1 (VHF) / TV2 G...

Open the catalog to page 4
Fakra-USCAR Series - 5

AUTOMOTIVE CONNECTORS STAMPING TECHNOLOGY: R3C LATEST INNOVATION! Since1974, Radiall has had a cutting and stamping facility to meet the requirements of its customers. This long experience in high precision mechanical tools for the electronic industry, with highly qualified manpower, allows us to remain on the forefront of the coaxial connector industry. Radiall propose stamped center contact and molded insulator for both FAKRA2 and USCAR connectors series. Going further Radiall is proud to introduce a new innovative connector, the R3C (Radiall Car Crimp Connector), the first one-step...

Open the catalog to page 5
Fakra-USCAR Series - 6

AUTOMOTIVE CONNECTORS interface and characteristics INTERFACE: According to SAE/USCAR and DIN 72594-1 (FAKRA) ELECTRICAL CHARACTERISTICS Impdance 50 Q Frequency range DC - 6 GHz (optimum DC - 4 GHz) V.S.W.R. < 1.3 (for more details, please consult our product technical data sheets at www.radiall.com) Insulation resistance 1 000 MQ Dielectric withstanding voltage 1 000 Vrms (at sea level) Working voltage 335 Vrms (at sea level) MECHANICAL CHARACTERISTICS Durability 25 cycles min (mating/unmating) Mechanical pull test FAKRA 80 N, USCAR 110 N Cable retention force FAKRA 100 N, USCAR 110 N...

Open the catalog to page 6
Fakra-USCAR Series - 7

AUTOMOTIVE CONNECTORS USCAR connectors with housing STRAIGHT FEMALE PLUG CRIMP TYPE, MACHINED CENTER CONTACT Fig. 1 Fig. 2 Cable group Part number Fig. a dia. b dia. c dia. Assembly instructions Packaging 2.6 / 50 / S R197 114 _00(1) 1 0.6 1.7 3.25 M 01 5 / 50 / S R197 114 _01(1) 1 1.05 3.2 5.55 M 02 500(2) 6 / 125 / S R197 114 A15 2 - - - M 03 WATERPROOF STRAIGHT FEMALE PLUG CRIMP TYPE, MACHINED CENTER CONTACT Waterproof protection according to IP67 rating standard. Օ The IP rating characteristics are guaranteed for a mated connection only (waterproof cable jack and plug from Radiall)....

Open the catalog to page 7
Fakra-USCAR Series - 8

AUTOMOTIVE CONNECTORS USCAR connectors with housing STRAIGHT FEMALE PLUG CRIMP TYPE, STAMPED CENTER CONTACT □S ,3 15.3 Fig. 1 Fig. 2 Center contact to be ordered and delivered senaratelv Cable group Part number Fig. b dia. c dia. d e Assembly instructions Packaging P/N of center contact Tape & reel packaging (10000 contacts) 2.6 / 50 / S R197 114 _20(1) (3) 1 1.7 3.25 27.12 10 M06 500(2) 250 01 352 to be ordered separately 5 / 50 / S R197 114 _21(1) (3) 1 3.2 5.55 27.12 10 M04 250 01 362 to be ordered separately 5 / 75 / S R197 114 _23(1) (3) 1 3.2 5.3 29.12 12 250 01 352 to be ordered...

Open the catalog to page 8
Fakra-USCAR Series - 9

AUTOMOTIVE CONNECTORS USCAR connectors with housing STRAIGHT DUPLEX FEMALE PLUG CRIMP TYPE, MACHINED CENTER CONTACT, WITH CLIP ACCOMODATION Cable group Part number Assembly instructions Packaging 2.6 / 50 / S - 5 / 50 / S R197 214 B10 M 01 & M 02 200(2) Other cable types available, please contact us. RIGHT ANGLE FEMALE PLUG ROTATABLE Free cable positioning in all 360° directions - No stress on cable and PCB - Easy to install Cable group Part number Assembly instructions Packaging 2.6 / 50 / S R197 124 _00(1) M09 100(2) (1) To obtain the correct P/N, please replace "_", with the coding...

Open the catalog to page 9
Fakra-USCAR Series - 10

AUTOMOTIVE CONNECTORS USCAR connectors with housing STRAIGHT MALE JACK CRIMP TYPE, MACHINED CENTER CONTACT 37.5 7.5x7.7 ------ III 10 11 4,5 14 1 &,5 3 15 nominal ;40 6 CODINGA Fig. 2 Cable group Part number Fig. a dia. b dia. c dia. Assembly instructions Packaging 2.6 / 50 / S R197 134 _00(1) 1 0.6 1.7 3.25 M 01 500(2) 5 / 50 / S R197 134 _01(1) 1 1.05 3.2 5.55 M 02 6 / 125 / S R197 134 A15 2 - - - M 03 WATERPROOF STRAIGHT MALE JACK CRIMP TYPE, MACHINED CENTER CONTACT Waterproof protection according to IP67 rating standard. Օ The IP rating characteristics are guaranteed for a mated...

Open the catalog to page 10
Fakra-USCAR Series - 11

AUTOMOTIVE CONNECTORS USCAR connectors with housing STRAIGHT MALE JACK CRIMP TYPE, STAMPED CENTER CONTACT Fig. 2 Center contact to be ordered and delivered separatelv Cable group Part number Fig. b dia. c dia. d e Assembly instructions Packaging P/N of center contact Tape & reel packaging (10000 contacts) 2.6 / 50 / S R197 134 _20(1) (3) 1 1.7 3.25 26.86 10 M 06 500<2> 250 56 172 to be ordered separately 5/50 / S R197 134 _21(1) (3) 1 3.2 5.55 26.86 10 M 08 250 56 182 to be ordered separately 5 / 75 / S R197 134 _23(1) (3) 1 3.2 5.3 28.86 12 250 56 172 to be ordered separately 6 / 75 / S...

Open the catalog to page 11
Fakra-USCAR Series - 12

AUTOMOTIVE CONNECTORS USCAR duplex connectors with housing STRAIGHT DUPLEX MALE JACK CRIMP TYPE, MACHINED CENTER CONTACT Cable group Part number Assembly instructions Packaging 2.6 / 50 / S - 5 / 50 / S R197 234 B10 M 01 & M 02 400<2> Other cable types available, please contact us. (2) For unit packaging, add "W" at the end of the P/N. JlADIALb® Automotive@radiall.com 16-13

Open the catalog to page 12
Fakra-USCAR Series - 13

AUTOMOTIVE CONNECTORS RC3 FAKRA & USCAR compilant nnrn FEMALE COAXIAL CONTACT Fig. 1 Fig. 2 Cable group Part number Fig. Packaging 2.6 / 50 / S R299 197 200 1 5/50 / S R299 197 230 2 Tape & reel 5/75 / S R299 197 260 HOUSING Cable group Part number Fig. Packaging 2.6 / 50 / S R197 115 _80 1 100(2) 5 / 50 / S - 5 / 75 / S R197 115 _81 2 (2) For unit packaging, add "W" at the end of the P/N. JIADIAL Automotive@radiall.com 16-14

Open the catalog to page 13
