ECO range Patchcords & Pigtails

ECO range Patchcords & Pigtails

Product catalog summary

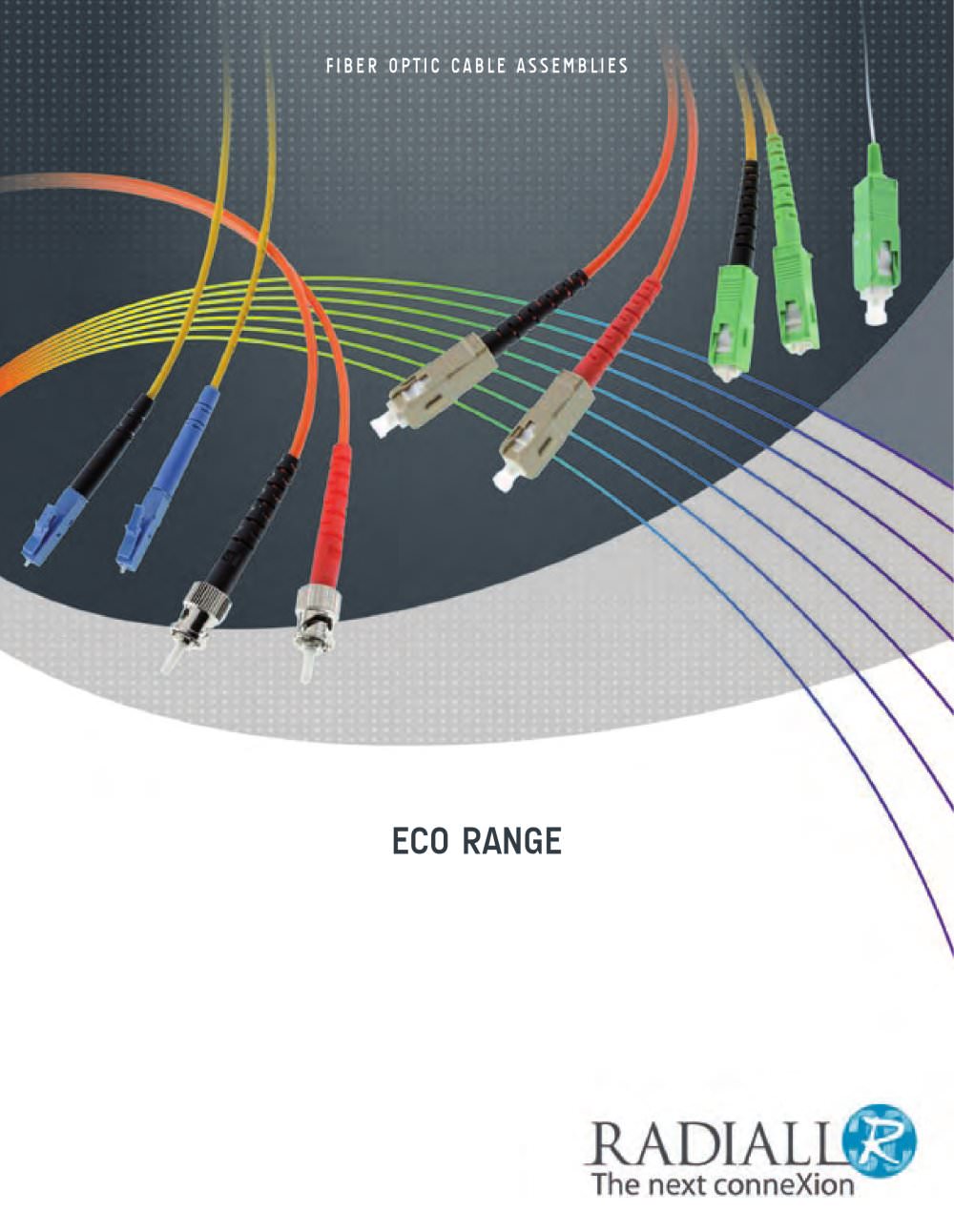

Fiber Optic Cable Assemblies - ECO Range

Pigtails: The ECO Range includes a set of 12 colored pigtails, each 900µm in diameter and 2 meters in length. The color buffer options are Red, Green, Blue, Yellow, White, Grey, Brown, Purple, Aqua, Black, Orange, and Pink. Connectors are available in SCUPC, SCAPC, SC Multimode, LCUPC, LCAPC, and LC Multimode, with specific part numbers for each type.

Adaptors: SC, LC, and ST adaptors are available with different alignment sleeves and color options for plastic shells. Part numbers are provided for simplex and duplex configurations.

Duplex Patchcords: Available in LC/LC, SC/SC, ST/ST, SC/ST, and SC/LC configurations. They support multimode (50/125 and 62.5/125) and singlemode (9/125) fibers, with lengths ranging from 1 to 15 meters.

Simplex Patchcords: Similar configurations as duplex patchcords, supporting both multimode and singlemode fibers, with lengths from 1 to 15 meters.

General Specifications: Connectors adhere to IEC standards (SC: IEC 61754-4, LC: IEC 61754-20, ST: IEC 1754-2). Mechanical endurance is rated at 200 matings for SC and LC, and 500 matings for ST. Cable structures include 2mm/3mm cable diameters and 900µm buffer, with tight and loose configurations.

Performance: Insertion loss is 0.5 dB, with return losses >20 dB for multimode PC, >50 dB for singlemode UPC, and >60 dB for singlemode APC. The temperature range for storage and operation is -20°C to +70°C. Cable retention is specified as 7N for buffer, 68N for 2mm cable, and 100N for 3mm cable.

Identification: Color boots for simplex and duplex configurations are specified for multimode, singlemode UPC, and singlemode APC.

Note: The information is intended as a guide, and specifications may change without prior notification.

Catalog excerpts

2 CD > o a. NORTH AMERICA USA - RADIALL USA Inc. 6825 West Galveston Street Suite 11 CHANDLER, Arizona 85226 Tel.: +1 480 682 9400 - Fax: +1 480 682 9403 E-Mail: [email protected] EUROPE France - RADIAI! Headquarters 101, Rue Ph. Hoffmann 93116 ROSNYsous BOIS [Paris] Tel.: +33 1 49 35 35 35 - Fax: +33 1 48 54 63 63 E-Mail: [email protected] Finland - RADIALL SF P.O. Box 202 - 90101 OULU Tel.:+358 407 522 412 E-Mail: [email protected] Germany - RADIALL GmbH Carl-Zeiss Str. 10 Postfach 200143 D63307 - RODERMARK (Frankfurt) Tel.: +49 60 74 91 07 0 - Fax: +49 60 74 91 07 70 E-Mail: [email protected]...
