Product catalog summary
Introduction
The B-RAD X Series is a next-generation cordless torque platform by RAD Torque, designed for enhanced performance and extensive application coverage. It offers a torque range from 50 to 11,000 ft-lb (70–15,000 Nm), making it suitable for various industrial bolting applications.

Key Features
  • Award-winning cordless torque platform with 7 torque ranges and 9 configurations.
  • Industry-leading battery-powered performance with advanced electronics and bolting technology.
  • Patented RAD gearbox technology, built for industrial environments.
  • Includes ISO 17025 calibration certificate, reaction arm, retaining ring, two 18V batteries, charger, and a weatherproof storage case.

Specifications
The B-RAD X Series includes models with varying torque capacities and dimensions. Key specifications include:
  • Torque range: 50 to 11,000 ft-lb (70–15,000 Nm).
  • Accuracy: ±3.5% to ±4% full scale, with repeatability of ±2%.
  • Drive sizes range from 0.75" to 1.5".
  • Weight varies from 11.1 lbs to 42 lbs (5 kg to 19.3 kg).

B-RAD Xtreme Features
  • Available in 7 torque ranges from 50–11,000 ft-lb (70–15,000 Nm).
  • Torque + Angle functionality for advanced bolting control.
  • Optimized gearboxes for faster torque cycles.
  • Brushless DC motor and high-capacity lithium-ion battery system.
  • Intuitive 4-button interface with high-contrast LED display.
  • NFPA 70 NEC Certified: Class I, Division 2.

Conclusion
The B-RAD Xtreme Series is a comprehensive lineup of cordless industrial torque wrenches, recognized by the Edison Awards and Pro Tool Innovation Awards. It offers enhanced speed, accuracy, and reliability, making it ideal for industrial bolting applications.
See more

Catalog excerpts

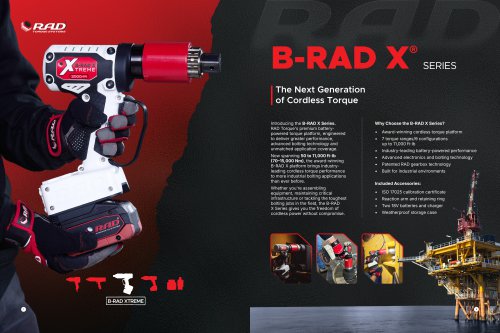

RAD B-RAD X-1

The Next Generation of Cordless Torque Introducing the B-RAD X Series. RAD Torque's premium batterypowered torque platform, engineered to deliver greater performance, advanced bolting technology and unmatched application coverage. Why Choose the B-RAD X Series? Now spanning 50 to 11,000 ft-lb (70–15,000 Nm), the award-winning B-RAD X platform brings industryleading cordless torque performance to more industrial bolting applications than ever before. Whether you're assembling equipment, maintaining critical infrastructure or tackling the toughest bolting jobs in the field, the B-RAD X Series gives you the freedom of cordless power without compromise. Award-winning cordless torque platform 7 torque ranges/9 configurations up to 11,000 ft-lb Industry-leading battery-powered performance Advanced electronics and bolting technology Patented RAD gearbox technology Built for industrial environments Included Accessories: • Reaction arm and retaining ring

 Open the catalog to page 1
RAD B-RAD X-2

B-RAD® XTREME More Torque Ranges. More Speed. More Possibilities. The award-winning B-RAD Xtreme Series has evolved into the most comprehensive cordless industrial torque wrench lineup. With 7 torque ranges, 9 configurations and a torque capacity from 50 to 11,000 ft-lb (70-15,000 Nm), there's a B-RAD Xtreme built for every industrial bolting application. Three new lower torque models expand the series, delivering up to 55% faster torque cycles than our popular B-RAD Select Series, helping operators complete more bolting jobs in less time without compromising accuracy or reliability. The lineup...

 Open the catalog to page 2

All RAD Torque Systems catalogs and technical brochures

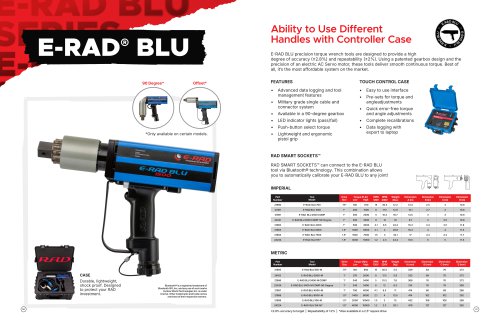

  1. E-RAD BLU

    1  Page

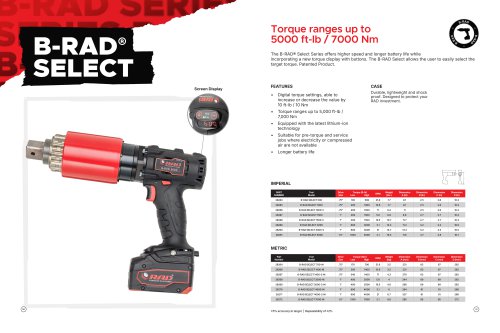

  2. B-RAD Select
