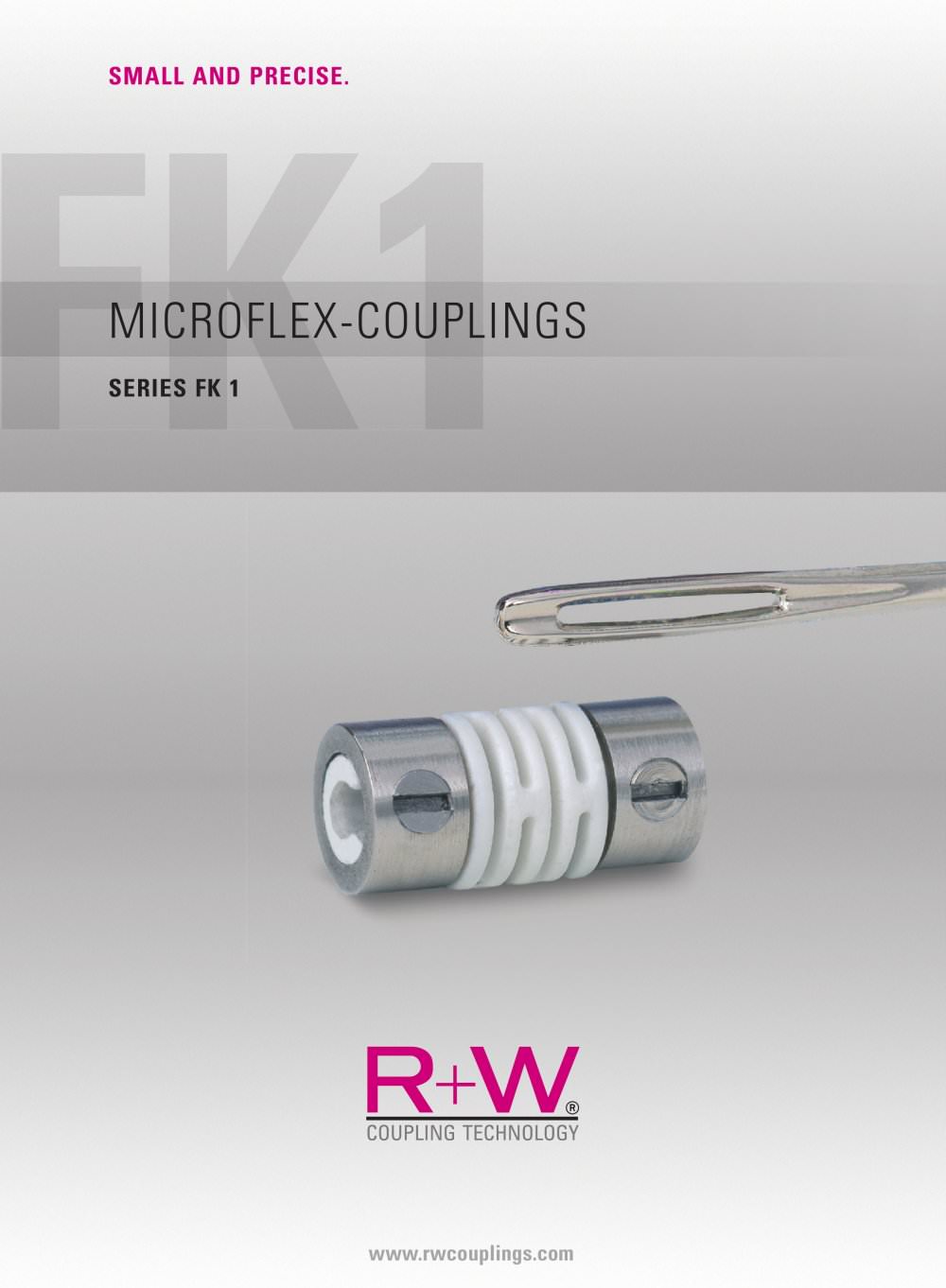

Microflex Coupling FK1

Product catalog summary

Overview: The document provides technical specifications and details for the Microflex-Couplings Model FK1 001/9, designed for precision applications.

Specifications:

Nominal Torque Capacity: 1 Ncm
Maximum Peak Torque Capacity: 2 Ncm
Weight: 0.47 g
Moment of Inertia: 5.39 g/mm²
Torsional Stiffness: 23 Ncm/rad
Maximum Lateral Misalignment: 0.1 mm
Maximum Angular Misalignment: 1.5°
Maximum Axial Misalignment: 0.2 mm

Material and Construction:

Coupling Material: Polyamide
Hub Material: Stainless Steel
Bore Diameter: 1.5 mm
Radial Clamping: Achieved using ISO 4766 M2 x 2 set screw

Performance and Durability:

Temperature Range: -50 to +120°C
Backlash: Absolutely backlash-free
Brief Overloads: Acceptable up to 1.5 times the specified value
Service Life: Maintenance-free if technical limits are not exceeded
Speed Range: Up to 10,000 U/min

Additional Information: The extended diameter can be reduced using a flattened shaft or further reduced to 4.5 mm with an M2x1.5 set screw (additional charge).

Ordering Example: Model FK1 / 001 / 9 / 1.5 / 1.5 / XX

Disclaimer: The information is based on current knowledge and does not exclude the need for substantial testing by the manufacturer. Sales are subject to General Conditions of Sale and Delivery.
