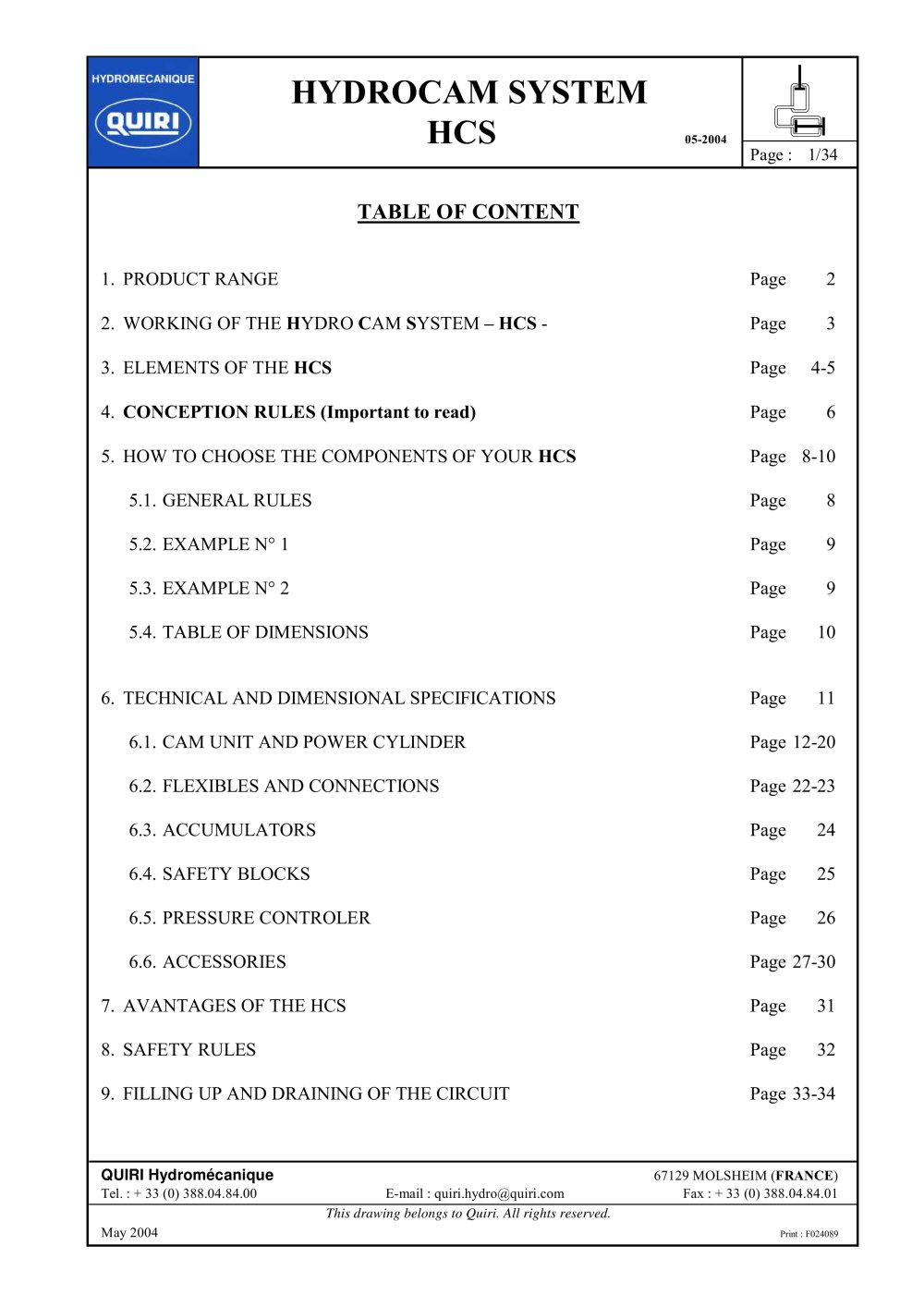

HYDROCAM SYSTEM HCS 05-2004 Page : 1/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 TABLE OF CONTENT 1. PRODUCT RANGE Page 2 2. WORKING OF THE HYDRO CAM SYSTEM – HCS - Page 3 3. ELEMENTS OF THE HCS Page 4-5 4. CONCEPTION RULES (Important to read) Page 6 5. HOW TO CHOOSE THE COMPONENTS OF YOUR HCS Page 8-10 5.1. GENERAL RULES Page 8 5.2. EXAMPLE N° 1 Page 9 5.3. EXAMPLE N° 2 Page 9 5.4. TABLE OF DIMENSIONS Page 10 6. TECHNICAL AND DIMENSIONAL SPECIFICATIONS Page 11 6.1. CAM UNIT AND POWER CYLINDER Page 12-20 6.2. FLEXIBLES AND CONNECTIONS Page 22-23 6.3. ACCUMULATORS Page 24 6.4. SAFETY BLOCKS Page 25 6.5. PRESSURE CONTROLER Page 26 6.6. ACCESSORIES Page 27-30 7. AVANTAGES OF THE HCS Page 31 8. SAFETY RULES Page 32 9. FILLING UP AND DRAINING OF THE CIRCUIT Page 33-34

HYDROCAM SYSTEM HCS 05-2004 Page : 2/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 1. HCS RANGE · CAM UNIT 1 800 daN Stroke = 32 à 50 mm ® POWER UNIT for 1 800 daN Cam unit · CAM UNIT 4 000 daN Stroke = 32 à 98 mm ® POWER UNIT for 4 000 daN Cam unit · CAM UNIT 7 000 daN Stroke = 32 à 98 mm ® POWER UNIT for 7 000 daN Cam unit · CAM UNIT 12 000 daN Stroke = 32 à 98 mm ® POWER UNIT for 12 000 daN Cam unit · CAM UNIT 19 000 daN...

HYDROCAM SYSTEM HCS 05-2004 Page : 3/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 2. HOW THE HCS WORKS When the press-die goes down, the upper part of the die drives in the piston rod of the power cylinder. Oil is pushed through the hose and pushes the cam unit’s piston rod out. When the press goes up, the cam unit’s piston goes back thanks to the two gas springs, and the oil is pushed back to the power cylinder. The...

HYDROCAM SYSTEM HCS 05-2004 Page : 4/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 3. ELEMENTS OF THE HYDRAULIC CAM SYSTEM 3.1. POWER CYLINDER The power cylinder transforms the speed of die into oil flow going to the cam unit. The power cylinder’s capacity is bigger than the cam unit’s one. The additional volume allows compensation due to the oil compression and the dilatation. The oil surplus goes to accumulator. 3.2. CAM...

HYDROCAM SYSTEM HCS 05-2004 Page : 5/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 3.3. ACCUMULATOR It is necessary to use an accumulator with a hydraulic cam unit system. The accumulator gets the surplus of oil coming from the power unit. In case of problem, its capacity allows to by-pass the oil moved by the power unit. Its inflating pressure limits the maximal pressure in the cam unit. Also, it limits the force at the end...

HYDROCAM SYSTEM HCS 05-2004 Page : 6/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 4. CONCEPTION RULES (important to read) · The temperature rise causes oil volume dilatation. At rest, the expansion makes the cam's piston rod go out about 13mm. This fact must be foreseen during design · The stroke of the power unit must be strictly shorter than the guided height of the upper and lower part of the die · The radial forces must...

HYDROCAM SYSTEM HCS 05-2004 Page : 7/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 WORKING DIAGRAMS NO LOAD MOVEMENT UNDER LOAD MOVEMENT Pressure under No load Pressure under load When the system is hot ( oil dilatation ) When the system is hot ( oil dilatation ) Example: for a 98mm stroke cam, fed by a 125mm power unit When the system is hot ( oil dilatation ) When the system is hot ( oil dilatation ) Example for a 98mm...

HYDROCAM SYSTEM HCS 05-2004 Page : 8/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 5. HOW TO CHOOSE THE COMPONENTS OF YOUR HCS 5.1. General rules · The CAM UNIT is defined by the required force and stroke. · The POWER UNIT (diameter + stroke) is defined according to the cam unit force and stroke. · The ACCUMILATOR (volume) is defined according to the power unit’s volume. · The diameter of the hoses is defined according to the...

HYDROCAM SYSTEM HCS 05-2004 Page : 9/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 The required stroke can be defined according to the following draw: 5.2. Example n°1 (see tab. 5.4) Cam unit definition : Needed force : 6 T => Choose a 7 T Cam unit Needed stoke : 35 mm => Choose a cam unit with a stroke of 50mm (useful stroke : 38 mm) The chosen cam unit is 7T force and 50mm stroke TYPE : N07.050 Power cylinder definition (see...

HYDROCAM SYSTEM HCS 05-2004 Page : 11/34 QUIRI Hydromécanique 67129 MOLSHEIM (FRANCE) Tel. : + 33 (0) 388.04.84.00 E-mail : quiri.hydro@quiri.com Fax : + 33 (0) 388.04.84.01 This drawing belongs to Quiri. All rights reserved. May 2004 Print : F024089 6. TECHNICAL AND DIMENSIONAL SPECIFICATIONS 6.1. CAM UNIT AND POWER CYLINDER Page 12-20 1 800 daN CAM UNIT Page 12 ® POWER CYLINDER FOR A 1 800 daN CAM UNIT Page 13 4 000 daN CAM UNIT Page 14 ® POWER CYLINDER FOR A 4 000 daN CAM UNIT Page 15 7 000 daN CAM UNIT Page 16 ® POWER CYLINDER FOR A 7 000 daN CAM UNIT Page 17 12 000 daN CAM UNIT Page 18...
