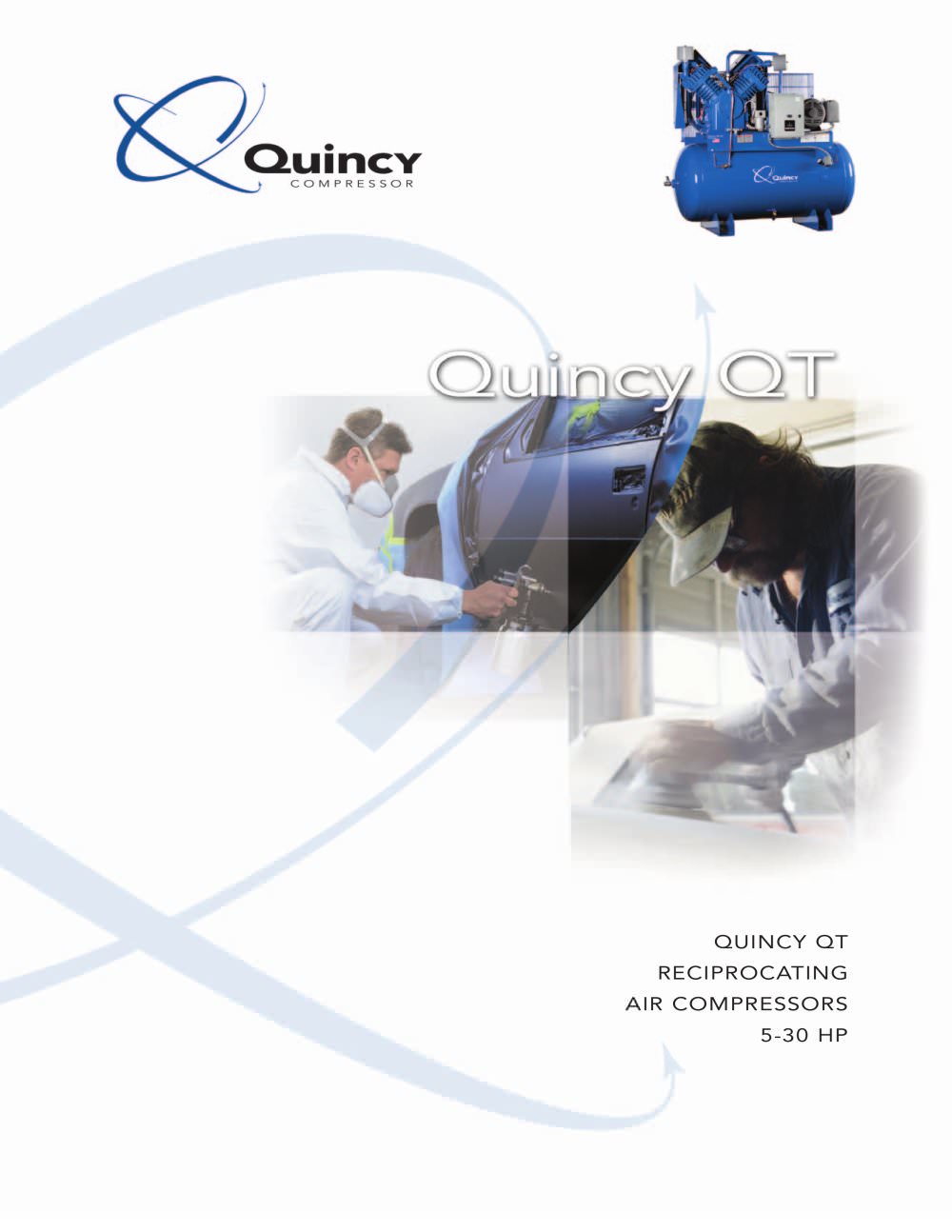

QUINCY QT RECIPROCATING AIR COMPRESSORS 5-30 HP

QUINCY QT RECIPROCATING COMPRESSORS The Quincy QT® has been meticulously designed for maximum productivity and efficiency. This means that every component has been strategically engineered to compress air. A one-piece aluminum head optimizes strength and dissipates heat, while Quincy’s valve design provides the highest volumetric efficiency available. Cast iron construction, two-piece connecting rods, and an available one-year warranty – it all adds up to True Blue ReliabilityTM. And this means you can count on the Quincy QT day in and day out. HIGHLY EFFICIENT You buy a compressor for...

ASME-code interstage safety valves Graphite cylinder and head gaskets for positive sealing integrity High-performance three-piece rings allow less than 5 ppm oil carryover Two-piece connecting rods make service easier Industrial-class bearings insure long operating life Extra capacity oil reservoir assures low oil temperature Balanced counter-weighted crankshaft assures smooth, trouble-free operation High-efficiency fin and tube intercooler reduces interstage air temperature for maximum performance and increased valve life Valve design provides the highest volumetric efficiency in the...

QUINCY QT QuincyCompressor.com | Made in the U.S.A. | Performance You Demand. Reliability You Trust. 6 Model Typical Bore LP Bore HP Stroke No. of Min. ACFM @175 PSIG Max. ACFM @175 PSIG Shipping No. HP Range (Inches) (Inches) (Inches) Cyl. RPM @Min. RPM RPM @Max. RPM Weight QT-54 3-5 2.75 2.00 2.00 V4 550 6.40 1420 16.30 135 QT-5 3-5 4.00 2.25 3.00 2 400 7.00 1060 18.30 140 QT-7.5 5-7.5 4.50 2.50 3.00 2 500 11.20 1080 23.20 150 QT-10 10 5.00 2.75 3.50 2 400 14.45 1000 36.00 220 QT-15 10-15 4.50 2.50 3.50 V4 600 32.10 1150 62.00 365 QT-30 20-30 6.00 3.25 4.00 V4 600 70.00 960 105.90 750 Max...

QUIN-CIP® FORMULATED SPECIFICALLY FOR THE QT® 7 Model HP No. of RPM CFM Piston ACFM Shipping Cyl. Displacement @175 PSIG Weight QT5-5B 5 2 942 21.80 17.20 425 QT7.5-7.5B 7.5 2 1026 28.33 22.60 465 QT10-10B 10 2 968 38.50 35.00 575 QT15-10B 10 4 676 43.50 37.20 800 QT15-15B 15 4 923 59.50 51.00 820 QT5-11HB 11-H 2 1060 23.12 18.70 470 QT5-11KB 11-K 2 1060 23.12 18.70 450 QT7.5-13KB 13-K 2 1060 29.30 23.60 460 QT10-18KB 18-K 2 994 39.43 35.90 585 QT15-18KB 18-K 4 680 43.80 37.40 680 QT5-10YB 10-Y 2 1060 23.12 18.70 490 QT7.5-10YB 10-Y 2 990 27.50 22.00 495 Max. Pressure=175 PSIG K=Kohler...

AIR TREATMENT COMPONENTS QuincyCompressor.com | Made in the U.S.A. | Performance You Demand. Reliability You Trust. 8 Quincy Air Treatment products help you meet production demand cleanly and efficiently. Quincy filters remove solid contamination from the airstream, while Quincy dryers remove moisture allowing clean, cool air to flow directly to your production line. The result is an efficient compressed air system that reduces your energy costs and eliminates clogged pipes and valves that can lead to production line equipment failure. DESIGNED TO MAINTAIN A COMPETITIVE ADVANTAGE QUINCY...

9 • Particulate • Coalescers • Absorbers • Moisture Separators • High temperature design available • High pressure design available • 5 micron to 0.01 micron particulate removed • 5 ppm to 0.003 ppm liquid carryover • 1/4” to 3” NPT aluminum housings • 3” to 12” flanged steel housings • Delta P gauge • Auto drain • Color-coded glass filled nylon end caps • Push-to-fit element design • Low pressure drop/high efficiency • 10-year housing warranty QUINCY FILTERS QUINCY DRAINS ELECTRONIC QUINCY DRAINS PNEUMATIC QMAT - Electronic No Loss Drains • Reliable • Robust • Save energy • Low maintenance...

©2010 Quincy Compressor. All rights reserved. Litho in U.S.A. (QT-20 08/10) COMPRESSED AIR SYSTEMS BEST PRACTICE 701 N. Dobson Avenue | Bay Minette, AL 36507 | Phone 217.222.7700 | Fax 217.222.5232 | Email: info@quincycompressor.com Quincy Compressor is proud to be the official supplier of compressed air to high performance companies like West Coast Choppers and Dale Earnhardt, Inc.. Trust your compressed air needs to the leader in reliability, efficiency and flexibility. Quincy Compressor - undeniably the world’s finest.
