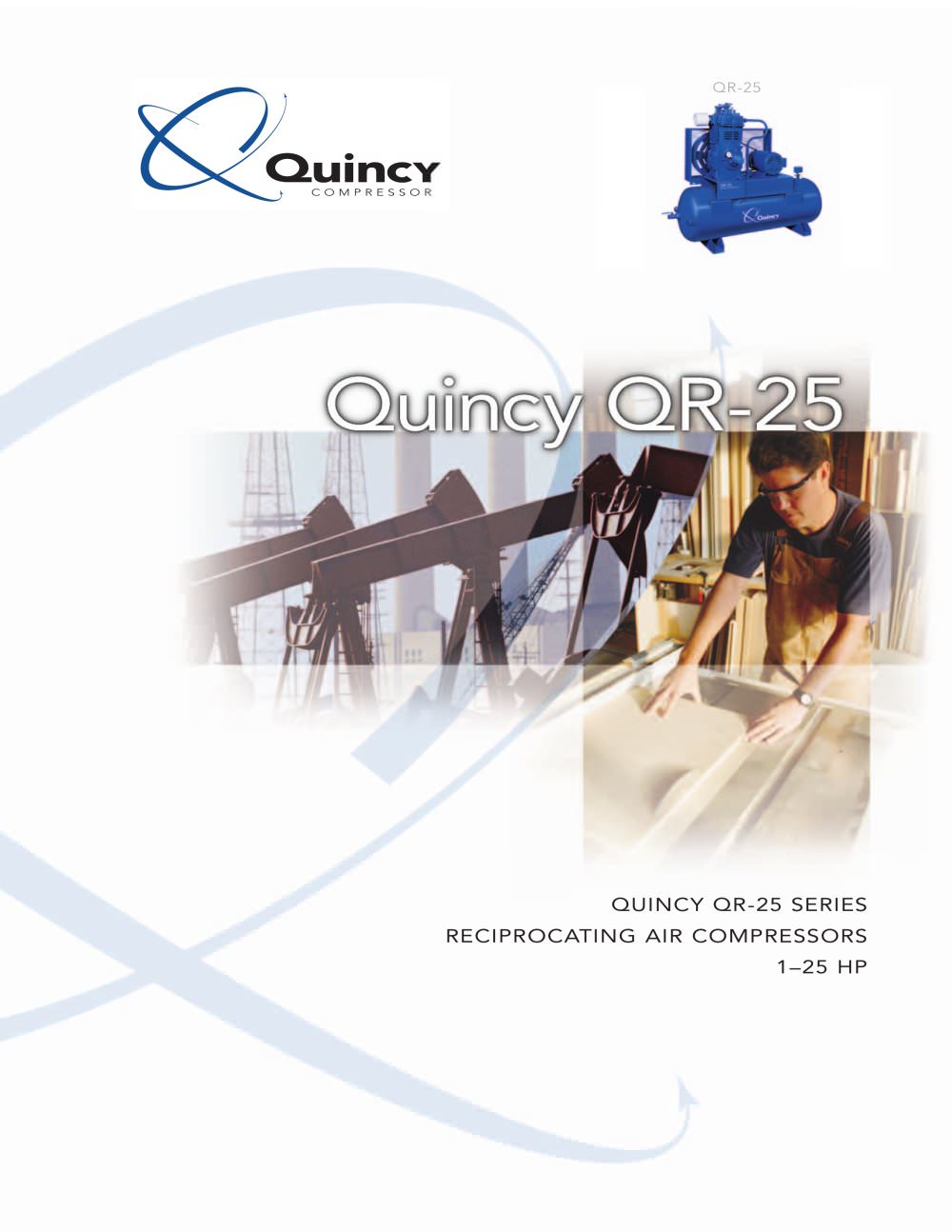

QUINCY QR-25 SERIES RECIPROCATING AIR COMPRESSORS 1–25 HP QR-25 an EnPro Industries companyan EnPro Industries company

2 THE QUINCY QR-25 SERIES INCLUDES 1-25 HP MODELS DELIVERING UP TO 175 PSIG Model F350 • Proven performance measured in decades • Engineered for the lowest cost of ownership • Efficiency for your bottom-line HISTORY MAKES THE QUINCY QR-25 YOUR BEST PURCHASE TODAY The proven performance of the Quincy QR-25 is best examined through decades of delivering compressed air on-demand. There are over two million Quincy QR-25 compressors currently in use, some originally installed over 40 years ago. Decades of reliable operation ensures complete satisfaction and builds confidence day after day, year...

Cast-iron valve seats are lapped for a total seal, eliminating the need for a discharge line check valve. Steel valve discs use a unique low lift design and cast-iron bumpers for increased efficiency and less downtime. Aluminum connecting rods with oil passage for full flow lubrication to piston pins to extend compressor life. Rifle-drilled, counter-weighted, one-piece crankshaft reduces vibration, extends life of bearings and wrist pins. Hydraulic unloader and Safe-Q-Lube protects compressor if oil pressure drops below normal (when loadless starting or dual control is specified). Pressure...

QUINCY QR-25 SERIES PROVEN VALUE FROM THE INSIDE OUT The Quincy QR-25 produces more air using less horsepower by running at slower speeds. The efficiency of running slower also has another benefit – lower operating temperature. Lower temperature means cooler air and less stress on the critical compressor components. Engineered for lasting performance, the Quincy QR-25 has been designed for quick and easy maintenance. For example, valves often require the most maintenance. Not only are Quincy’s heavy-duty, disc-type valves efficient – they are accessible without having to remove the cylinder...

9 QR-25® SERIES DUPLEX, TANK MOUNTED AIR TREATMENT SELECTION GUIDE Model HP *ACFM PSIG Stages Recommended Air Treatment Dryer Prefilter After Filter Aftercooler** FF210 2 6.6 100 1 QPHR 5/10 CSNT10 CPNT10 111579-001 FF210 3 9.6 100 1 QPHR 5/10 CSNT10 CPNT10 111579-001 FF310 4 12.6 175 2 QPHR 15 CSNT20 CPNT20 111579-001 FF325 6 20.8 175 2 QPHT 25 DCNT30 CSNT30 INCLUDED FF325 10 34.8 175 2 QPHT 50 DCNT60 CSNT60 INCLUDED FF340 15 52 175 2 QPHT 50 DCNT60 CSNT60 INCLUDED FF350 20 66.8 175 2 QPHT 75 DCNT60 CSNT60 INCLUDED FF370 30 98.6 175 2 QPHT 100 DCNT125 CSNT125 INCLUDED FF390 40 134 175 2...

10 QuincyCompressor.com | Made in the U.S.A | Performance You Demand. Reliability You Trust. AIR TREATMENT COMPONENTS Quincy Air Treatment products help you meet production demand cleanly and efficiently. Quincy filters remove solid contamination from the airstream, while Quincy dryers remove moisture allowing clean, cool air to flow directly to your production line. The result is an efficient compressed air system that reduces your energy costs and eliminates clogged pipes and valves that can lead to production line equipment failure. DESIGNED TO MAINTAIN A COMPETITIVE ADVANTAGE QUINCY...

11 • Particulate • Coalescers • Absorbers • Moisture Separators • High temperature design available • High pressure design available • 5 micron to 0.01 micron particulate removed • 5 ppm to 0.003 ppm liquid carryover • 1/4” to 3” NPT aluminum housings • 3” to 12” flanged steel housings • Delta P gauge • Auto drain • Color-coded glass filled nylon end caps • Push-to-fit element design • Low pressure drop/high efficiency • 10-year housing warranty QUINCY FILTERS QUINCY DRAINS ELECTRONIC QUINCY DRAINS PNEUMATIC QMAT - Electronic No Loss Drains • Reliable • Robust • Save energy • Low...

©2010 Quincy Compressor. All rights reserved. Printed in U.S.A. (QR25-007 04/10) COMPRESSED AIR SYSTEMS BEST PRACTICE 701 N. Dobson Avenue | Bay Minette, AL 36507 | Phone 217.222.7700 | Fax 217.222.5232 | Email: info@quincycompressor.com Quincy Compressor is proud to be the official supplier of compressed air to high performance companies like West Coast Choppers and Dale Earnhardt, Inc. Trust your compressed air needs to the leader in reliability, efficiency and flexibility. Quincy Compressor: Performance You Demand. Reliability You Trust.
