Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure

Product catalog summary

Overview: The Quincy QGV Series Rotary Screw Air Compressors are designed for high efficiency and reliability, offering a range of 20 to 200 HP. These compressors are engineered to provide precise air delivery from 100% to 15% capacity, ensuring constant pressure and energy efficiency.

Key Features:

Efficiency: The QGV series maximizes efficiency with a turndown capability from 100% to 15% of capacity, maintaining stable pressure and reducing energy consumption.
Pressure Stability: The downstream pressure signal feature provides stable pressure by allowing immediate reaction to pressure changes, minimizing energy waste.
Low Demand Mode: This mode prevents the compressor from running unloaded during low demand periods, saving energy and maintaining system pressure.
Advanced Networking: Standard advanced networking capabilities allow for automatic sequencing and remote monitoring through the optional Web$ync II package.
Microprocessor Controller: A 6-inch color touch screen controller provides continuous monitoring and displays performance metrics, including system pressure and efficiency.
Warranty: Quincy offers a 10-year airend warranty and a 5-year warranty on major components, ensuring long-term reliability.

Technical Specifications: The compressors offer varying capacities at different pressures, with sound levels ranging from 68 to 78 dBA. They are designed for a maximum ambient temperature of 104° - 110°F and include features like a direct drive airend and variable frequency drive assembly.

Case Study: A bottling and packaging facility reduced operating costs by over $44,000 annually and eliminated production shutdowns by implementing the Quincy QGV-150. The system upgrade allowed for precise control of system pressure, reducing the need for inefficient compressors and lowering system pressure by 15 psi.

Conclusion: The Quincy QGV Series compressors are engineered to deliver the lowest total cost of ownership with features that enhance efficiency, reliability, and performance. They are suitable for various industrial applications, offering significant energy savings and operational improvements.

Catalog excerpts

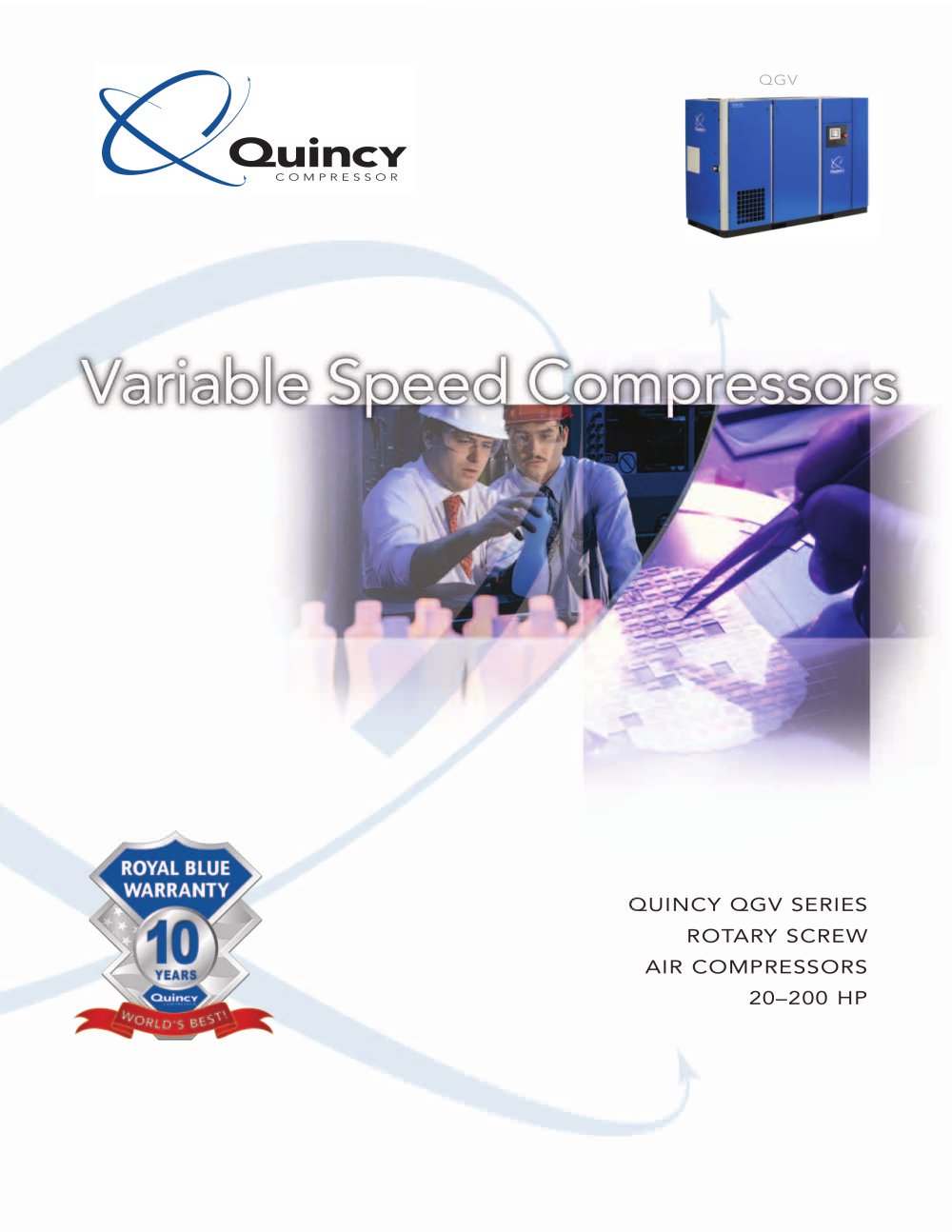

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-1

QUINCY QGV SERIES ROTARY SCREW AIR COMPRESSORS 20–200 HP QGV an EnPro Industries companyan EnPro Industries company

Open the catalog to page 1

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-2

QUINCY QGV 20-200 2 QuincyCompressor.com | Made in the U.S.A. | Performance You Demand. Reliability You Trust. LOWEST TURNDOWN AVAILABLE MAXIMIZES EFFICIENCY From 100% to 15% of capacity, the Quincy QGV delivers the precise amount of air you need – matching any change in air demand to maintain constant pressure. The QGV operates continuously operation from 75 to 150 psig. DOWNSTREAM PRESSURE SIGNAL PROVIDES STABLE PRESSURE System pressure has a major impact on energy consumption, and the QGV is designed to provide the most stable pressure available from a compressor. Quincy’s downstream signal...

Open the catalog to page 2

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-3

3 MICROPROCESSOR CONTROLLER The 6” color touch screen controller provides continuous monitoring and a graphic display of performance and efficiency. Built-in trending software tracks all critical operating parameters and transfers the data via standard communication protocol: • Touch screen display and interface • Speed and Percent Capacity • Horsepower • System Pressure • Low Demand Mode • True PID function control • Remote system signal connection RELIABILITY YOU TRUST QUINCY’S INDUSTRY-LEADING 10-YEAR WARRANTY Everyone says they have the best machine, but how do they support it? Quincy backs...

Open the catalog to page 3

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-4

QUINCY QGV 20-200 4 QuincyCompressor.com | Made in the U.S.A. | Performance You Demand. Reliability You Trust. To compare various machines, use the specific power and performance of each. The Quincy QGV compressor family is engineered to deliver the lowest Total Cost of Ownership (TCO) among compressors in their class. Variable Speed Drive operation, along with Quincy’s efficient airend design, ensures that overall energy consumption is minimized. While other manufacturers recommend compressor overhauls every four or five years, Quincy designs to a higher standard. All QGV airends are designed...

Open the catalog to page 4

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-6

QuincyCompressor.com | Made in the U.S.A. | Performance You Demand. Reliability You Trust. 6 3) THE EQ ANALYSIS: OPERATING COSTS COULD BE REDUCED BY $44,000 / YR AND SHUTDOWNS OF THE PNEUMATIC PACKAGING EQUIPMENT COULD BE ELIMINATED QUINCY QGV 20-200 CASE STUDY: BOTTLING / PACKAGING FACILITY REDUCES OPERATING COSTS BY MORE THAN $44,000 ANNUALLY AND ELIMINATES PRODUCTION SHUTDOWNS 1) THE CHALLENGE: AIR SYSTEM PRESSURE WAS RAISED TO THE LIMITS IN AN EFFORT TO PREVENT FREQUENT PRODUCTION SHUTDOWNS A California bottling and packaging manufacturer believed its air system operating costs could be reduced....

Open the catalog to page 6

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-7

Quincy QGV-150 CompressorQGV-150quincycompressor.com75 hp Compressor75 hp Compressor40 hp CompressorQPNC-2000quincycompressor.comRefrigerated Dryer2,200 gal. StorageCoalescingFilterRemote PressureSignalTo PlantParticulateFilter 7 4) THE SOLUTION: DELIVERING THE MOST PRECISE CONTROL OF SYSTEM PRESSURE AVAILABLE FROM A COMPRESSOR, THE QUINCY QGV-150 PROVED TO BE THE BEST ALTERNATIVE The Quincy QGV Series was engineered exclusively to control system pressure accurately across a broad range of air demand. • True PID functions in the Quincy QGV PLC mean that it is able to adjust the speed of its response...

Open the catalog to page 7

Quincy QGV 20-200 HP Variable Speed Screw Compressor Brochure-8

an EnPro Industries companyan EnPro Industries company 701 North Dobson Avenue | Bay Minette, AL 36507 | Phone 217.222.7700 | Fax 251.937.7182 | Email: [email protected] ©2010 Quincy Compressor. All rights reserved. Printed in the U.S.A. (QGV-008 04/10) COMPRESSED AIR SYSTEMS BEST PRACTICE quincycompressor.comQPNC-500quincycompressor.comQDHT-1000quincycompressor.comAir Quality ClassificationISO 8573.1 WSNBulk LiquidDP1Quincy Rotary ScrewWet Receiver1gal/CFMand/orMistEliminatorDP2Dry Receiver5gal/CFMCSN1 Micron0.1 PPMDP3CPN0.01 Micron0.01 PPMDP5ACN0.003 PPMVapor & OdorsSolidsMicronISOPDPISOPPMISO0.011+38°F40.01110.77380.011+38°F40.003111.881412-40°F20.0119.26340.011-40°F20.003110.371012+50°F60.0127.85380.011+50°F60.003110.068912-40°F20.0119.26340.011-100°F10.001114.2979MoistureOilpsiMbarRefrigerated...

Open the catalog to page 8
