Servo-Drive QDrive

Product catalog summary

Overview: The document describes a modular intelligent servo drive system by Quin Systems Ltd, designed for high-performance motion control applications. It highlights the system's capabilities, specifications, and available options.

Key Features:

Comprehensive Quin control functions including registration, tension control, and cam operations.
Fully digital processing core for high performance.
Compatibility with various position feedback devices such as resolver, SinCos, and EnDat.
High-speed I/O for reference inputs and cam switches.
Graphical tuning and setup software with diagnostic capabilities.
SERVOnet enabled for modular distributed control in multi-axis applications.

Specifications:

Voltage options: 110-230V single-phase, 110-230V and 400V three-phase.
Current ratings: Ranges from 4A to 30A RMS, with peak currents up to 60A.
Includes EMC filter, soft start, brake, DC bus, and cooling fan.
Dimensions and weight vary by model size.
Motor feedback options include Resolver, SinCos, and EnDat.
Digital and analogue I/O options with expansion capabilities via CANopen modules.
Communication interfaces include USB, RS232, RS485/422, and Ethernet.

Additional Features:

Breakout module for I/O with 24V standby terminal.
Power supply options for unit and sensors.
Programming tools provided, including a PTS Toolkit CD.
Remote diagnostics capability via modem.
Operator interface options with graphical interfaces available.
Motion generator for non-linear motion and PTS Scope for diagnostics.

Applications: The servo drive system is suitable for various industrial automation applications requiring precise motion control and diagnostics.

Catalog excerpts

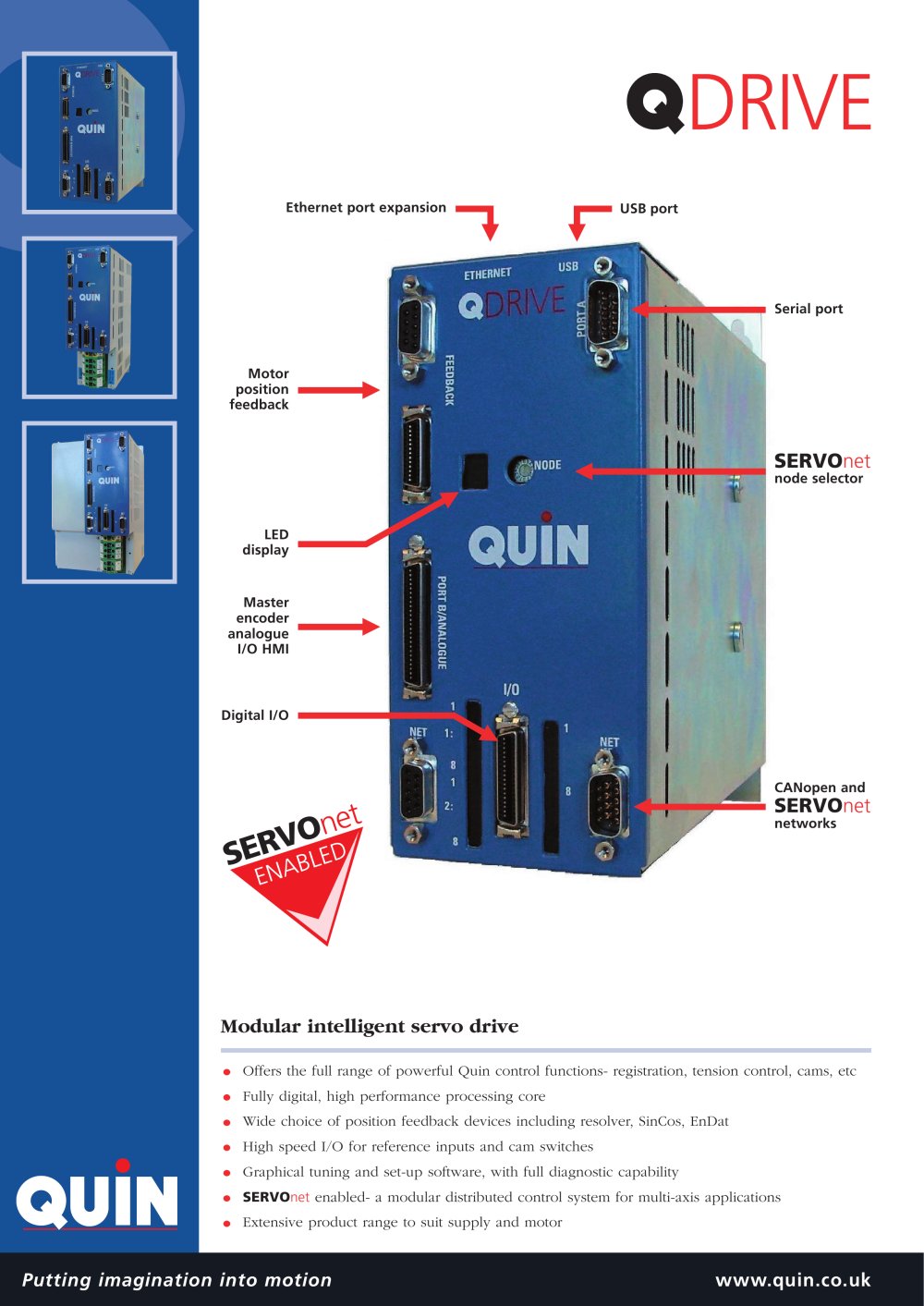

Ethernet port expansionUSBport Serial port SERVO net > node selector LEDdisplay MasterencoderanalogueI/O HMI Digital I/O CANopen and SERVO net > networks Motorpositionfeedback Modular intelligent servo drive > Offers the full range of powerful Quin control functions- registration, tension control, cams, etc Օ > Fully digital, high performance processing core > Wide choice of position feedback devices including resolver, SinCos, EnDat Օ > High speed I/O for reference inputs and cam switches > Graphical tuning and set-up software, with full diagnostic capability Օ > SERVO net enabled- a modular distributed control system for multi-axis applications > Extensive product range to suit supply and motor Putting imagination into motion www.quin.co.uk size="-1">

Open the catalog to page 1

Servo-Drive QDrive

Servo-Drive QDrive
