QManager

QManager
1 / 2 PagesView full catalog

QManager

Product catalog summary
Overview: The document describes a distributed motion control system designed for modular machines, capable of synchronizing up to 240 axes. It offers programming environments through Quin PTS or QLC (IEC 61131-3) and supports various fieldbus expansions for connectivity, including Profibus, Devicenet, and Modbus.
Specifications:
  • Ethernet Interface: RJ45, 10/100 Mbit/sec for programming and diagnostics.
  • CANbus Interface: Supports SERVOnet & Synchrolink for networking, and CANopen for I/O expansion.
  • Fieldbus Options: Includes Profibus, Devicenet, Modbus TCP, Modbus RTU, and Datahighway.
  • Digital Inputs/Outputs: 16 digital inputs and 8 digital outputs, both 24V PNP opto-isolated with LED status indicators.
  • Serial Ports: Two ports, RS232/RS485 selectable.
  • Programming Tools: Quin PTS and QLC (IEC 61131-3 language).
  • Memory: 4 Mb flash memory and 120 kb battery-backed RAM.
  • Dimensions and Weight: 314mm x 66mm x 199mm, 2.0 kg.
  • Power Supply: 24V dc.
Features:
  • Motion Control Functions: Includes registration control, cam generation, software gearbox/lineshaft, differential, ratio control, aligning, clutching, position triggers, tension control, and multiple masters.
  • Diagnostic Capabilities: Local and remote diagnostics are supported.
Options:
  • Quin Logic Controller (QLC): Standard programming via IEC 61131-3.
  • Motion Generator: Graphical generation of non-linear motion.
  • Operator Interface: Quin Operator Panel and simple LCD text terminal available.
  • Power Supply: PS-Q4P provides all dc power requirements.
  • Programming & Diagnostics: PTS Toolkit CD and PTS Scope for diagnostics and monitoring.
  • Remote Diagnostics: Modem for remote diagnostics, 24V dc, DIN rail mounted.
SERVOnet: The system uses SERVOnet for distributed machine control, consisting of QManager, axis modules (QDrives), and SERVOnet cable. QManager acts as the communication hub for factory networks, supporting various standard interfaces.
See more

Catalog excerpts

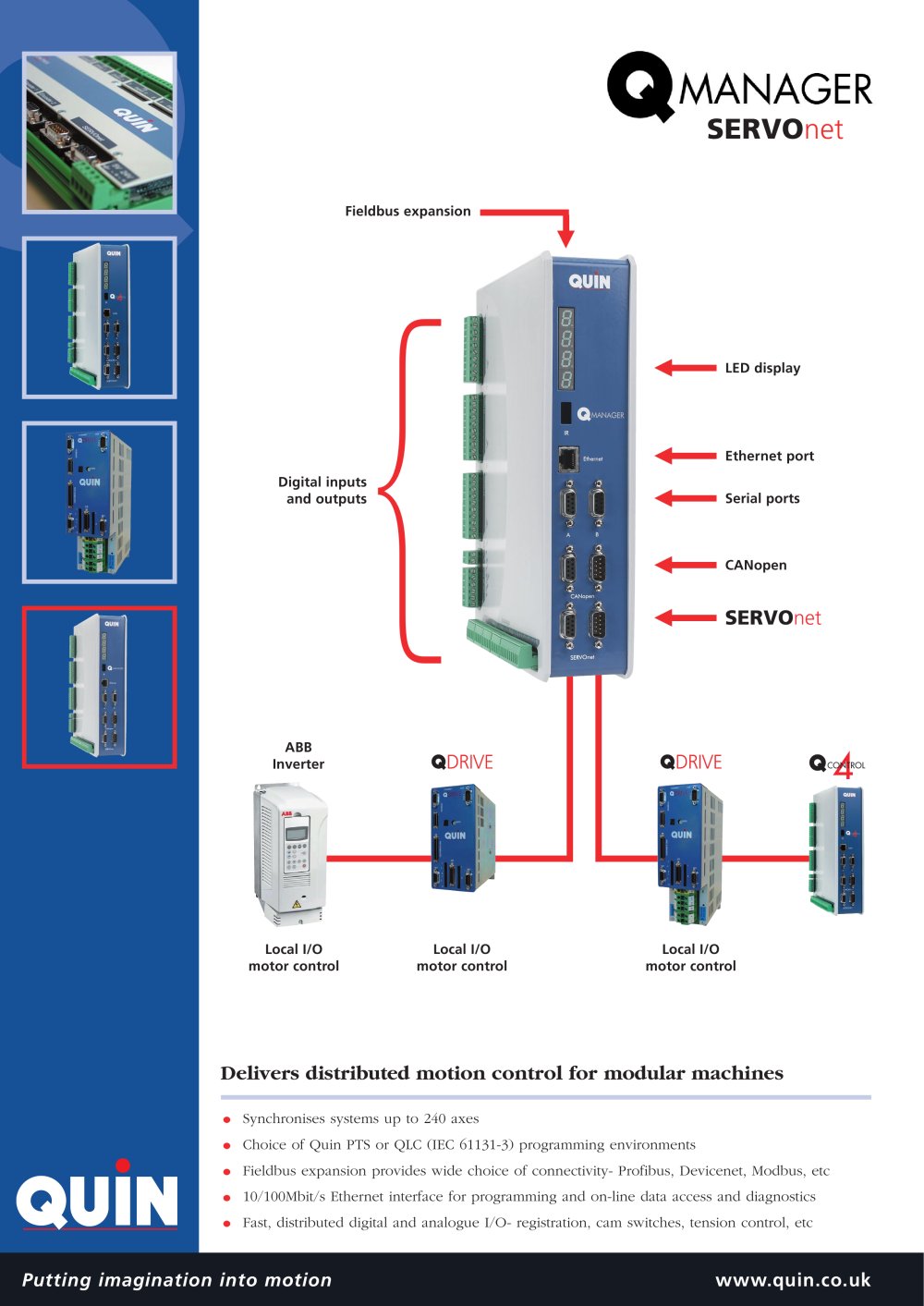

QManager-1

Fieldbus expansion LED display Ethernet port Digital inputs and outputs ABBInverter Local I/O motor controlLocal I/O motor control Serial ports CANopen SERVO net > CONTROL Local I/O motor control Delivers distributed motion control for modular machines > Synchronises systems up to 240 axes Օ > Choice of Quin PTS or QLC (IEC 61131-3) programming environments > Fieldbus expansion provides wide choice of connectivity- Profibus, Devicenet, Modbus, etc Օ > 10/100Mbit/s Ethernet interface for programming and on-line data access and diagnostics > Fast, distributed digital and analogue I/O- registration, cam switches, tension control, etc Putting imagination into motion www.quin.co.uk size="-1">

 Open the catalog to page 1
