QLC Software
Product catalog summary
Overview
Quin Logic Controller (QLC) offers distributed motion functions across SERVOnet drives, ensuring fast response times, reduced network traffic, and efficient PLC logic scan times, regardless of the number of axes involved.
Quin Logic Controller (QLC) offers distributed motion functions across SERVOnet drives, ensuring fast response times, reduced network traffic, and efficient PLC logic scan times, regardless of the number of axes involved.
Specifications
QLC utilizes IEC 61131-3 software alongside Quin's interactive PTS language, making it accessible to engineers familiar with any of the five standard PLC/SPS languages. This integration enhances the capabilities of Quin Qdrives and Qcontrols.
QLC utilizes IEC 61131-3 software alongside Quin's interactive PTS language, making it accessible to engineers familiar with any of the five standard PLC/SPS languages. This integration enhances the capabilities of Quin Qdrives and Qcontrols.
Key Features
- Interactive programming is a core feature of QLC, enabling smooth motion functions such as electronic gear, nonlinear CAM, lineshaft differential, tension control, and more.
- Fast machine development is supported by interactive tools like QDrive set-up for configuration and diagnostics, and PTS Scope for performance monitoring.
Interactive Support Tools
These tools allow engineers to view and interact with motor, drive, or control performance locally or remotely, facilitating fast debugging and system optimization.
These tools allow engineers to view and interact with motor, drive, or control performance locally or remotely, facilitating fast debugging and system optimization.
Distributed I/O
SERVOnet's philosophy includes distributed digital and analogue inputs and outputs (I/O). All QDrives or QControls connected via SERVOnet have built-in I/O accessible locally or across the network. Additional I/O can be added using standard CANopen modules if needed.
SERVOnet's philosophy includes distributed digital and analogue inputs and outputs (I/O). All QDrives or QControls connected via SERVOnet have built-in I/O accessible locally or across the network. Additional I/O can be added using standard CANopen modules if needed.
Disclaimer
This datasheet serves as a guide and does not constitute a warranty of system functionality. Further information is available on Quin's website or through sales representatives.
This datasheet serves as a guide and does not constitute a warranty of system functionality. Further information is available on Quin's website or through sales representatives.
See more
Catalog excerpts

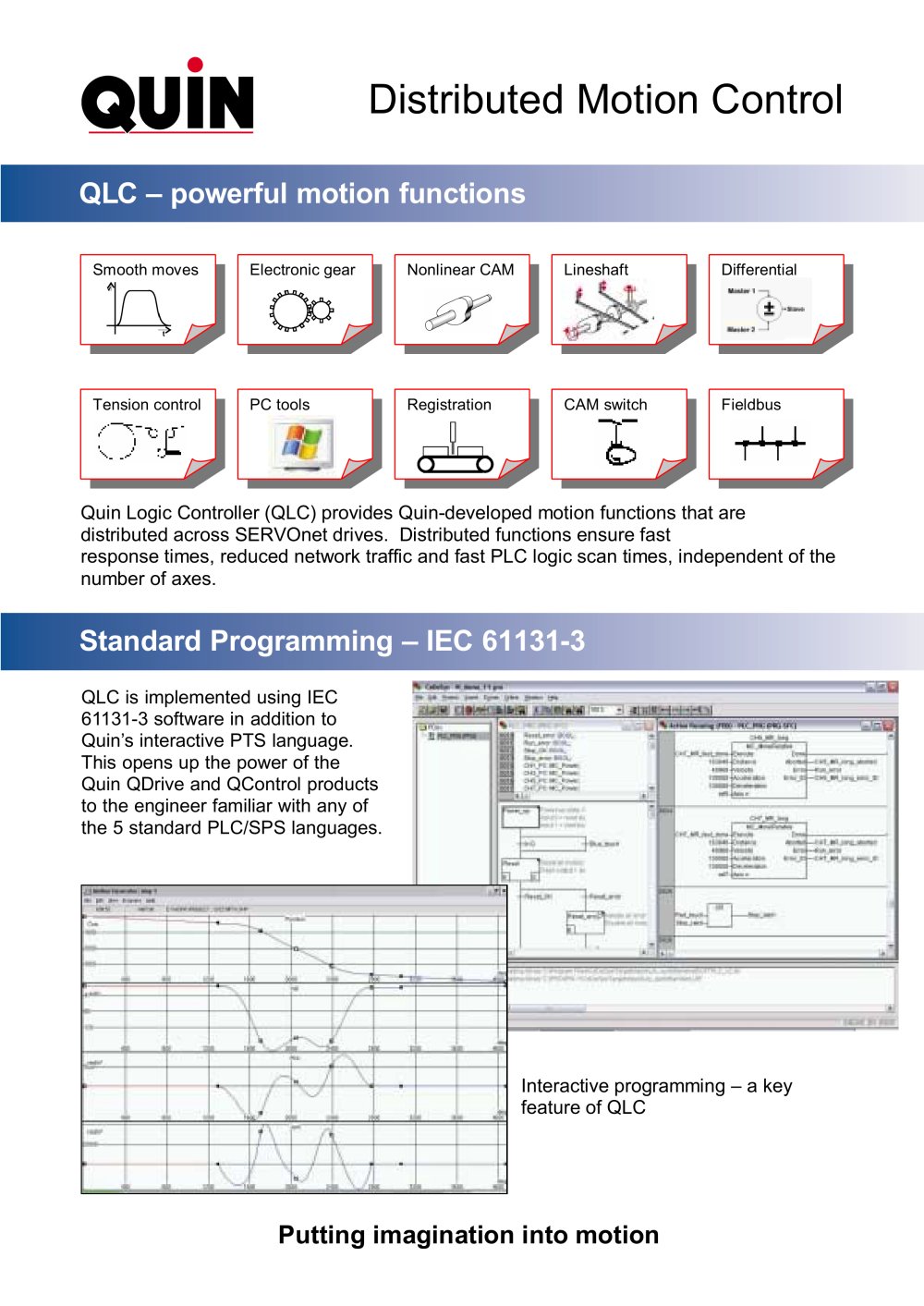

Smooth moves Electronic gear Nonlinear CAM Lineshaft Differential Tension control PC tools Registration CAM switch Fieldbus >
Open the catalog to page 1
This technical datasheet is intended as a guide only and does not form a warranty of functionality for the system. Further information is available at www.quin.co.uk or from your sales representative. Quin Systems Ltd. Oaklands Business Centre Oaklands Park Wokingham BERKS RG41 2FD U.K. +44 (0) 118 977 1077 >
Open the catalog to page 2All Quin Systems catalogs and technical brochures
