Operator Panels
Product catalog summary
Overview: The document provides technical specifications and features of programmable operator panels designed for use with Quin Motion Control Systems. These panels facilitate machine operation through various programmable functions and are integrated with the Quin PTS system.
Main Features:
- Clear and robust operator interfaces with tactile contact switches.
- Fully programmable function keys that are dependent on machine state.
- Configuration menu with password protection and data save system.
- Operation menu allows monitoring or changing settings during machine operation.
- Displays messages from the PTS system, including errors and informational alerts.
- Easy connection and integration with Quin PTS system, supporting remote updates and foreign character sets.
Technical Specifications:
- POP108:
- Dimensions: 232mm x 352mm x 40mm; flush mounting in 315 x 200mm cutout.
- Power Supply: 24V dc.
- Connection: RS485 to PTS with a 3m cable included.
- Display: 4 rows x 40 characters LCD backlit.
- Functionality: 14 programmable keys, navigation keys, numeric keypad, and increment/decrement keys.
- POP208:
- Dimensions: 140mm x 95mm x 40mm; flush mounting in 80 x 125mm cutout.
- Power Supply: 5V dc.
- Connection: RS485 to PTS with a 3m cable included.
- Display: 6 digit LED.
- Functionality: 4 programmable keys, navigation keys, and a function key for toggling.
Compatibility: The panels are compatible with various Quin motion control systems, including QMotion and SERVONET series, with specific compatibility noted for each model.
Programming and Software: Both panels include PC-based graphical configuration software as part of the PTS Toolkit 2000, with menu-based configuration built into the PTS language.
See more
Catalog excerpts

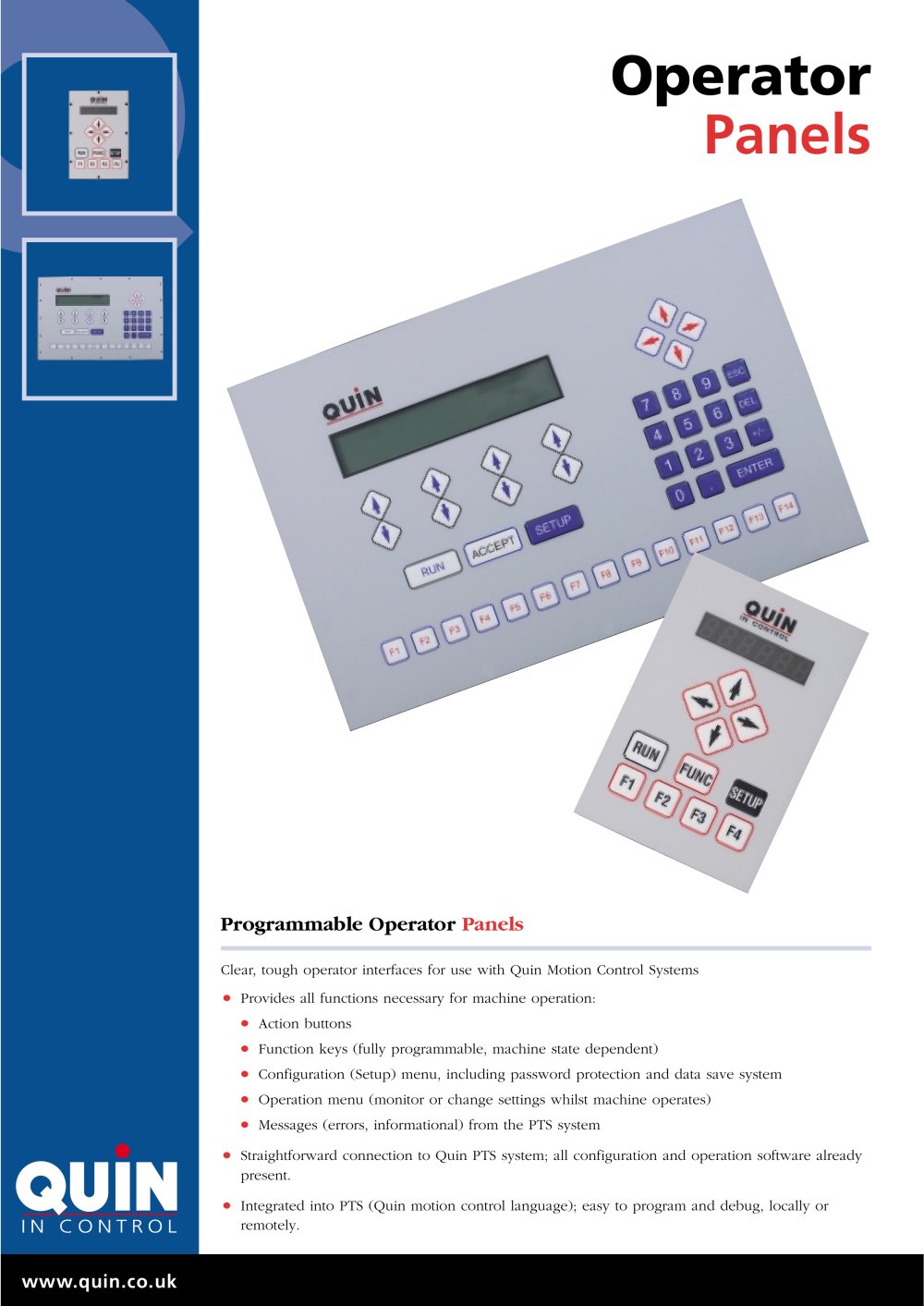

Clear, tough operator interfaces for use with Quin Motion Control Systems > Provides all functions necessary for machine operation: > Function keys (fully programmable, machine state dependent) > Configuration (Setup) menu, including password protection and data save system > Operation menu (monitor or change settings whilst machine operates) > Messages (errors, informational) from the PTS system > Straightforward connection to Quin PTS system; all configuration and operation software alreadypresent. > Integrated into PTS (Quin motion control language); easy to program and debug, locally orremotely. >
