Motion Controller QControl 4

Product catalog summary

Overview: The document describes a high-performance motion controller designed for controlling four axes of motion. It supports various servo drives and offers a choice between Quin PTS or QLC programming environments.

Specifications:

Controls four servo drives with +/- 10V motor control outputs.
Includes four standard encoder inputs with an option for a fifth master encoder.
Supports multiple encoder input types: Squarewave incremental, sinusoidal incremental, Absolute SSI, SinCos (Hiperface), EnDat.
Features a 10/100 Mbit/s Ethernet interface for programming and diagnostics.
Offers CANbus interface with SERVOnet and Synchrolink for networking.
Fieldbus options include Profibus, Devicenet, Modbus TCP, Modbus RTU, Datahighway, Interbus S.
Standard digital inputs and outputs are 24V PNP opto-isolated with LED status indicators.
Analogue inputs are 4 x +/- 10V with 12-bit resolution.
Dimensions: 314mm x 66mm x 199 mm; Weight: 1.5 kg; Power supply: 24V dc.

Programming and Features:

Programming via Quin PTS or QLC (IEC 61131-3).
Motion control functions include registration control, cam generation, software gearbox, differential, ratio control, aligning, clutching, position triggers, tension control, and multiple masters.
Local and remote diagnostic capabilities are available.

Options and Accessories:

Quin Logic Controller (QLC) for standard programming.
Graphical motion generation and operator interface options.
Power Supply PS-Q4P for unit and sensor power requirements.
PTS Toolkit CD for programming and diagnostics, with PTS Scope for enhanced diagnostics.
Remote diagnostics via modem.
Additional components such as motors, gearboxes, drives, cables, encoders, and sensors are available from Quin.

Catalog excerpts

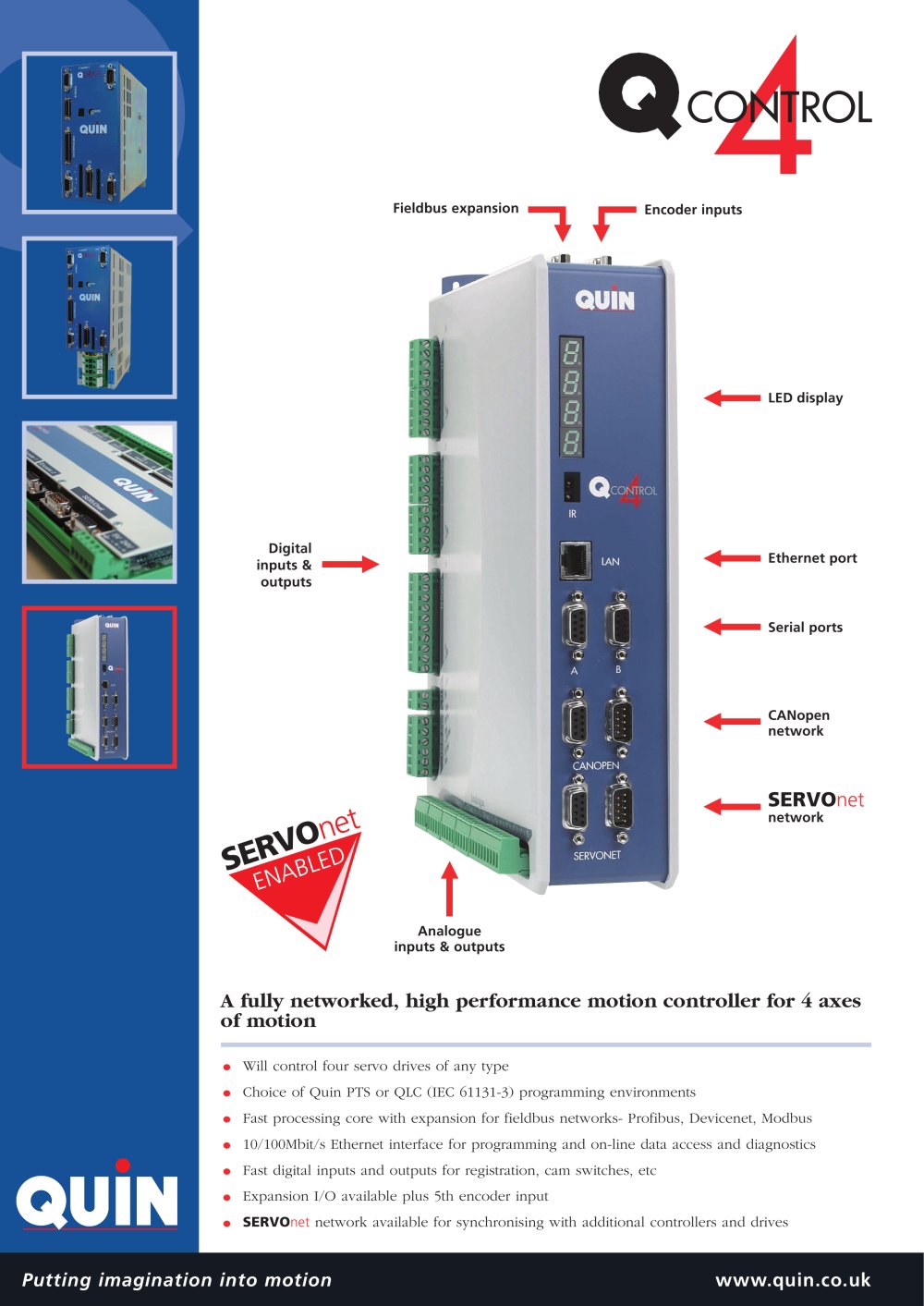

Fieldbus expansionEncoder inputs LEDdisplay Digitalinputs &outputs Ethernet port Serial ports CANopennetwork SERVO net > Analogue inputs & outputs A fully networked, high performance motion controller for 4 axes of motion > Will control four servo drives of any type Օ > Choice of Quin PTS or QLC (IEC 61131-3) programming environments > Fast processing core with expansion for fieldbus networks- Profibus, Devicenet, Modbus Օ > 10/100Mbit/s Ethernet interface for programming and on-line data access and diagnostics > Fast digital inputs and outputs for registration, cam switches, etc Օ > Expansion I/O available plus 5th encoder input > SERVO net network available for synchronising with additional controllers and drives Putting imagination into motion www.quin.co.uk size="-1">

Open the catalog to page 1

Motion Controller QControl 4

Motion Controller QControl 4
