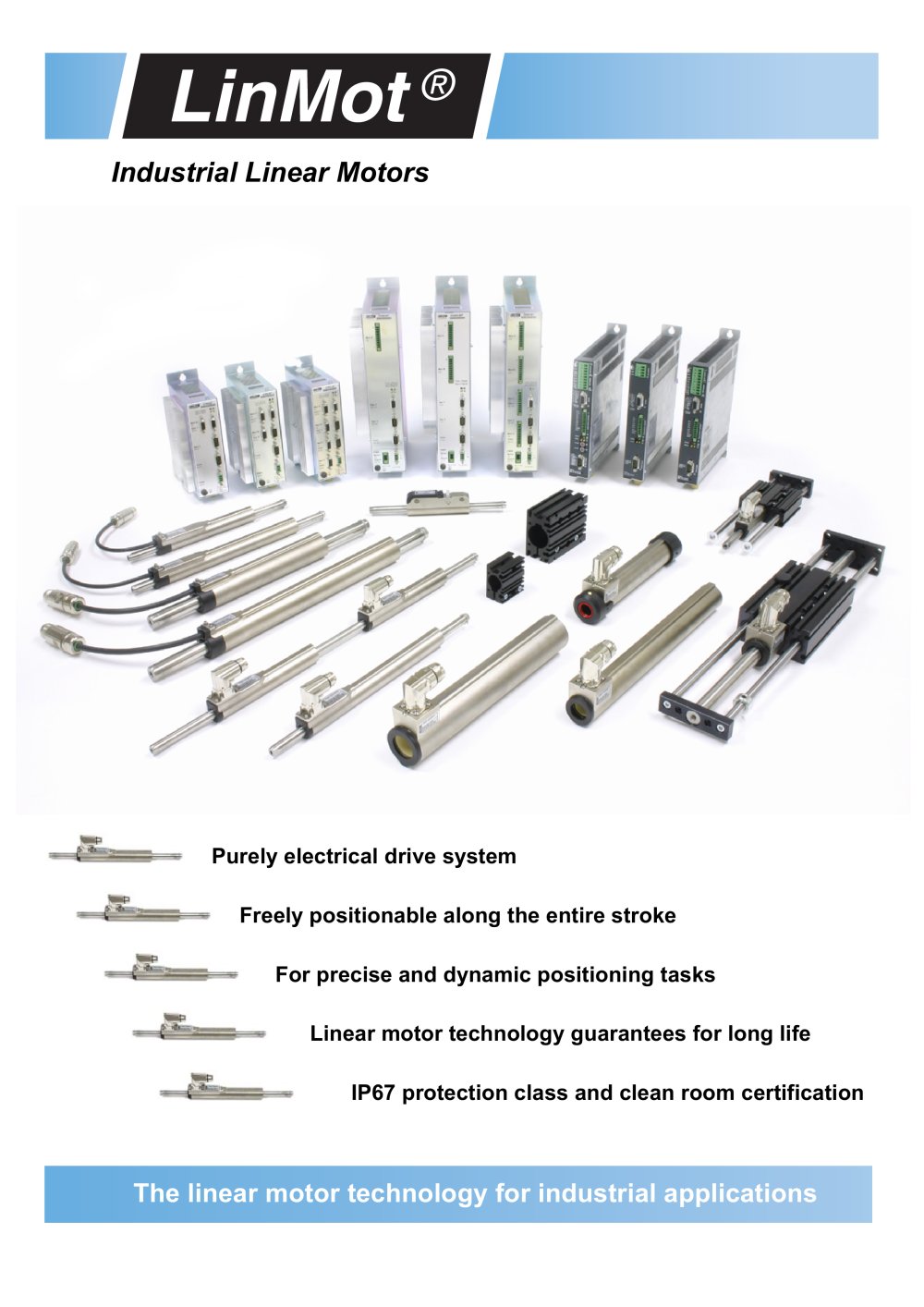

Purely electrical drive system Freely positionable along the entire stroke For precise and dynamic positioning tasks Linear motor technology guarantees for long life IP67 protection class and clean room certification The linear motor technolo gy for industrial applications >

LinMot linear motors are direct electromagnetic drives. The linear motion is generated without wear, with no intermediary mechanical gearboxes, spindles, or belts. The motor is made up of just two parts: the slider and the stator. The slider is made of neodymium magnets, which are mounted in a high-precision stainless steel tube. The stator contains the motor windings, slider bearings, position sensors, temperature monitoring, and microprocessor circuitry with an integrated electronic nameplate. Electronic nameplate and position sensors Stator winding and temperature sensors Slider withneodynium...

HandlingModules Assembly Modules Labeling Units Parallel Kinematics Packa g in g Machines High Speed Palletizing Systems Handling Modules Logistic Systems >

LinMot linear motors are brushless synchronous motors, with integrated position measurement, overload protection, and an electronic nameplate. The linear motion is generated directly by electromagnetic forces, without the wear associated with mechanical elements. A ll motor components are cast in a solid steel tube and are thus optimally protected from damage and contamination (IP67). The motors are available in two versions, with direct cable exit or a rotating angle plug. Motors with Cable Exit Short Motor Motors with Plug Connector Direct Linear Drive Integrated Position Measurement Freely...

LinMot linear guides are compact guide units with integrated ball bushings or sleeve bearings for use with LinMot linear motors. They are used to mount the moving load, to absorb external forces, and as an anti-rotation guide. They provide high- precision guidance and allow dynamic, precise positioning of the load. Bridge Guides B01 Linear Guides H01 Allow high speeds and accelerations Dynamic and precise load positioning Mounting plate with central mounting holes Simple installation and compact form factor Mechanically compatible with pneumatic H-guides Available with ball bushings or sintered...

r Series E1100Servo Controller Series E1000 Servo Controller Series E100 Servo Controlle The wide range of controller products allows rapid implementation of simple applications with two end positions, up to complex, high-precision multi-axis applications with synchronization to a main electronic shaft. Connection to an overarching control system can be made via analog, digital, or serial interfaces, fieldbusses, or ETHERNET. The wide variety of fieldbus interfaces and protocols ensure simple integration with a master PLC, industrial PC, or proprietary controller. Single and multi-axis controllers...

LinMot Designer provides the user with a high-end layout tool for linear motions. A pplications can be analyzed in seconds, and optimized according to various criteria. The integrated database then selects the appropriate LinMot drive components, without the need for extensive manual calculations. > Two different versions of the operating software are available to match the intended users and their requirements. The simple version allows the beginner to implement point-to-point motions very quickly. Experienced users can also configure complex drive tasks very easily using the standard version....

LinMot, Inc. 5750 Townline Road Elkhorn, WI 53121 USA Phone: 877-546-3270 Fax: 800-463-8708 E-Mail: [email protected] Web: www.linmot-usa.com NTI AG Haerdlistrasse 15 CH - 8957 Spreitenbach Switzerland Phone: +41-(0)56-419 91 91 Fax: +41-(0)56-419 91 92 E-Mail: [email protected] Web: www.linmot.com >
