Casepacker

Product catalog summary

Overview: The Casepacker, based on Quin RthetaTM technology, is designed to enhance automation in end-of-line packing with high performance and efficiency.

Key Features:

High-speed case filling capability of up to 100 case layers per minute.
Offers a significant return on investment, typically within 12 months.
User-friendly operation and setup for various products and case sizes.
Compact design suitable for existing hand packing spaces.
Easy integration with any case erector and low maintenance requirements.

Technical Specifications:

Case Sizes: Minimum 250 x 100 x 75mm, Maximum 700 x 350 x 500mm.
Speed: Capable of 100 cycles per minute, typically 70 cycles per minute with a 2kg load, depending on product and configuration.
Repeatability: 0.5mm precision.
Case Feeding: Servo-driven system.
Product Infeed: Configurable for in-line right or left-handed, or at right angles.
Product Collation: Integrated accumulating product conveyor with automatic buffer control.
Power Supply: 400V 3-phase, with a 230V 3-phase option.
End-effector: Quick-change vacuum head adaptable to product, with other types available.
Dimensions: Typically 1815 x 1150 x 2300mm, variable with application.
Construction: Stainless steel frame with interlocked guarding.

Additional Features:

Quick and easy size changes.
Touch-screen display for ease of use.
Rtheta pick and place head for efficient operation.
Scalable design to meet varying production needs.
Servo-driven case feeding system for reliable performance.
Stainless steel finish for durability and hygiene.

Contact Information: Quin Systems Ltd, Oaklands Business Centre, Oaklands Park, Wokingham, Berkshire RG41 2FD. Tel: 0118 977 1077, Fax: 0118 977 6728, Email: [email protected]

Catalog excerpts

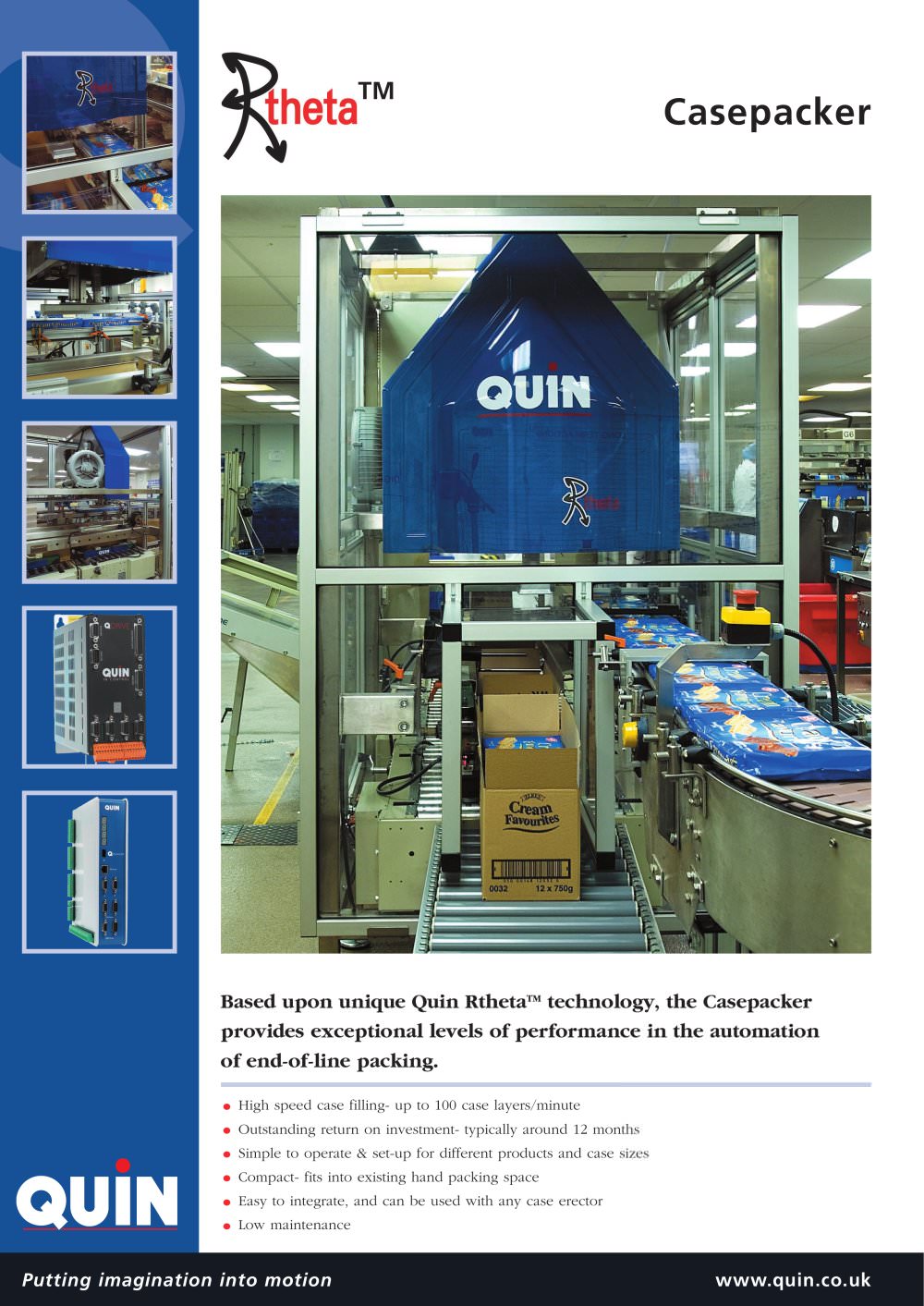

Based upon unique Quin Rtheta > TM technology, the Casepackerprovides exceptional levels of performance in the automation of end-of-line packing. > High speed case filling- up to 100 case layers/minute Օ > Outstanding return on investment- typically around 12 months > Simple to operate & set-up for different products and case sizes Օ > Compact- fits into existing hand packing space > Easy to integrate, and can be used with any case erector Օ > Low maintenance Putting imagination into motion www.quin.co.uk size="-1">
